Portkeys LH5P II 5.5″ 2000nits HDMI DSLR & Mirrorless Field Camera Monitor Sony

The Portkeys LH5P II is the most affordable 5.5-inch Wide Color Gamut on-camera monitor with a stunning maximum brightness of 2,000nits and wired/wireless camera control capabilities. This HDMI-only monitor features a rugged and durable design entirely made of aluminum with a complete set of professional monitoring tools ready for your next creative adventures.

Key features:

• 5.5-inch, 10-bit (8+2 FRC) panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio.
• Daylight-viewable with a maximum brightness of 2,000nits.
• 1 x HDMI input, 1 x HDMI output, 1 x 3.5mm audio output.
• Maximum input resolution: 4K DCI at 24p or 4K UHD at 30p.
• Professional monitoring tools: Waveform, Peaking, ARRI False Color.
• 3D LUT monitoring. Monitoring tools can be set before or after the 3D LUT.
• Wireless camera control for most Sony and Blackmagic Design cameras.
• Touchscreen autofocus (wireless) feature is available for select Sony cameras, including the FX3, and A7S III.
• Wired camera control for Sony, Canon, Panasonic, BMD, and ZCAM E2.
• TILTA Nucleus N/M wireless follow focus wired control.
• Built-in Sony NP-F style battery plate.
• 5-pin 7.4V-24V power input for external power .
• Lightweight and rugged aluminum housing: only 285g/10.05oz.

Entry-Level On-Camera Monitor Design

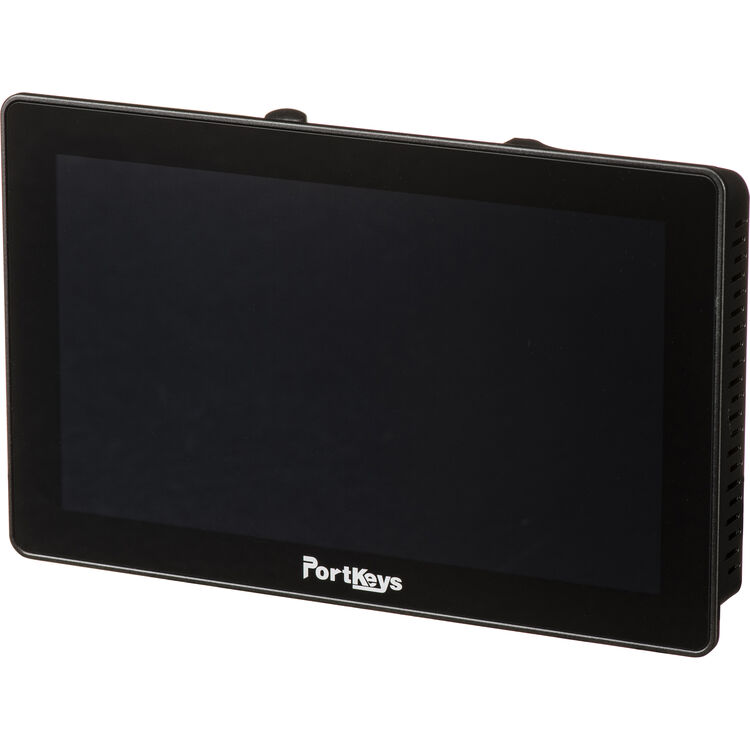

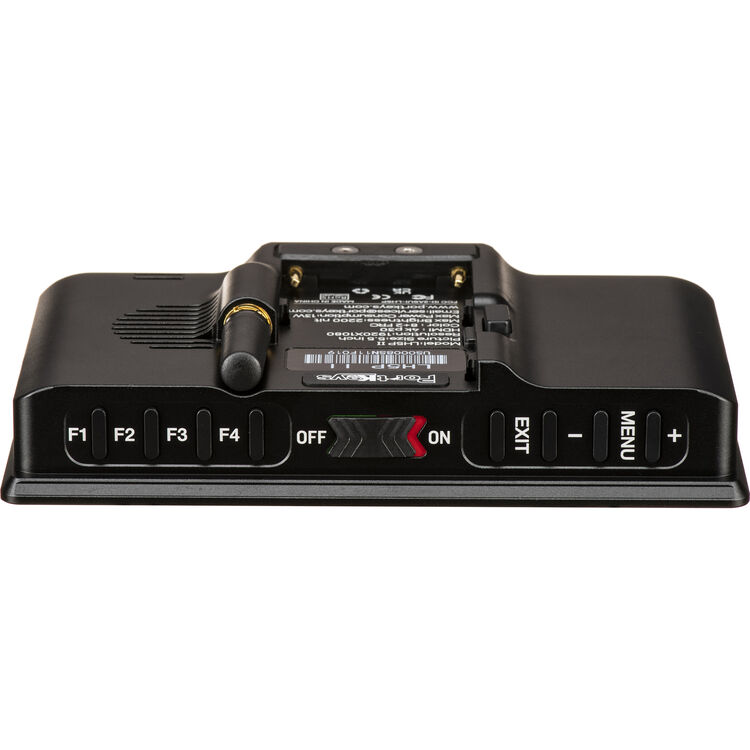

The Portkeys LH5P II is our 5.5-inch on-camera entry-level model into the world of wired and wireless camera control. However, no corners have been cut with a bulletproof all-aluminum housing and toughened glass in front of the display, a daylight-viewable touchscreen, four user-assignable function buttons that can even start/stop camera recording, and a full suite of professional monitoring tools. With a weight of only 285g/10.05oz (without battery), the LH5P II is a lightweight addition to your camera rig, but it adds many useful features to make your life on set easier.

Daylight-Viewable 2000nits Display

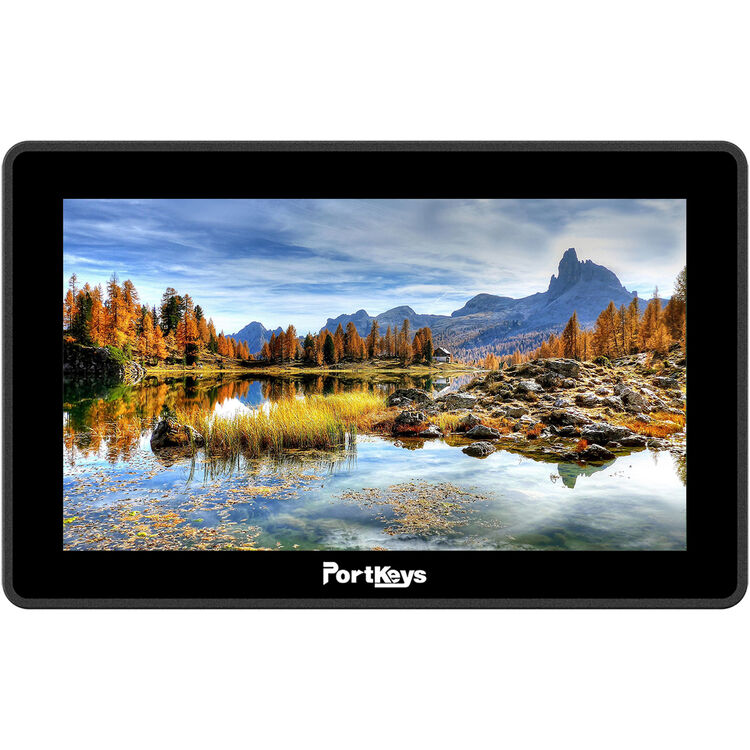

The LH5P II has a maximum brightness of 2,000 nits, so shooting outside in full sunlight is easy. The 10-bit (8+2 FRC) panel makes color reproduction more accurate with a rich level of color details and no color banding. Also, each Portkeys LH5P II display is factory color-calibrated and covers 100% of the Rec.709 color space and 85% of the DCI-P3 color space.

High-Resolution Camera Monitor Screen

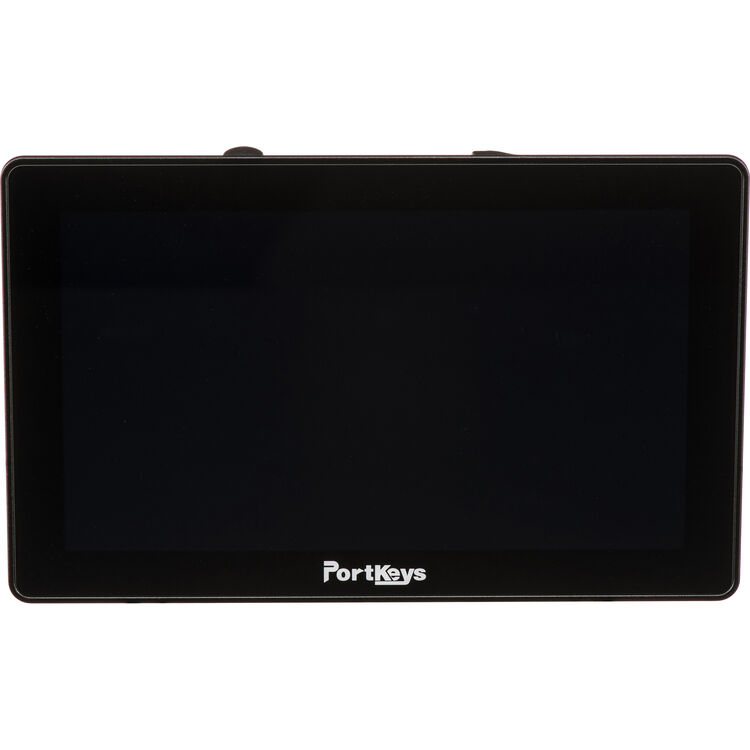

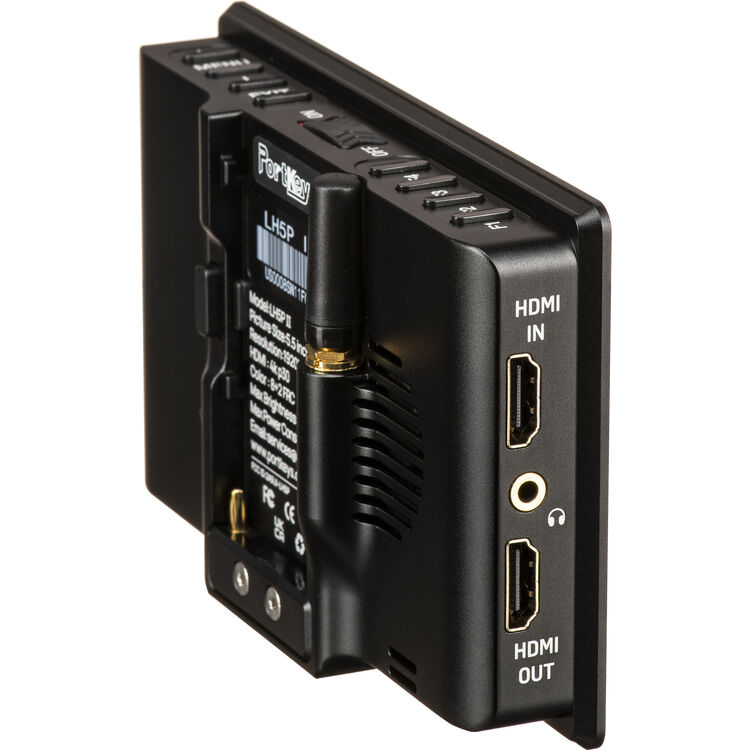

The Portkeys LH5P II features a 5.5-inch display with a FullHD 1920 x 1080 resolution, a large 178° viewing angle, and a 1000:1 contrast ratio. The monitor features one 4K HDMI input and one 4K HDMI output that can take signals up to 4K DCI at 24p, 4K UHD at 30p, or FullHD 1080p at up to 60p.

Power Options and Battery Flexibility

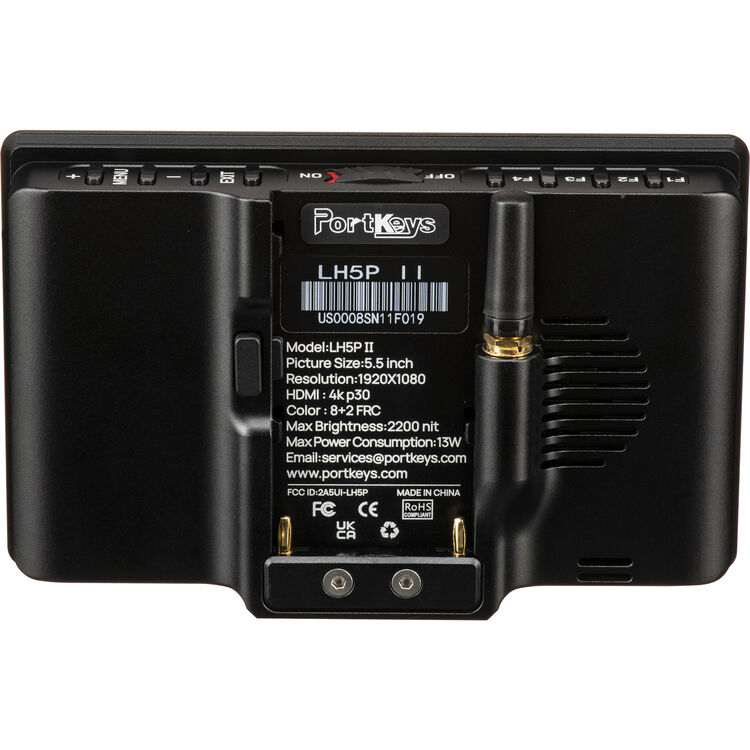

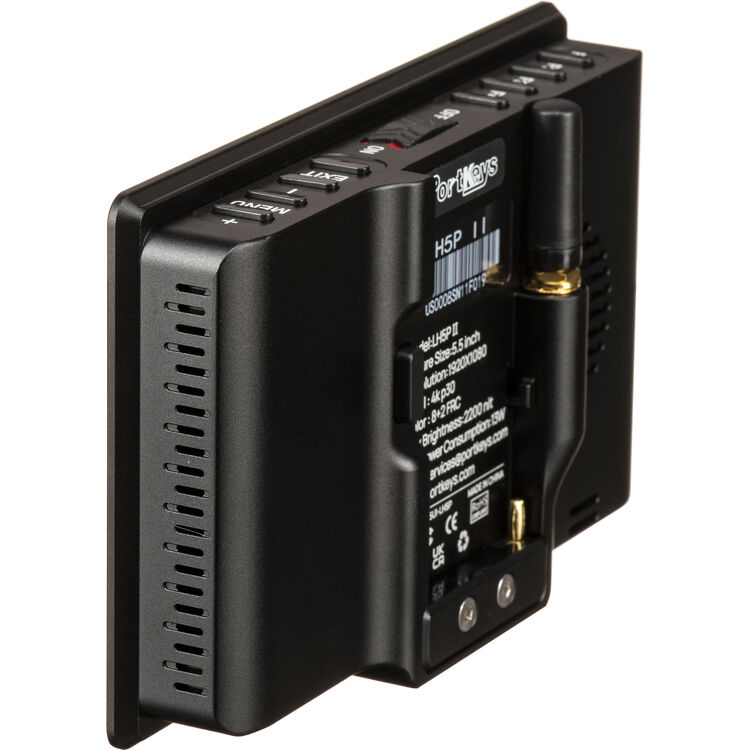

At the back of the LH5P II, you’ll find a built-in Sony NP-F-style battery plate that can power it for hours thanks to a low power draw of only 13W.

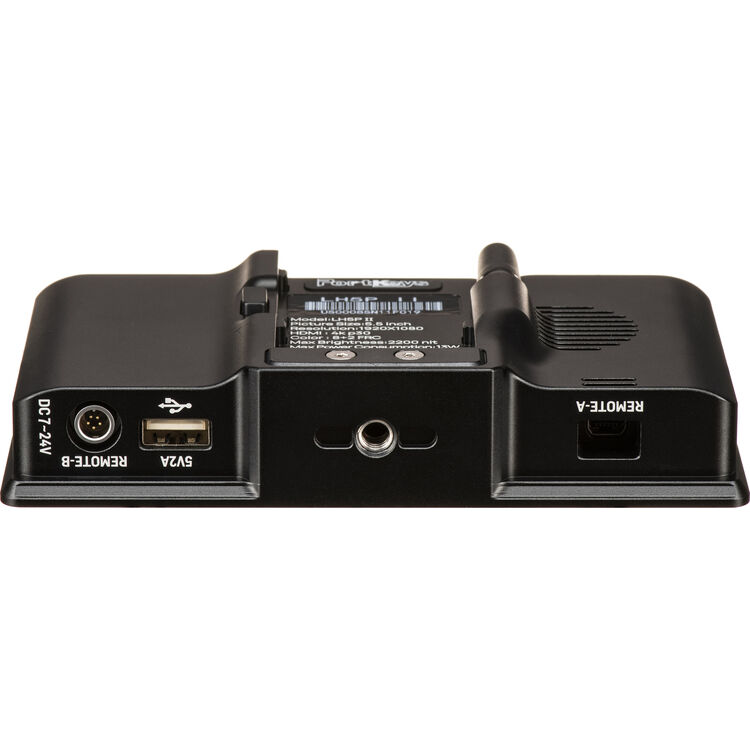

Also, the 5-pin aviation 7-24V power input at the bottom of the monitor and the included D-Tap to 5-pin aviation cable allow you to run your monitor via an external battery for unlimited time. Lastly, this 5-pin aviation power port can also be used to power small camera accessories (max. 5V 1A).

One-to-Many Multi-Camera Control

The Portkeys LH7P introduces a unique one-to-many control system, allowing users to manage and adjust the settings of multiple cameras from a single monitor.

With this feature, a “master” Portkeys monitor can wirelessly communicate with up to four compatible Portkeys monitors that have built-in camera control capabilities, within a range of 50 meters (165 feet). This allows you to control all connected cameras, regardless of brand, from one location.

In multi-camera setups, this system allows for simultaneous adjustment of settings and focus for all cameras without the need for cables. The one-to-many control system is compatible with Portkeys LH5PII, LH7P, LS7P, BM7IIDS, and BM5IV WR models.

Professional Monitoring Features

When it comes to monitoring your video signal, the Portkeys LH5P II has all the professional monitoring features you can expect from an on-camera monitor, including:

• 3D LUT monitoring. You can load custom LUTs via the USB port at the bottom of the monitor and the included USB key.
• A high-precision Waveform, Histogram, and Zebra tools. You can monitor the video signal before or after the 3D LUT.
• ARRI False Color mode and user-defined mode. When you use the user-defined mode, you can freely set the IRE values.
• A new Peaking algorithm to help you nail focus easily.
• Cropping feature to precisely zoom wherever you want inside the image.
• Framing guides, grids, aspects, and Auto image flip.
• Image Capture and Image Overlay. Image Capture takes a snapshot of the HDMI video input (combined with a LUT if desired) and saves it to the monitor’s memory. Then, you can set the transparency/opacity of the Image Overlay. This feature is helpful for shot matching (continuity) or a quick overview of the day’s shots.
• Anamorphic image de-squeeze with all the standard ratios (1.33x, 1.5x, 2.0x) and the possibility to enter a custom aspect ratio from 0.25 to 4.0x.
• Sharpness, chroma, brightness, backlight, tint, and color temperature adjustments.
• A unique exposure tool on Portkeys monitors, Log Stops uses the camera’s actual stop data to identify and divide the LOG signal into multiple exposure levels. Each of these levels can be displayed in a customized mode, either as false color or zebra, with users able to turn them on or off as needed. Currently, the auto-recognition feature supports Sony cameras.

Camera Control for Sony, Canon, Panasonic, Blackmagic, ZCAM

The Portkeys LH5P II can also control many cameras wired/wirelessly:

•  The removable 2.4 GHz WiFi antenna at the back of the monitor can connect wirelessly to Sony cameras, including the Sony A7S III, A7M IV, A7M III, A7 V, A1, A9I, A9II, A9 III, FX3, FX6, RX10, RX0, PXW-Z380. You can change your camera settings directly from the monitor and even touch to focus. Also, you can assign the “+/-” keys to adjust your ISO/Aperture/Shutter/Zoom/Frame Rate settings. Furthermore, one of the F1-F4 function keys can be assigned to start/stop recording. Also, PORTKEYS introduces a new autofocus feature: Focus Tracking frame. This feature lets you select and move your camera’s tracking frame box directly on the monitor’s touchscreen, making the monitor feel even more like a natural extension of your mirrorless camera.
• The monitor supports Bluetooth connection and camera control for Blackmagic Design users with the BMPCC 4K, 6K, BLE PYXIS 6K, and 6K Pro.
• Wired control is also available for multiple Sony, Canon, Panasonic, BMD, and ZCAM E2 cameras.
• If you use a TILTA Nucleus N/M wireless follow focus, the LH5P II supports wired control of your motors. The focus scale can even be displayed on the display.

* Wireless control does not mean wireless video transmission; the video signal cable still needs to be connected.

Lastly, the optional REC Key can be connected to the Portkeys LH5P II, giving you an extended recording switch.
