DJI Focus Pro All In One Combo Camera Auto Focus Lidar Grip Hand Unit Motor Case

Product Code: djiallinonefocuspro
Availability: 3-7 Days

$1,990.00

Qty

0 reviews / Write a review

Description
Reviews (0)

DJI Focus Pro All In One Combo

Camera Auto Focus

Lidar, Grip, Hand Unit, Motor & Case

Excellent as new condition, fully working

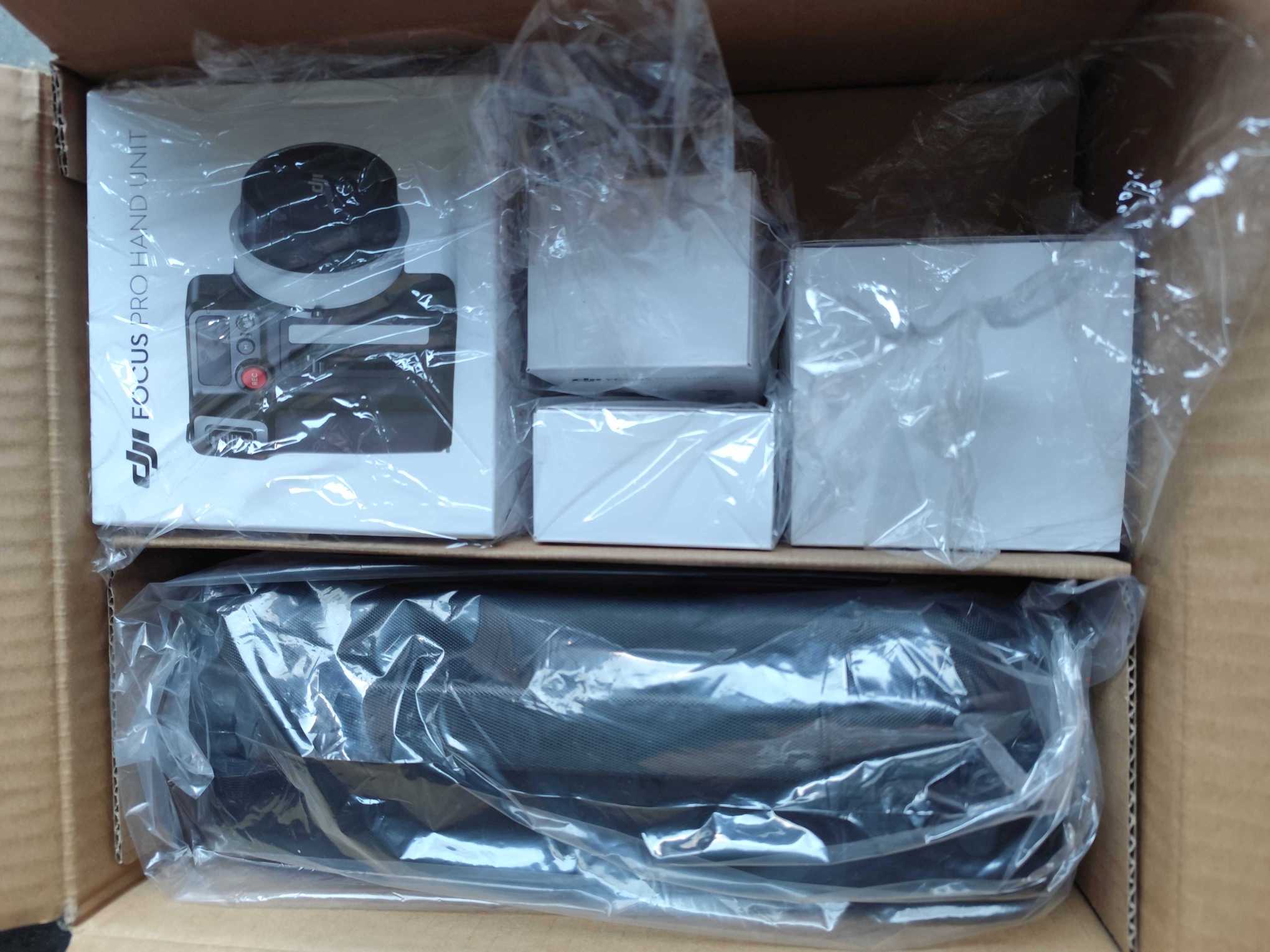

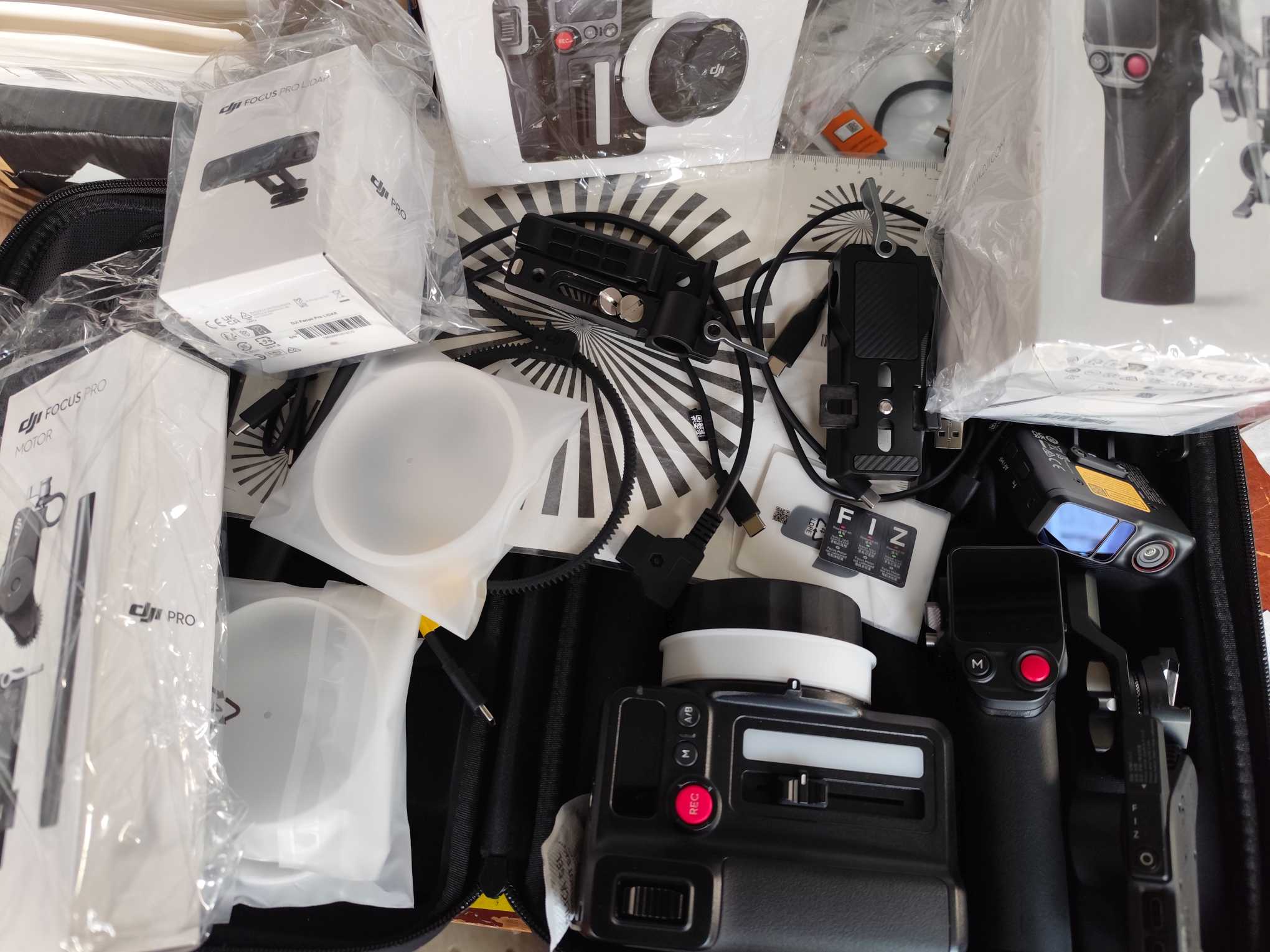

Includes all original items shown in photos and packaging etc.

It was purchased for a project, later cancelled.

tested all items working normal

https://www.ebay.com.au/itm/167817261161

20-Meter Subject Focusing, 76,800 Ranging Points

LiDAR human-subject focus distance is approx. 3 times that of the previous generation. The upgraded LiDAR boasts 76,800 ranging points, sharpening human-subject edge detection.

Built-in Camera, Enhanced AI Recognition Algorithms

More reliable recognition of human subjects and vehicles can be achieved. Even if the subject is momentarily obscured, the LiDAR can quickly regain focus.

AMF Mode, Human-Machine Collaborative Focus Control

In AMF mode, cinematographers can both visually observe the focus status on the monitor and intuitively perceive the autofocus logic through tactile feedback.

FIZ Lens Control, Magnetic Damping Tactile Feedback

The Focus Pro Hand Unit features real-time, stepless damping adjustment, and the Focus Pro Motor supports one-button linking with the Hand Unit. This allows focus pullers to effortlessly control lens FIZ.

LiDAR Waveform, Top-Down Focus Assistance View

Cinematographers can access the LiDAR Waveform focus assistance [3] through the High-Bright Remote Monitor. In addition, LiDAR Waveform offers supplementary information.

Compatibility With DJI PRO Ecosystem

DJI Focus Pro can work with Ronin stabilizers, DJI Transmission, Ronin 4D, Inspire 3, and more. This provides a robust AMF focusing solution for expanded scenarios.

Description

The DJI Focus Pro All-In-One Combo offers a comprehensive solution for achieving precise FIZ control over your manual camera lens. With the LiDAR unit, Focus Pro Motor, Focus Pro Grip, and hand unit, you have all the necessary tools at your disposal.

The LiDAR unit, specifically designed for the RS 3 Pro and RS 4 Pro gimbal stabilisers, enhances autofocus capabilities with its expanded ranging points, fast refresh rate, and wide detection area. It supports both wide-angle and telephoto lens configurations and features a built-in camera for accurate focus.

The Focus Pro Grip, equipped with a touchscreen display and various buttons, allows for intuitive control over camera and lens operations. It can be easily attached to your gimbal configuration using the built-in NATO clamp, and its battery lasts up to 2.5 hours.

The DJI Focus Pro Hand Unit, with its long-range control and tactile feedback for precise focusing, complements the Focus Pro Motor and gimbal stabiliser setup. It also offers Bluetooth recording control and a convenient touchscreen display for monitoring settings. Power for the hand unit is provided by an NP-F550 battery.

Specifications

DJI Focus Pro LiDAR

General

Compatibility DJI RS 3 Pro / RS 4 Pro / Focus Pro Grip

Resolution 1920 x 1440

Frame Rate 30 fps

Field of View 57.4° (Horizontal)

44.6° (Vertical)<br:70.1° (Diagonal)

Range 1.6 to 65.6' / 0.5 to 20 m

Inputs / Outputs

USB I/O 2 x USB-C Female Input

Power

Power Source USB

DC Input Power 6.6 to 17.2 VDC

Power Consumption 6.3 W (Typical)

6.8 W (Maximum)

Environmental

Environmental Protection No

Operating Temperature -4 to 113°F / -20 to 45°C

Physical

Mounting 1x Cold Shoe

1x 1/4"-20 Thread

Colour Black

Cable Length 11.8" / 30 cm

Dimensions 2.7 x 2.2 x 1" / 68 x 57 x 25 mm

Weight 4.9 oz / 140 g

DJI Focus Pro Grip

General

Compatibility DJI Focus Pro Motor / RS 4 Pro Gimbal Stabiliser / RS 3 Pro Gimbal Stabiliser

Display

Display Size 1.8"

Touchscreen Yes

Inputs / Outputs

USB I/O 4 x USB-C Female Input

Wireless

Wireless 2.4 GHz Radio/RF / Bluetooth

*Built-In

Power

Power Source Battery

Battery Type 1x Internal Rechargeable

DC Input Power 6.6 to 8.4 VDC

Environmental

Operating Temperature -4 to 113°F / -20 to 45°C

Physical

Mounting 1x NATO Clamp

2x NATO Rail

1x M4 Screw

1x 1/4"-20 Screw

Colour Black

Cable Length 15.7" / 40 cm

Dimensions 6.4 x 2.9 x 2.3" / 162 x 73 x 59 mm

Weight 17 oz / 482 g

DJI Focus Pro Motor

General

Compatibility DJI RS 3 Gimbal Stabiliser / RS 4 Gimbal Stabiliser / RS 3 Pro Gimbal Stabiliser / RS 4 Pro Gimbal Stabiliser / Focus Pro Grip / Focus Pro Hand Unit / Ronin 4D Flex

Max Transmission Distance 524.9' / 160 m

Gear Specs 30 Teeth, 0.8 MOD

Max Torque 0.6 Nm

Speed 300 rpm (Max)

Inputs / Outputs

USB I/O 1 x USB-C Female Input

Wireless

Wireless 2.4 GHz Radio/RF

*Built-In

Power

Power Source USB

DC Input Power 6.6 to 17.2 VDC
