Shape Camera Top Handle Extendable SHAPE THEX ARRI Red Sony Film rig Revolt Kit | Cameras, Accessories

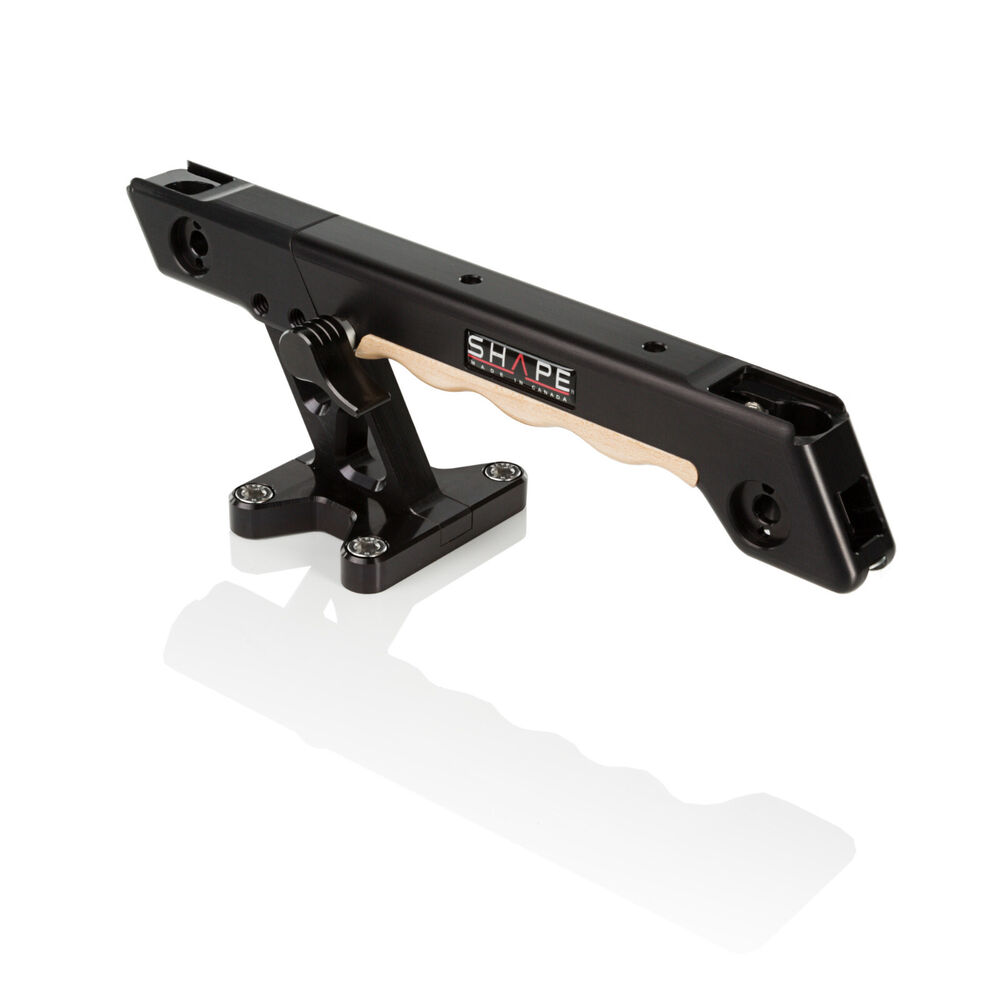

Shape Camera Top Handle Extendable

SHAPE THEX

ARRI Red Sony Film rig

Revolt Kit Made in Canada

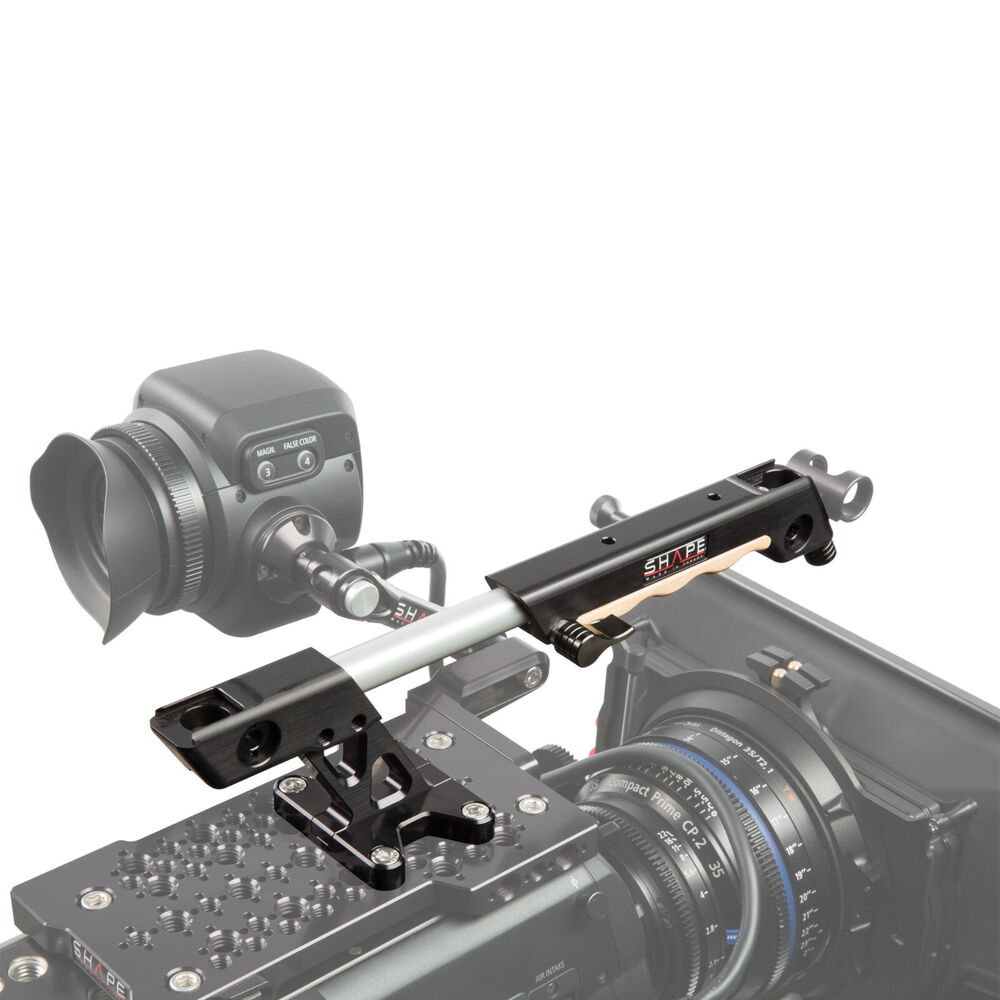

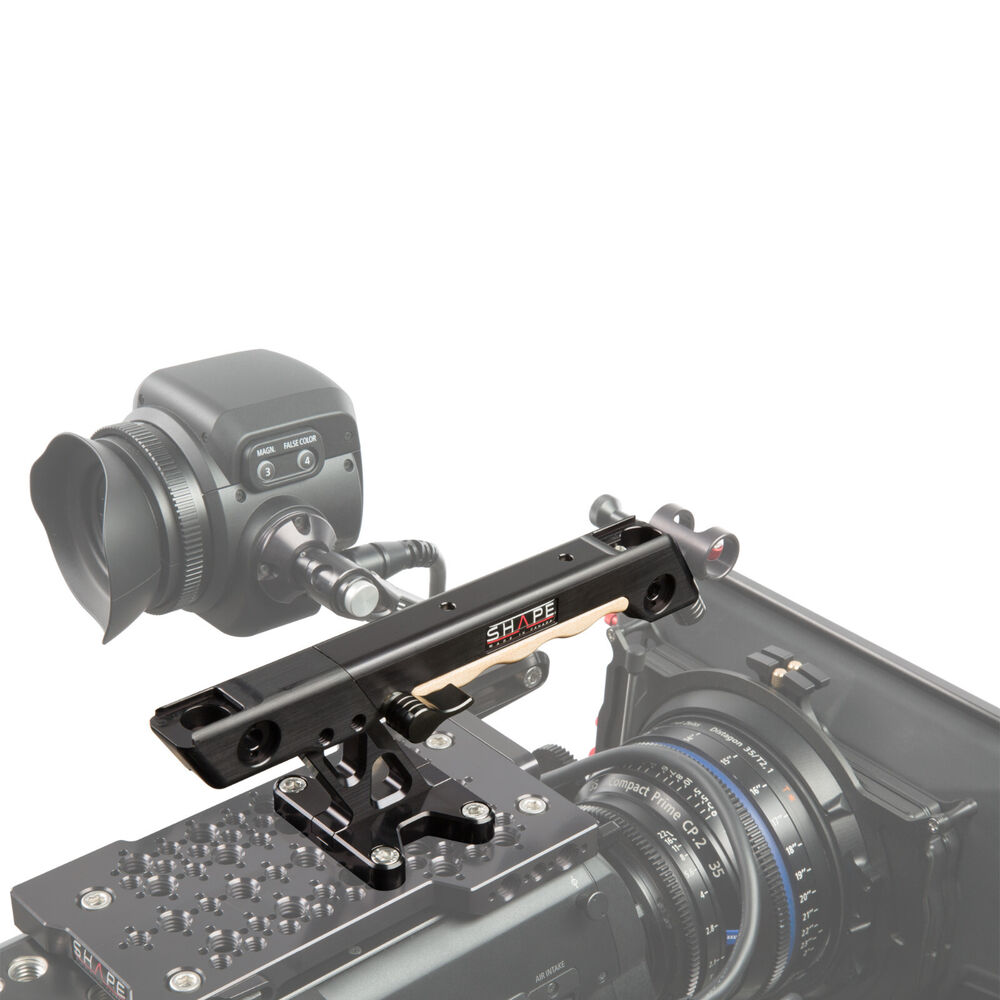

(1) EVF Mount. Perfect to attach our 15 mm Rod Clamp and our ‘Push Button Arm View Finder Bracket’.

(6) Six threaded holes to mount our Push Button Arm. Perfect to attach and manipulate more camera accessories.

(4) Four ¼-20 threaded holes (Front). Perfect for more attachment options.

(2) Two Hot Shoe Brackets (Front and Back of Handle).

The handle is made of Canadian maple to maximise ergonomics, comfort and security.

The principal components are CNC machined from 6061-T6 aluminum monolithic blocks. The parts are then anodized to protect against wear and oxidation.

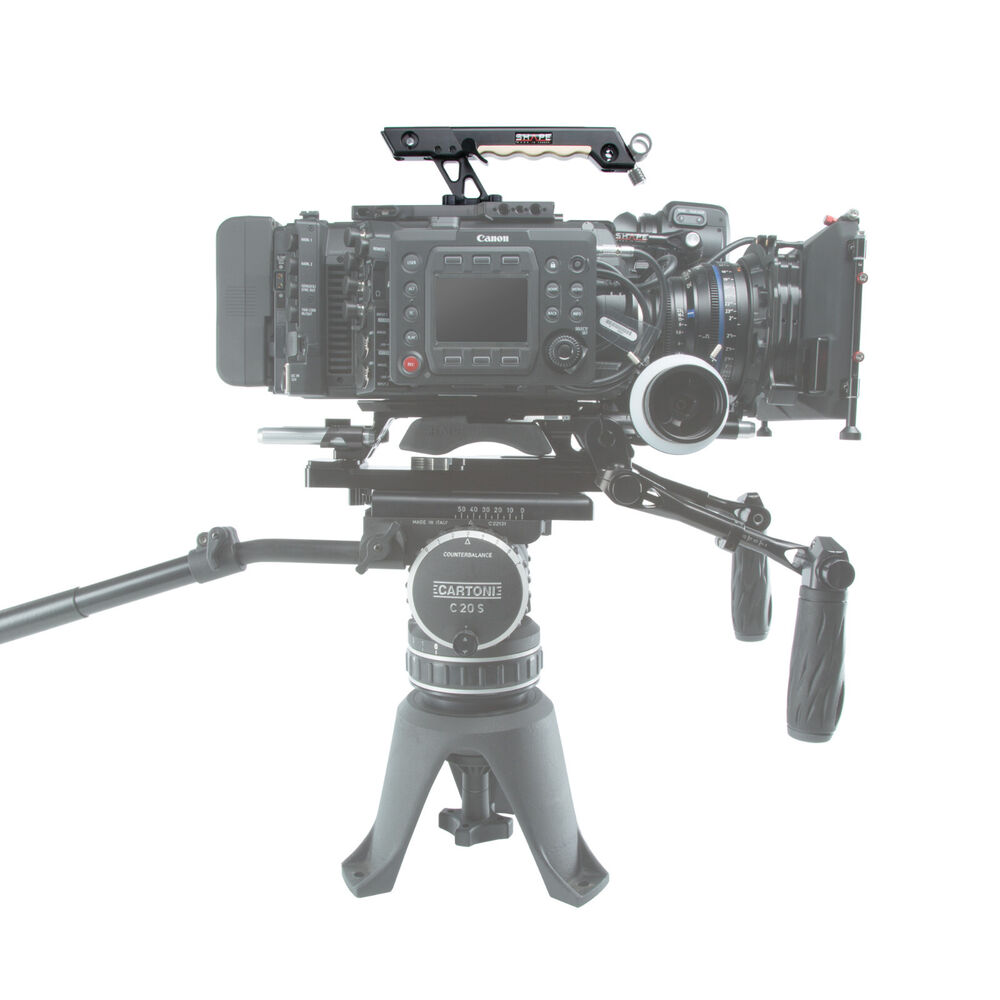

The Top handle can be positioned with 1/2 in. Increments on the Top plate, which allows to balance the unit during assembly. The final balance adjustment is done by using the telescopic feature of the Top handle. To do so, operate the lever on the side of the handle.

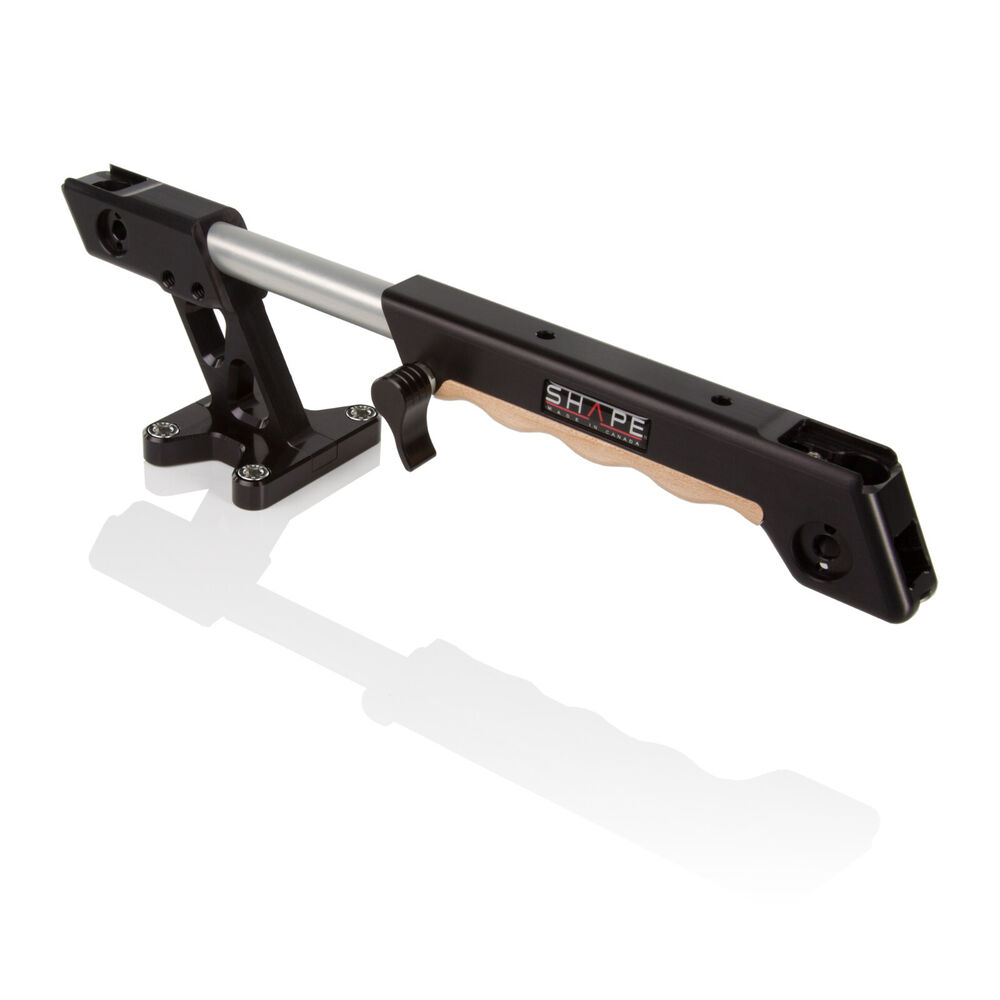

The telescopic handle has a 68mm / 2.6 in. travel. The internal mecanism is designed to prevent the handle for disengaging from the central rod as well as a blocking system preventing the handle from rotating on the rod.

Screws and Allen key included in Box
