DULENS MF60 Lens Checker Pro Set Large Format ALEXA 65 Interchangeable Mount

Brand: Dulens
Product Code: MF60-PS
Availability: In Stock

$11,153.00

Description
Reviews (0)

Key Features

Covers Large Format & up to ALEXA 65
Interchangeable PL Mount (+Set of Mounts)
Standard Reticle Chart, 3 x OLPF Filters
15mm Rod & Bracket, ARRI-Standard Plate
Bright 50W, 4000-Lumen, 6500K LED Light
Check Back Focus, Sharpness
Check Coverage, Chromatic Aberration
Adjustable Beam Focus, 6-Step Dimming
12V Barrel Output for Focus System
Power via Adapter or 18-30V Battery

Test your cine-style lenses in the field or studio with the basic MF60 Lens Checker Pro Set from Dulens. This lens-testing instrument enables you to check the back focus accuracy, image coverage, sharpness, chromatic aberration, and other lens characteristics of a cine lens. It covers large-format sensors, as well as sensors up to ALEXA 65. This basic kit includes a standard reticle chart, an ARRI-style plate, a 15mm rod with a rod bracket, an AC adapter, and three OLPF filters.

"MF60 Lens Checker Pro Set

Include：
PL Mount *1
LPL Mount *1
GFX Mount *1
EF Mount *1
RF Mount *1
E Mount *1
L Mount *1
Z Mount *1
M Mount *1

Standard Reticle *1
High Resolution Reticle *1
Bokeh test Reticle*1

Top Handle *1
Dail Indicator *1
Laser Rangefinder *1

OLPF Filter *3
DC Adapter *1

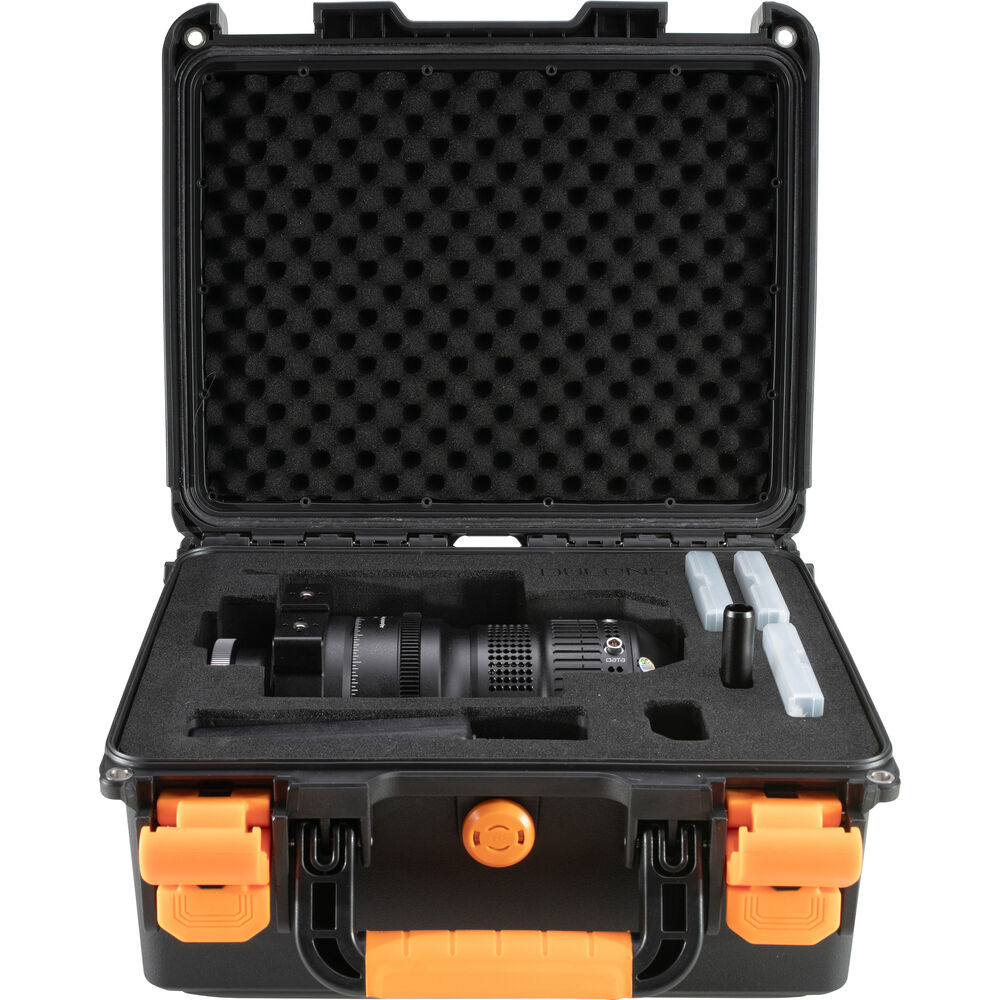

Safety Case *1"

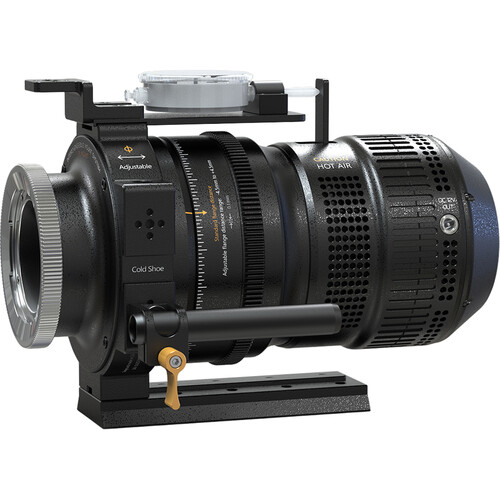

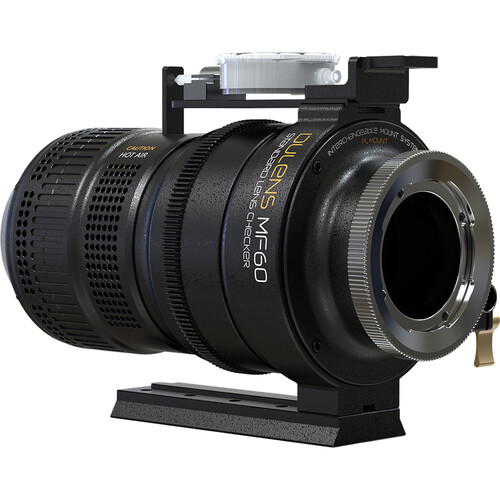

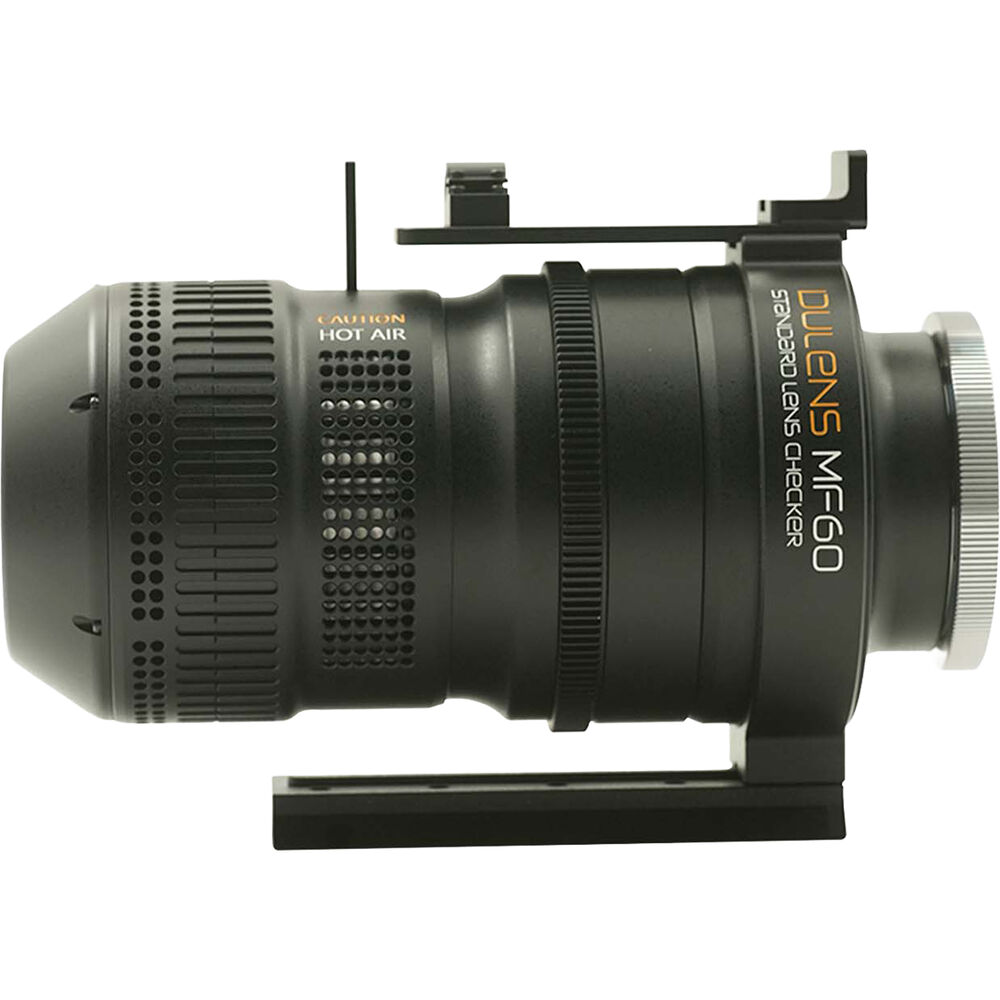

Dulens MF60-BS Overview

Test your cine-style lenses in the field or studio with the basic MF60 Lens Checker ProSet from Dulens. This lens-testing instrument enables you to check the back focus accuracy, image coverage, sharpness, chromatic aberration, and other lens characteristics of a cine lens. It covers large-format sensors, as well as sensors up to ALEXA 65. This basic kit includes a standard reticle chart, an ARRI-style plate, a 15mm rod with a rod bracket, an AC adapter, and three OLPF filters.

Interchangeable Mount

The included interchangeable mount is compatible with ARRI PL-mount cine-style lenses. It can also be used with mounts, including:

ARRI LPL
Canon EF
Canon RF
FUJIFILM GFX
Sony E
Leica L
Nikon Z
M Mount

Standard Reticle Chart

The included standard reticle chart supports a variety of sensor format sizes from Super 16 to full frame to ALEXA 65.

Bright LED Light

The integrated 40W LED light outputs 4000 lumens
Color temperature of 6500K
Offers 6-step dimming

Adjustable Beam Focus

The focus beam can be adjusted 0.16" both forwards and backwards.

Built-In Cooling

The active cooling system prevents overheating when used at maximum brightness.

OLPF Filter Set

Includes a set of 2, 2.5, and 3mm OLPF (optical low-pass) filters.

Mount Options

The basic kit provides multiple mounting and carry options, including:

A 15mm rod and bracket to mount an optional focus motor
ARRI-standard quick release plate

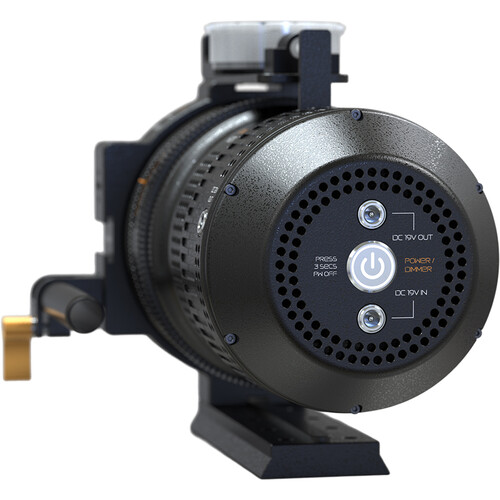

Power Options

Use with the included 19V, 90W DC adapter
Compatible with 18-30V batteries for portable use
The 12V output can be used to power a wireless focus system

Dulens MF60-BS Specs

General

Built-in Light	50 W LED
Color Temperature	6500 K
Lumens	4000
Dimming	6-Step
Focus Range	Forwards and Backwards: 0.16" / 4 mm

Wireless

Mobile App Compatible

Power

Power Source	AC Adapter with Power Brick (Included), DC Input (Included)
AC Input Power	100 to 240 VAC, 50 / 60 Hz
DC Input Power	18 to 30 VDC
Power Consumption	90 W
Power I/O	1 x DC Barrel 1 x DC Barrel, 12 VDC

Physical

Mounting	1x ARRI-Style Plate 1x 15 mm Rod Bracket 1x 15 mm Rod 1x Cold Shoe
Color	Black
Dimensions	9.4 x 6.6 x 4.7" / 240 x 168 x 120 mm
Weight	7.3 lb / 3.3 kg
