CHIOPT XTREME ZOOM 28-85mm T3.2 & 75-250mm T3.2 Lens Kit (PL Mount)

Brand: Chiopt
Product Code: XTRCO+E+1.7Extender
Availability: In Stock

$9,799.00

Description
Reviews (0)

Key Features

28-85mm T3.2 Compact Cine Zoom
75-250mm T3.2 Compact Cine Zoom
Covers Full-Frame Sensors
Interchangeable PL Mount
Includes Hard-Shell Case

CHIOPT XTREME 2-Lens Kit, Sony E mount & 1.7 Extender.
+Sony EMount

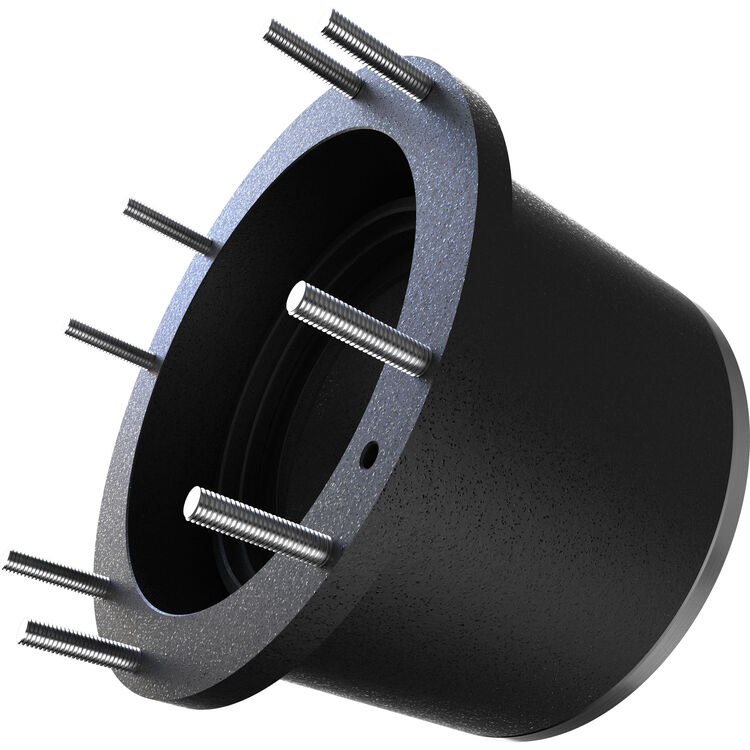

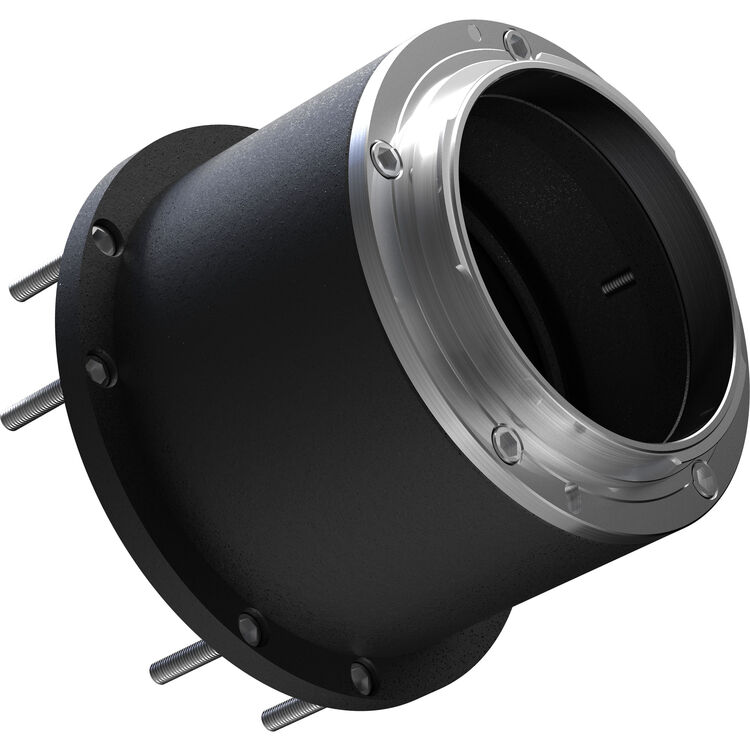

CHIOPT E-Mount for EXTREME Zoom
Convert your CHIOPT XTREME PL or EF-mount zoom lens to E-mount with this DIY CHIOPT E-Mount for EXTREME Zoom Cinema Lens. Use the included hardware to swap mounts in the field without having to send the lens to a technician.

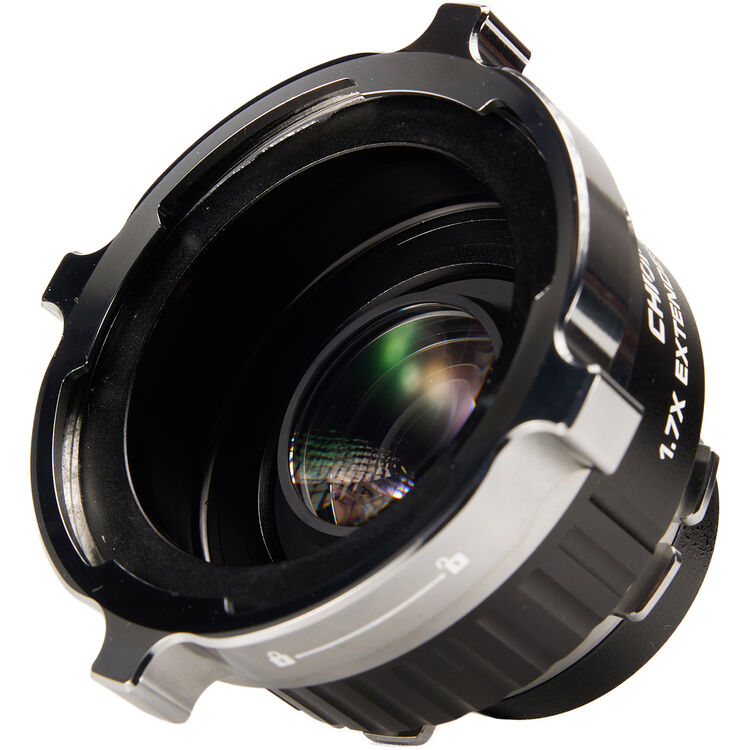

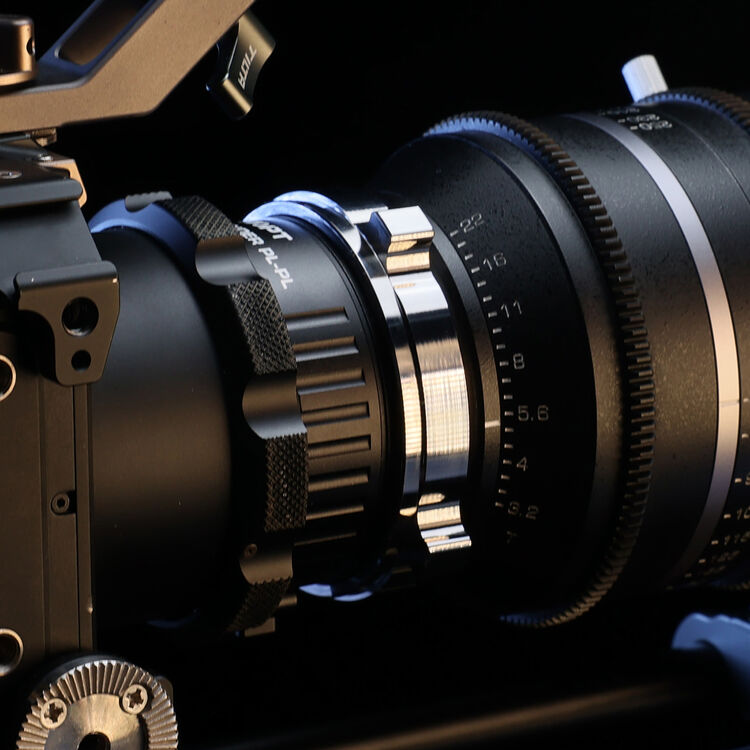

+CHIOPT 1.7x Lens Extender (ARRI PL to PL)

The 1.7x Lens Extender from Rokinon provides 1.7x magnification for your ARRI PL-mount lens. This adapter can be used to increase the image field of your lens, letting you use Super 35 lenses on a full-frame camera. Or it can serve to increase the focal length of your lens by 1.7x while maintaining a high optical quality.

Overview

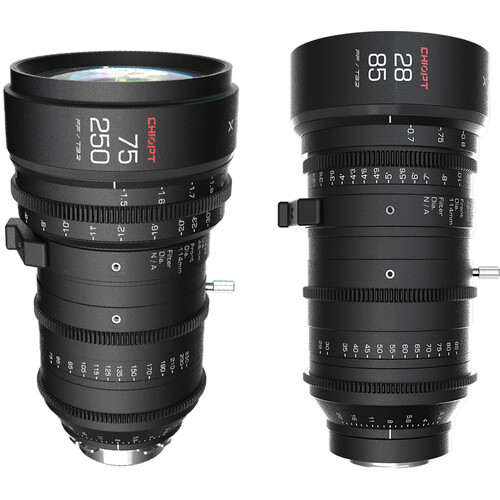

The XTREME ZOOM 28-85mm & 75-250mm Lens Kit from CHIOPT includes both the 28-85mm and the 75-250mm compact cine zooms, enabling you to cover a wide range of focal lengths using just two lenses. Both zooms offer full-frame coverage, color matching, a maximum T3.2 aperture, and a natural, rounded bokeh. This kit also includes a hard-shell case for both lenses. Read more below about each lens in this kit.

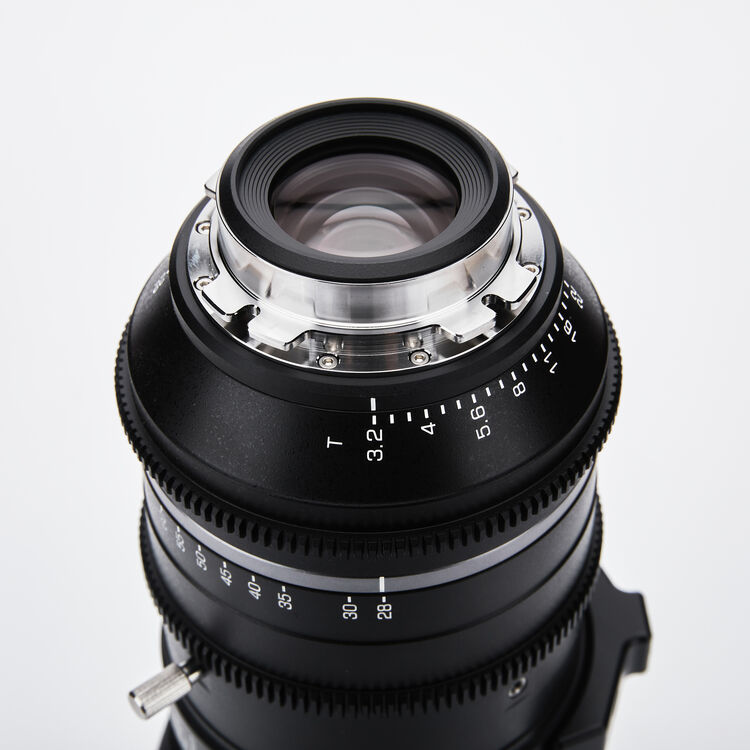

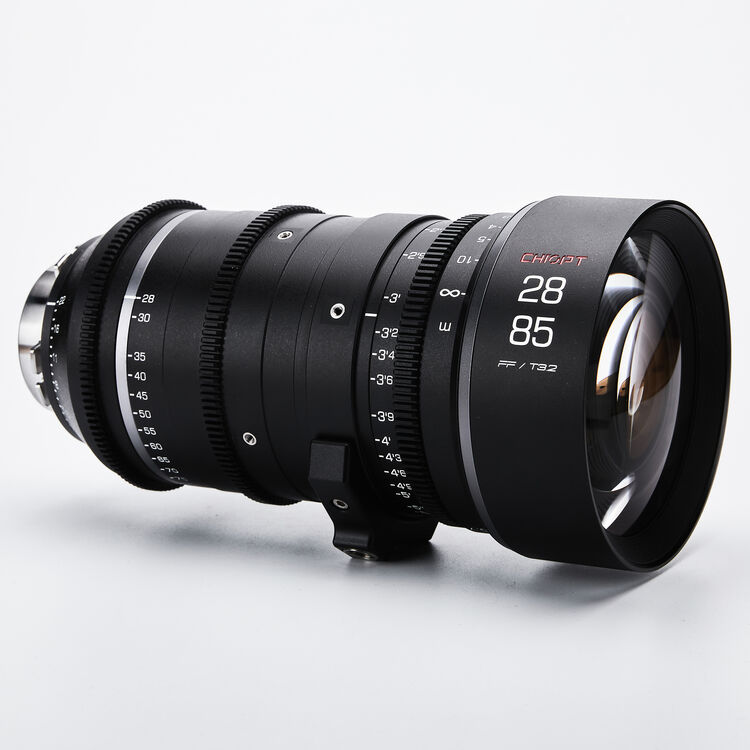

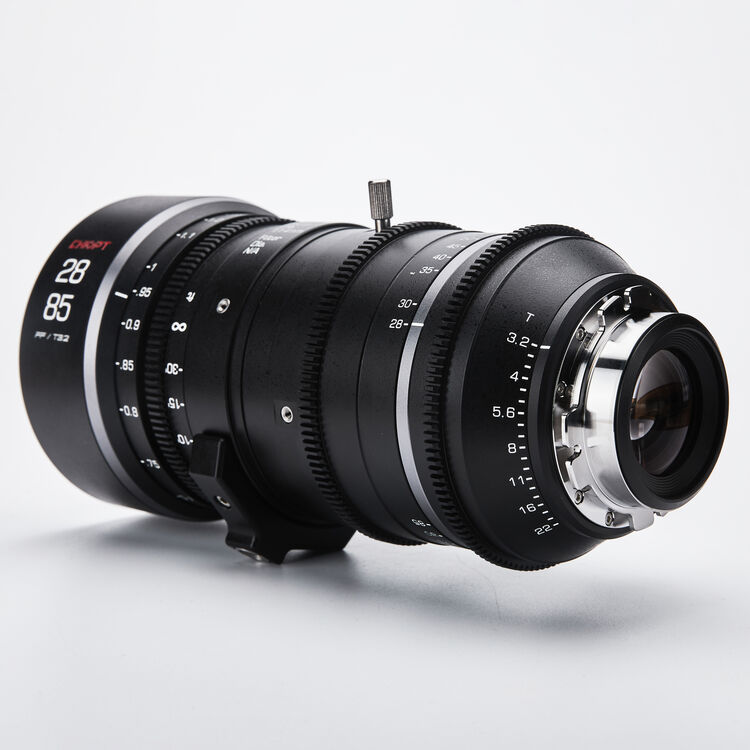

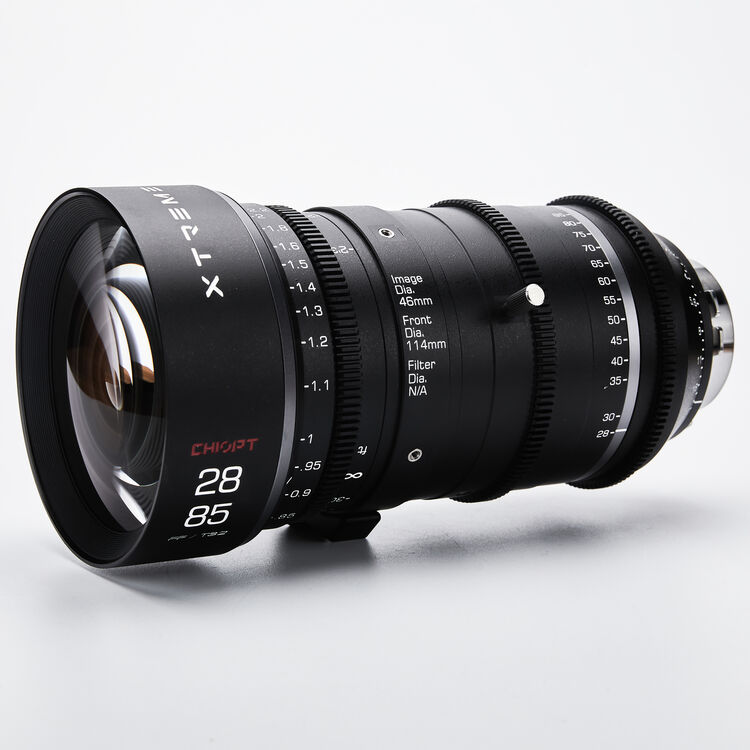

CHIOPT XTREME ZOOM 28-85mm T3.2 Compact Zoom Cine Lens (PL Mount)

Maintain sharp focus during slow, cinematic zooms for high-end commercial or 8K feature footage with the PL-mount XTREME ZOOM 28-85mm T3.2 Compact Zoom Cine Lens from CHIOPT. Designed for full-frame cameras, this parfocal lens ensures minimal breathing distortion and natural, rounded bokeh.

Focus scales are displayed in both meters and feet, eliminating the need for units of measurement conversions on set. To facilitate precise focus pulling, its ring has a 288° range, either by hand or remotely via the 0.8M gear of a follow focus system (available separately).

46mm Image Circle

This 28-85mm lens has a 46mm image circle that covers a full-frame sensor. When mounted on a camera with a Super35 sensor, it provides you with a tighter shot than if mounted on a camera with a full-frame sensor.

Protection from Rain and Dust

This lens has material in the gaps of the metal housing to help minimize the infiltration of dust or water.

288° Focus Ring

The 288° span of the focusing ring helps the crew land on just the right focal plane.

Minimal Breathing Effect

Rack focuses do not suffer from an exaggerated distortion in the foreground or background due to lens breathing.

Parfocal Design

Achieve signature zoom effects, keeping your subject perfectly in focus.

9-Blade Iris

The 9-blade iris creates rounded bokeh in the out-of-focus highlights.

15.7" Focusing Distance

A minimum focusing distance of 15.7" allows you to get up close to your subject.

UPC: 850037719419

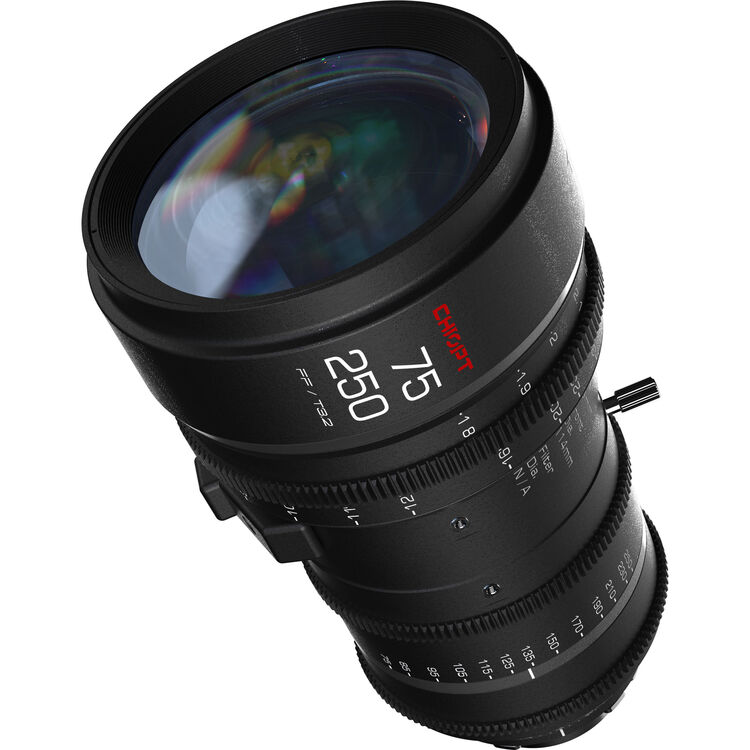

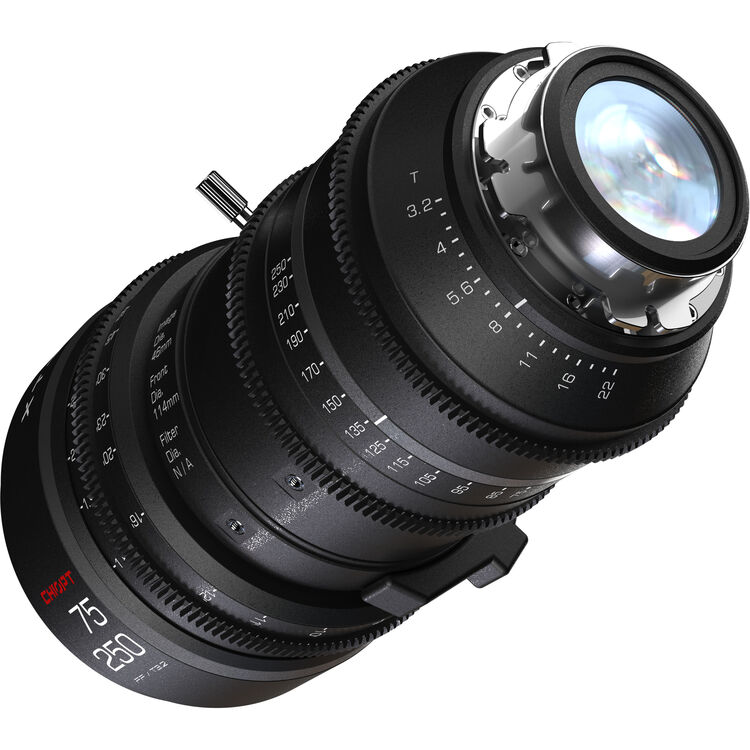

CHIOPT XTREME 75-250mm T3.2 Compact Zoom Cine Lens (PL Mount)

Capture sharp, distortion-free telephoto shots with the PL-mount XTREME ZOOM 75-250mm T3.2 Compact Zoom Cine Lens from CHIOPT. Designed for full-frame cameras, this lens is color-matched with the 28-85mm XTREME zoom and features a rugged design, minimal breathing, and natural, rounded bokeh. Focus scales are displayed in both feet and meters, and the wide 288° focus barrel range enables smooth, precise focus pulls.

Compact Telephoto Zoom

The long 250mm focal length enables you to position your camera further away while still capturing the action
Can be used with an optional 1.7x extender for a 425mm equivalent focal length

46mm Image Circle

This 75-250mm lens has a 46mm image circle that covers a full-frame sensor. When mounted on a camera with a Super35 sensor, it provides you with a tighter shot than if mounted on a camera with a full-frame sensor.

Interchangeable Mounts

This PL-mount zoom can be used with optional Canon EF and Sony E mounts for compatibility with a wide range of cameras.

Matches 28-85mm Zoom

Color, weight, and support position are matched with the 28-85mm zoom, enabling footage matching and quick switches between the lenses.

Weather-Resistant Metal Design

Material between the layers of the metal housing helps minimize the infiltration of dust or water
The metal lens housing with a stainless steel mount and hardened surface provides durability

288° Focus Ring

The 288° span of the focusing ring provides ample room for precise focus marking and smooth pulls.

Minimal Breathing Effect

Minimal lens breathing when zooming.

11-Blade Iris

The 11-blade iris creates rounded bokeh in the out-of-focus highlights.

Focusing Distance

Minimum focusing distance of 4.9' from the lens front.

CHIOPT XTREME ZOOM 28-85mm T3.2 Compact Zoom Cine Lens (PL Mount) + Hard Shell Case
+E Mount + 1.7 Extender

Key Specs

Focal Length	28 to 85mm
Maximum Aperture	T3.2
Lens Mount	ARRI PL
Lens Format Coverage	Full-Frame
Filter Thread	No
Image Stabilization	No
Electronic Communication	No

Maximum Aperture	T3.2
Minimum Aperture	T22
Lens Mount	ARRI PL
Interchangeable Mount	Yes
Lens Format Coverage	Full-Frame
Image Circle	46.0 mm
Angle of View	Full Frame Horizontal: 65 to 17.5° Diagonal: 75 to 21°
Focus Scales	Metric, Imperial
Filter Thread	No
Zoom Ratio	3x
Minimum Focus Distance	From Front of Lens: 15.7" / 0.4 m
Aperture/Iris Blades	9
Image Stabilization	No
Gear Standard	0.8 MOD
Gear Rotation	Focus: 288° Iris: 84° Zoom: 96°
Electronic Communication	No
Diameter	Maximum: 4.5" / 114 mm Front: 4.5" / 114 mm
Length	9" / 228 mm
Weight	6 lb / 2.7 kg

Packaging Info

Package Weight	13.94 lb
Box Dimensions (LxWxH)	16.6 x 16.55 x 13.1"

Key Specs

Focal Length	75 to 250mm
Maximum Aperture	T3.2
Lens Mount	Interchangeable Mount with Included ARRI PL
Lens Format Coverage	Full-Frame (46 mm Image Circle)
Filter Thread	No
Image Stabilization	No
Electronic Communication	No

Focal Length	75 to 250mm
Maximum Aperture	T3.2
Minimum Aperture	T22
Lens Mount	Interchangeable Mount with Included ARRI PL
Lens Format Coverage	Full-Frame (46 mm Image Circle)
Angle of View	Full Frame Horizontal: 26.8 to 8.2° Diagonal: 32 to 9.7°
Focus Scales	Metric, Imperial
Filter Thread	No
Zoom Ratio	3.5x
Minimum Focus Distance	From Front of Lens: 4.9' / 1.5 m
Aperture/Iris Blades	11
Image Stabilization	No
Gear Standard	0.8 MOD
Gear Rotation	Focus: 288° Iris: 84° Zoom: 104°
Electronic Communication	No
Diameter	Maximum: 4.8" / 122 mm Front: 4.5" / 114 mm
Length	9" / 228 mm
Weight	6.4 lb / 2.9 kg
