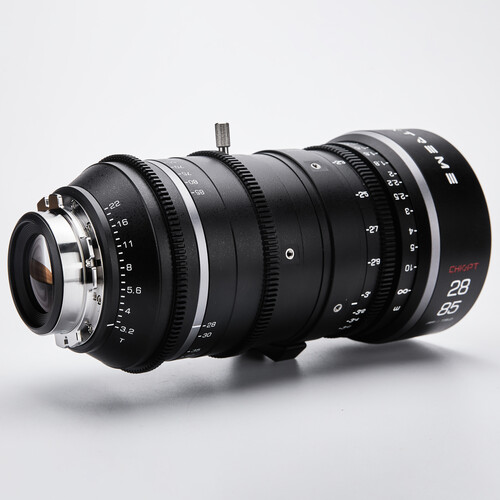

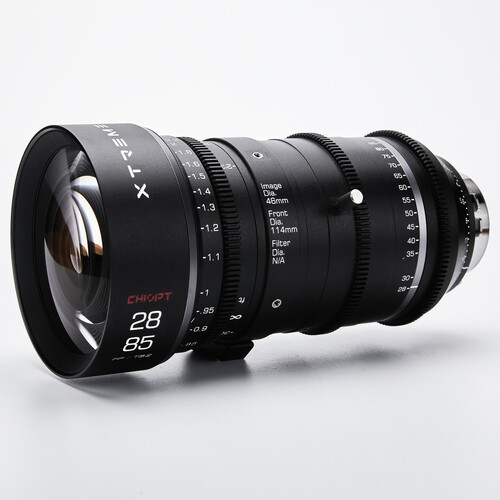

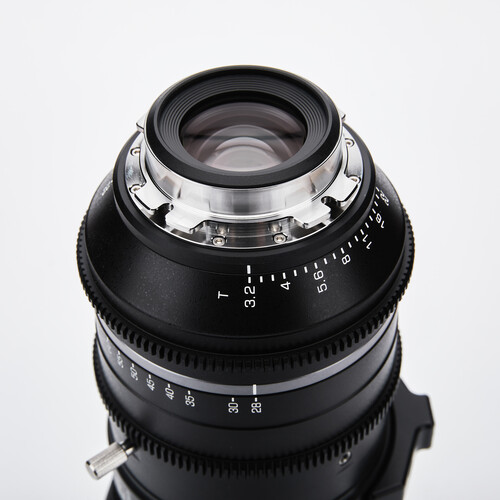

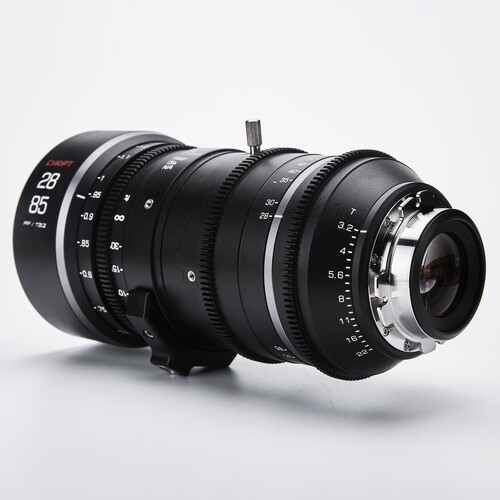

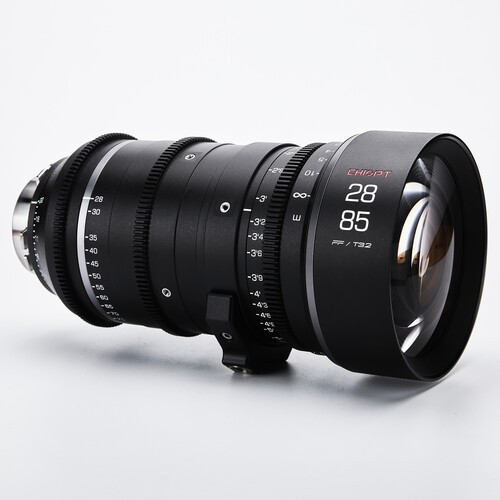

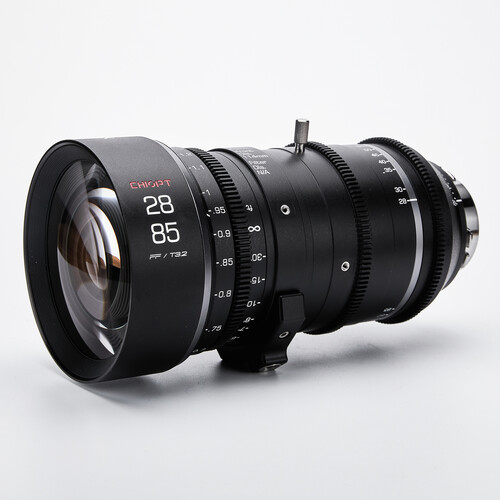

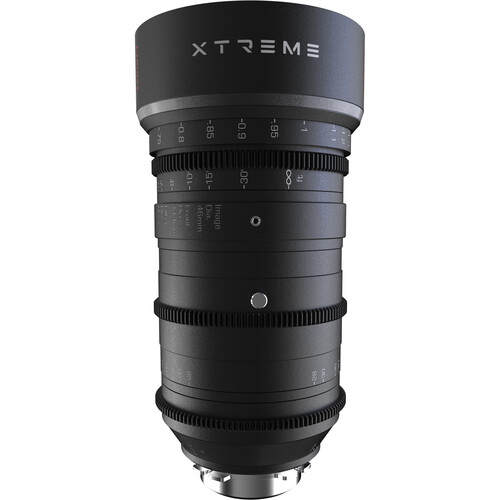

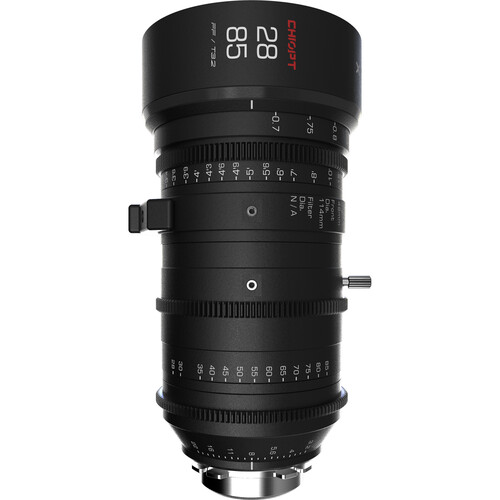

CHIOPT XTREME ZOOM 28-85mm T3.2 Compact Zoom Cine Lens (PL Mount) Chiopt XTR28 697456448000

Brand: Chiopt
Product Code: XTR28
Availability: In Stock

$3,899.00

Description
Reviews (0)

Key Features

28-85mm Lens Covers Full-Frame Sensors
9-Blade Iris, T3.2-T22 Aperture
288° Focus Ring Rotation
114mm Front Diameter
96° Zoom Ring Rotation
Parfocal Design to Zoom & Maintain Focus
Minimal Lens Breathing Distortion
Minimum Focus Distance of 15.7"
Focus Scales Visible in Meters & Feet

CHIOPT XTREME 28-85mm T3.2

Overview

Maintain sharp focus during slow, cinematic zooms for high-end commercial or 8K feature footage with the PL-mount XTREME ZOOM 28-85mm T3.2 Compact Zoom Cine Lens from CHIOPT. Designed for full-frame cameras, this parfocal lens ensures minimal breathing distortion and natural, rounded bokeh.

Focus scales are displayed in both meters and feet, eliminating the need for units of measurement conversions on set. To facilitate precise focus pulling, its ring has a 288° range, either by hand or remotely via the 0.8M gear of a follow focus system (available separately).

46mm Image Circle

This 28-85mm lens has a 46mm image circle that covers a full-frame sensor. When mounted on a camera with a Super35 sensor, it provides you with a tighter shot than if mounted on a camera with a full-frame sensor.

Protection from Rain and Dust

This lens has material in the gaps of the metal housing to help minimize the infiltration of dust or water.

288° Focus Ring

The 288° span of the focusing ring helps the crew land on just the right focal plane.

Minimal Breathing Effect

Rack focuses do not suffer from an exaggerated distortion in the foreground or background due to lens breathing.

Parfocal Design

Achieve signature zoom effects, keeping your subject perfectly in focus.

9-Blade Iris

The 9-blade iris creates rounded bokeh in the out-of-focus highlights.

15.7" Focusing Distance

A minimum focusing distance of 15.7" allows you to get up close to your subject.

Key Specs

Focal Length	28 to 85mm
Maximum Aperture	T3.2
Lens Mount	ARRI PL
Lens Format Coverage	Full-Frame
Filter Thread	No
Image Stabilization	No
Electronic Communication	No

Maximum Aperture	T3.2
Minimum Aperture	T22
Lens Mount	ARRI PL
Interchangeable Mount	Yes
Lens Format Coverage	Full-Frame
Image Circle	46.0 mm
Angle of View	Full Frame Horizontal: 65 to 17.5° Diagonal: 75 to 21°
Focus Scales	Metric, Imperial
Filter Thread	No
Zoom Ratio	3x
Minimum Focus Distance	From Front of Lens: 15.7" / 0.4 m
Aperture/Iris Blades	9
Image Stabilization	No
Gear Standard	0.8 MOD
Gear Rotation	Focus: 288° Iris: 84° Zoom: 96°
Electronic Communication	No
Diameter	Maximum: 4.5" / 114 mm Front: 4.5" / 114 mm
Length	9" / 228 mm
Weight	6 lb / 2.7 kg
