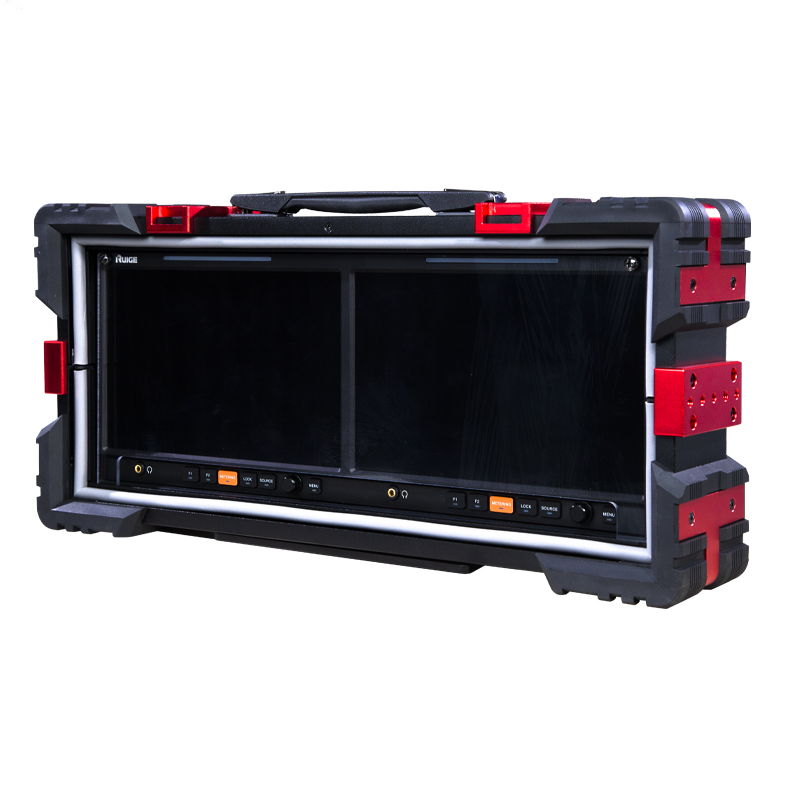

Ruige Action Rugged Production Monitor Armor 3 TL1011HD-2 Dual-Screen Cine Film Ruige TL1011HD-2 (Combo)

Brand: Ruige
Product Code: TL1011HD-2 (Combo)
Availability: In Stock

$3,581.38

Description
Reviews (0)

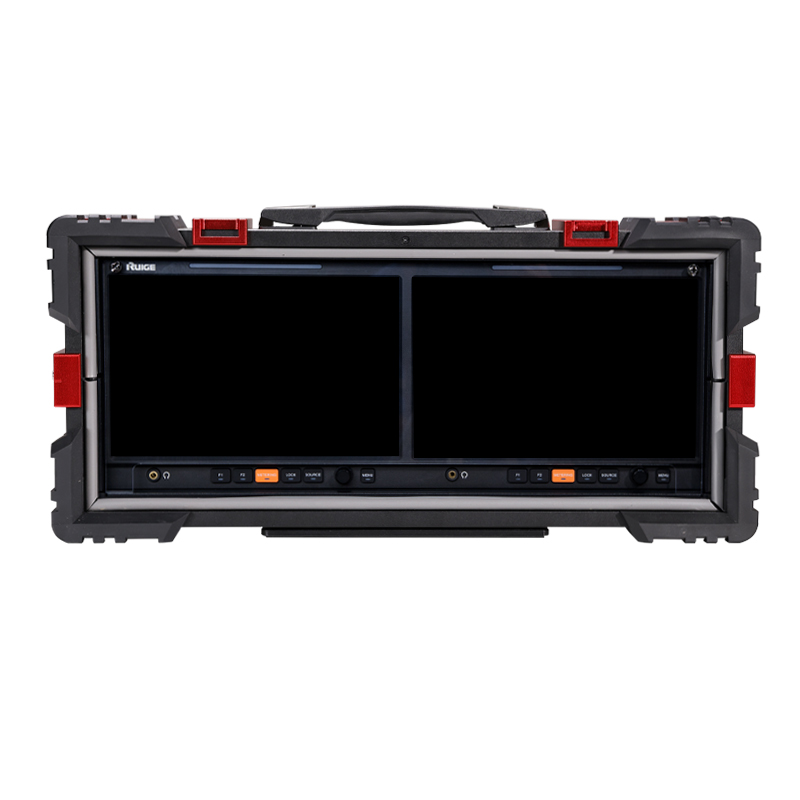

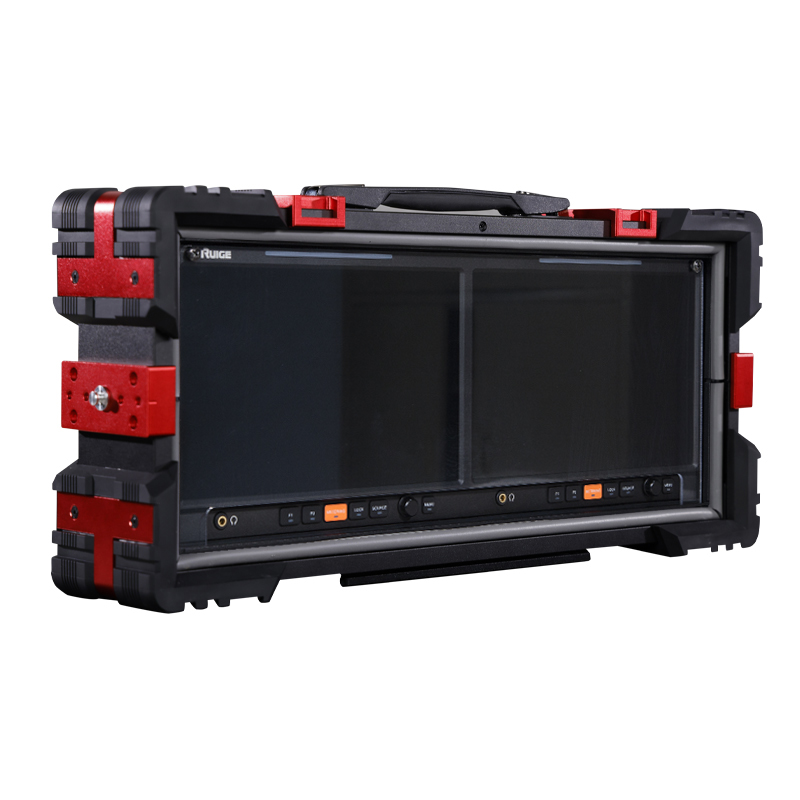

Armor No.3 TL1011HD-2 Dual-Screen

Category：Monitor

Screen Size：10.1 Inch

Features

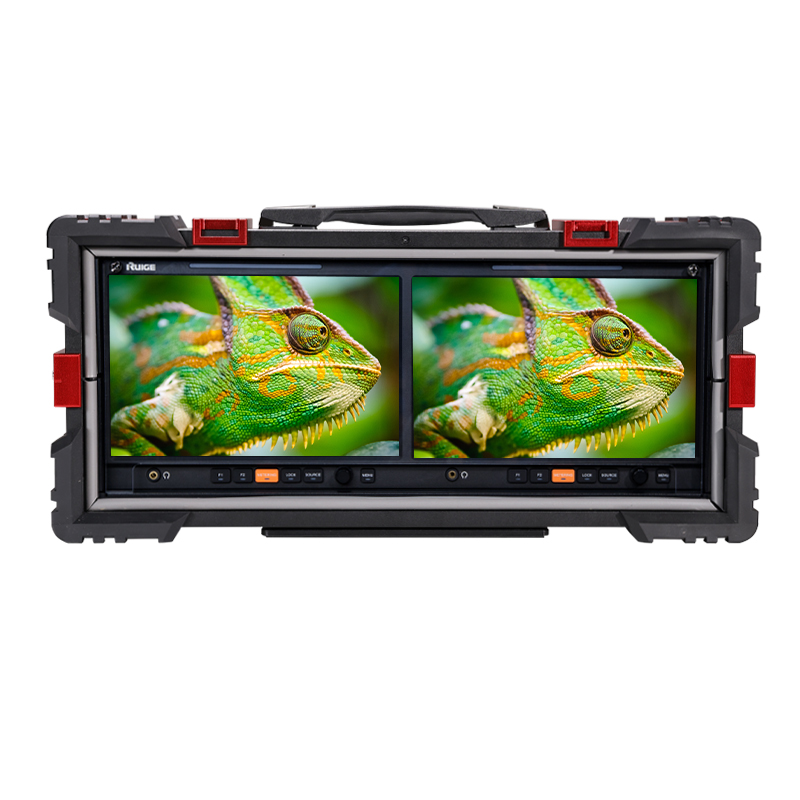

Dual 10.1-inch large screens, introducing new scenarios for dual-screen applications.
Peak brightness reaching 1000cd/m², with 10 levels of custom backlight brightness adjustment, meeting viewing needs for shooting and various applications.
Supports one-touch metering function, capable of detecting overexposed signals in the frame within one second, and accurately displaying the exact location of these signals.
Supports HDR display modes, including HLG ITU-R BT.2100, PQ SMPTE ST 2084 300/1000/10000.
Features split-screen display, with Screen A showing technical parameters and Screen B displaying the shooting scene, without interference between them.
Supports full-screen waveform monitoring, including luminance waveform, YCbCr, RGB, vectorscope, and histogram.
Automatically loads custom 3DLUT cube files via USB drive, allowing users to easily compare the screen effects before and after loading.
Supports HDMI 2.0 4K 60Hz video signal input, enhancing the fluidity of moving images.
All products undergo strict color calibration, with both screens having an average color accuracy typical value of ΔE<1 out of the factory.

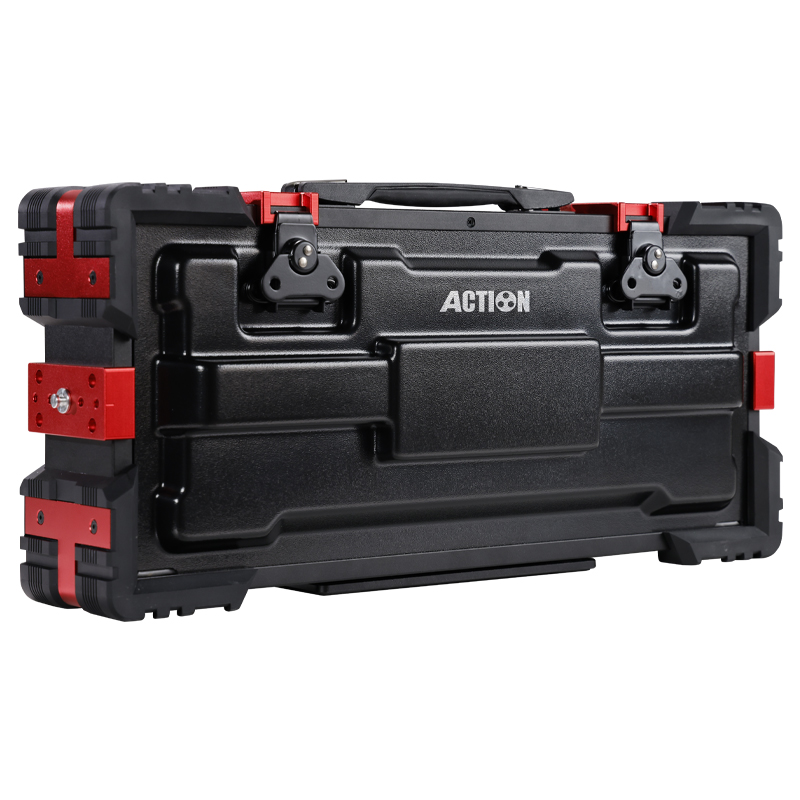

Upgraded to be paired with Armor Number Three’s portable protective case, offering enhanced safety for outdoor shooting.

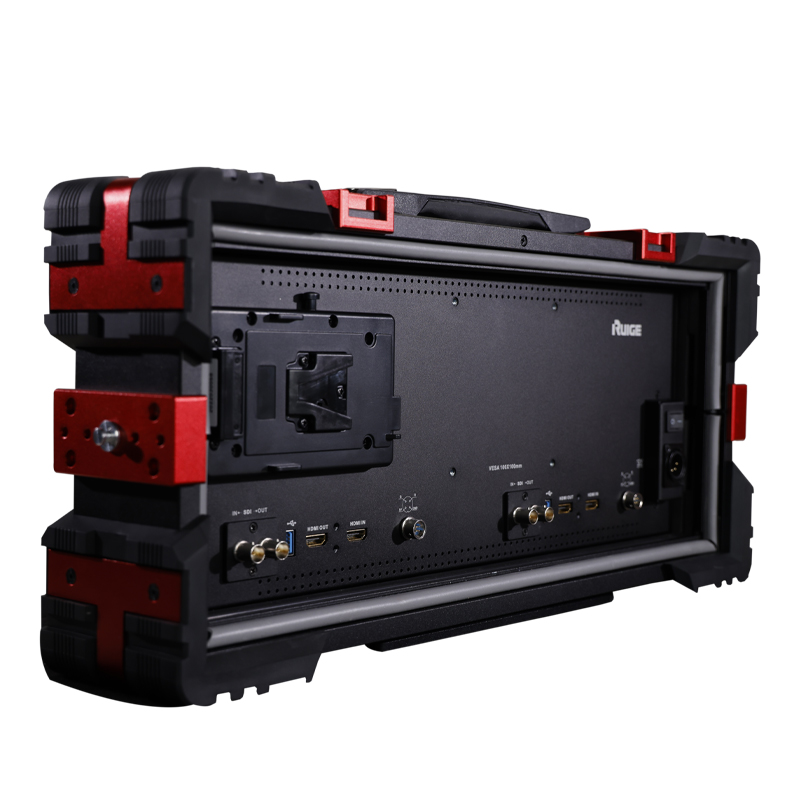

" 3G/HD/SD-SDI x1 input/output x 2 HDMI(2.0) x1 input/output x 2"

"Resolution: 1920×1200 Dot pitch: 0.0376（H）×0.01128（V）mm Back Light:White LED Brightness:（MAX） 1000cd/m2 Contrast:（MAX） 1000:1 AspectRatioi 16:9 / 4:3 Switchable Color depth: 8Bits（16.7M） Image Processing: 10Bits Response Time:15ms Color Gamut:Fully covers REC. 709, cover 92% DCI-P3, Supports REC. 2020 Viewing angle: H178° / V178° Feature: Built in 3D LUT color calibration,Metering function, Vector scope, Histogram, Luminance waveform, False color, Peaking focus, Light meter, Rapid Positioning of out of Luminance, Audio meter, Safety Marker, Marker Scale, Monochrome, Over Scan, USB LUT Loading, Bulit in Camera Logs (Slog3, Slog2) And Full-screen scopes ( Vector scope, Histogram, Luminance waveform, YCbCr, RGB) HDR: HLG ITU-R BT.2100, PQ SMPTE ST 2084"
