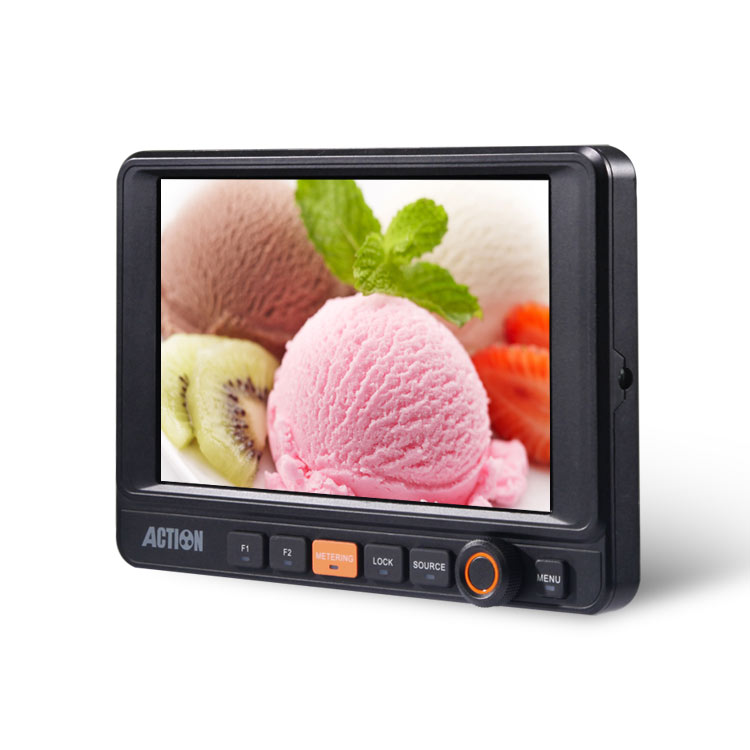

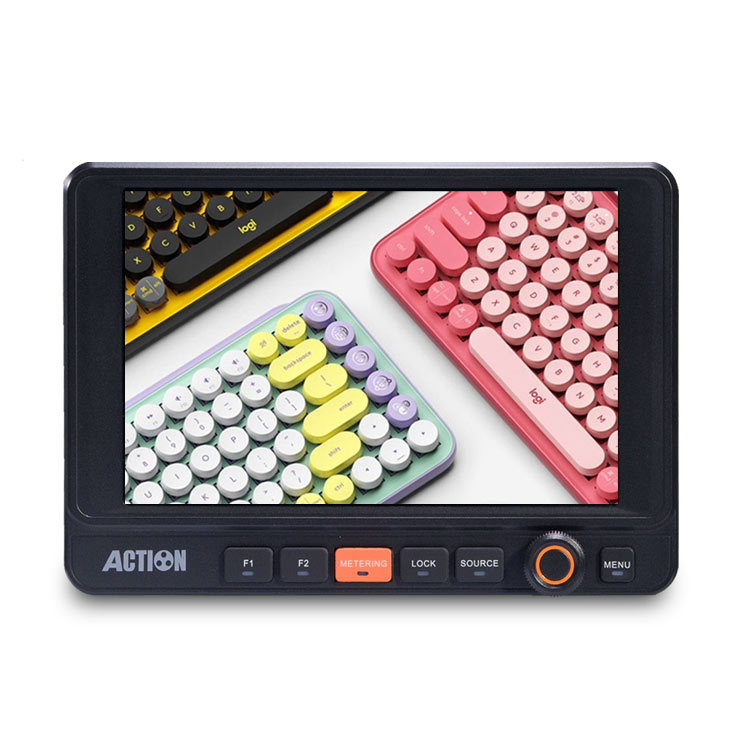

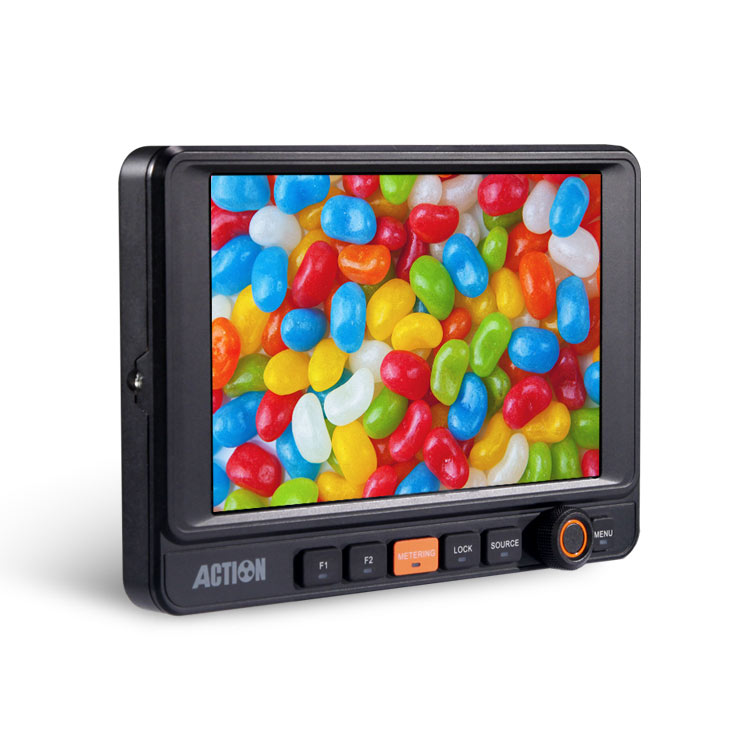

Ruige Action Rugged Production Monitor HL-701HD 7 inch with Light Meter Monitor Ruige HL-701HD

Brand: Ruige
Product Code: HL-701HD
Availability: In Stock

$1,065.80

Description
Reviews (0)

HL-701HD

Category：Monitor

Screen Size：7 inch

Features

Monitor that can measure light, only one second, real-time reproduction signal.
Original closed detection technology, expands the professional use of the monitor, assisting lighting sects to reduce cloth error rate.
A new generation of light refractive gathering technology is used. The light intensity is under 100000lux, and it is still necessary to display a clear picture without the need to make the cover.

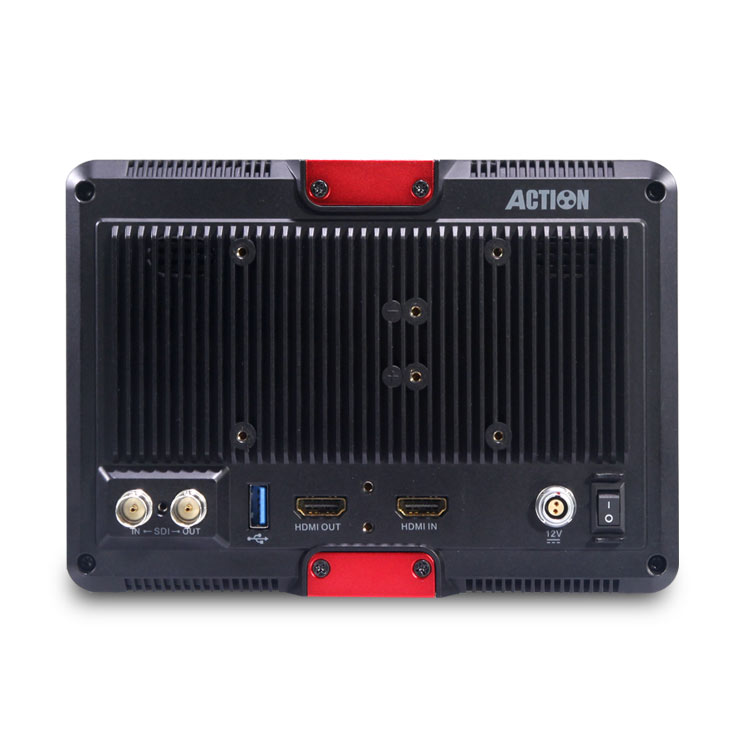

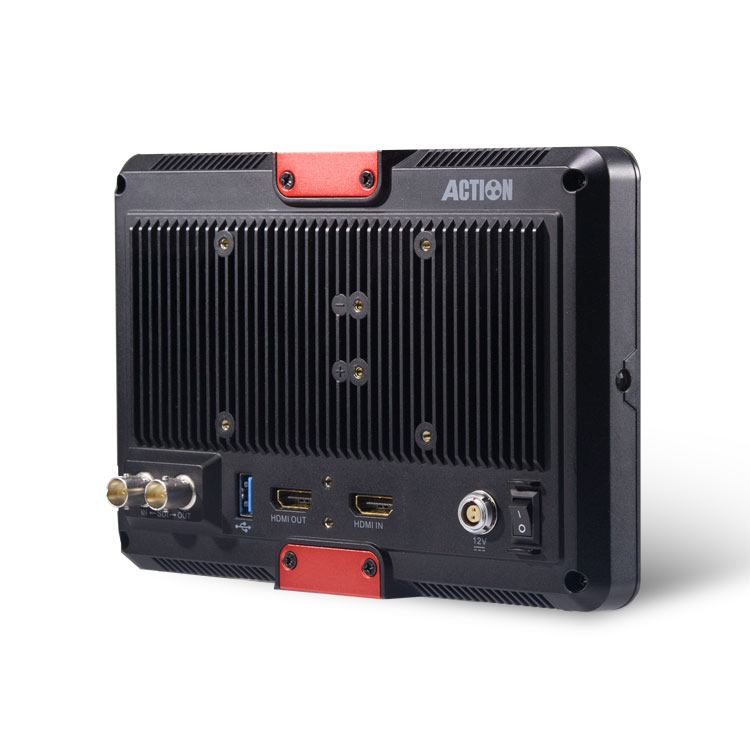

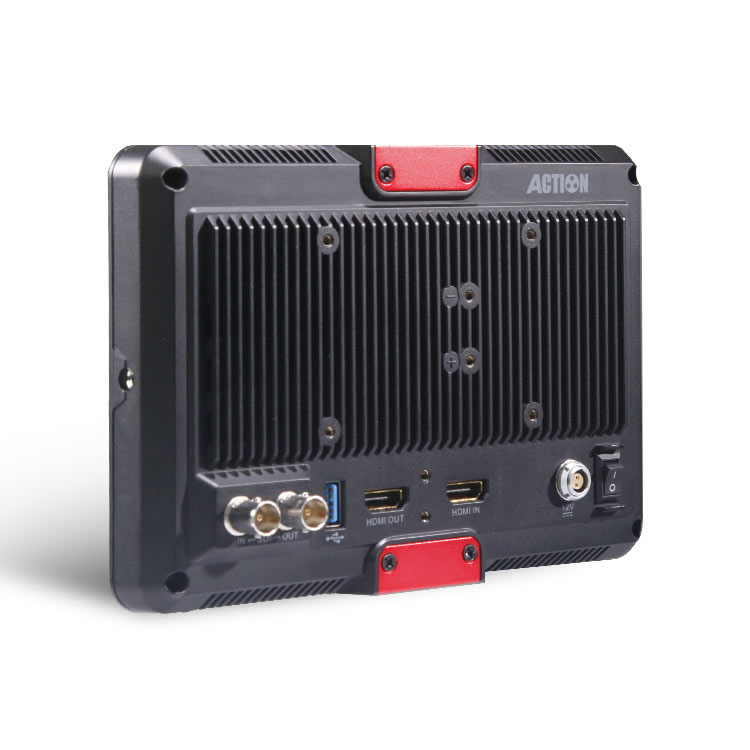

1x 3G-SDI input and 1xoutput / 1x HDMI input and 1xoutput /
Earphone jack/ Resolution: 1920*1200, Brightness:500cd/m2, Contrast: 1000:1,Response time: 7ms
Viewing angle: H178°/V178°
Back Light: WLED
Input voltage：DC 12V / Battery 14.4V
Power consumption: ≤15W
Outer size: 192mmx 132mmx 27.5mm
Weight:0.45kg

Feature:Metering function, Self-defined Safety marker, Embedded audio,Over Scan
* Peaking focus
* Zebra
*Luminance waveform
* Vector Scope
* RGB waveform
* YCbCr waveform
* False color and Rapid positioning of out of luminance range
* Audio Meter 16x Channel Audio meter（8x Channel, Optional）
* Support 3D LUT Color Calibration
* Capable of loading Six x 3D-LUT
* HDMI 2.0 (Support 4K 60Hz )
* Dynamic Range: ST2084 300/ST 2084 1000/ST 2084 10000/HLG
* Automatically generate monitor color calibration data and support real-time inspection, HDR, Anamorphic De-suqeeze, USB interfaces (LUT load/User LUT or software upgrades)
