Ruige Action Rugged Production Monitor AT-2400HR 4K HDR With Armor No2 Case ARRI

Brand: Ruige
Product Code: AT-2400HR
Availability: In Stock

$7,843.12

Description
Reviews (0)

AT-2400HR 4K HDR With Armor No.2 Case

Category：Monitor

Screen Size：24 inch

Features

New generation AT-2400HR professional 4K HDR LCD monitor；

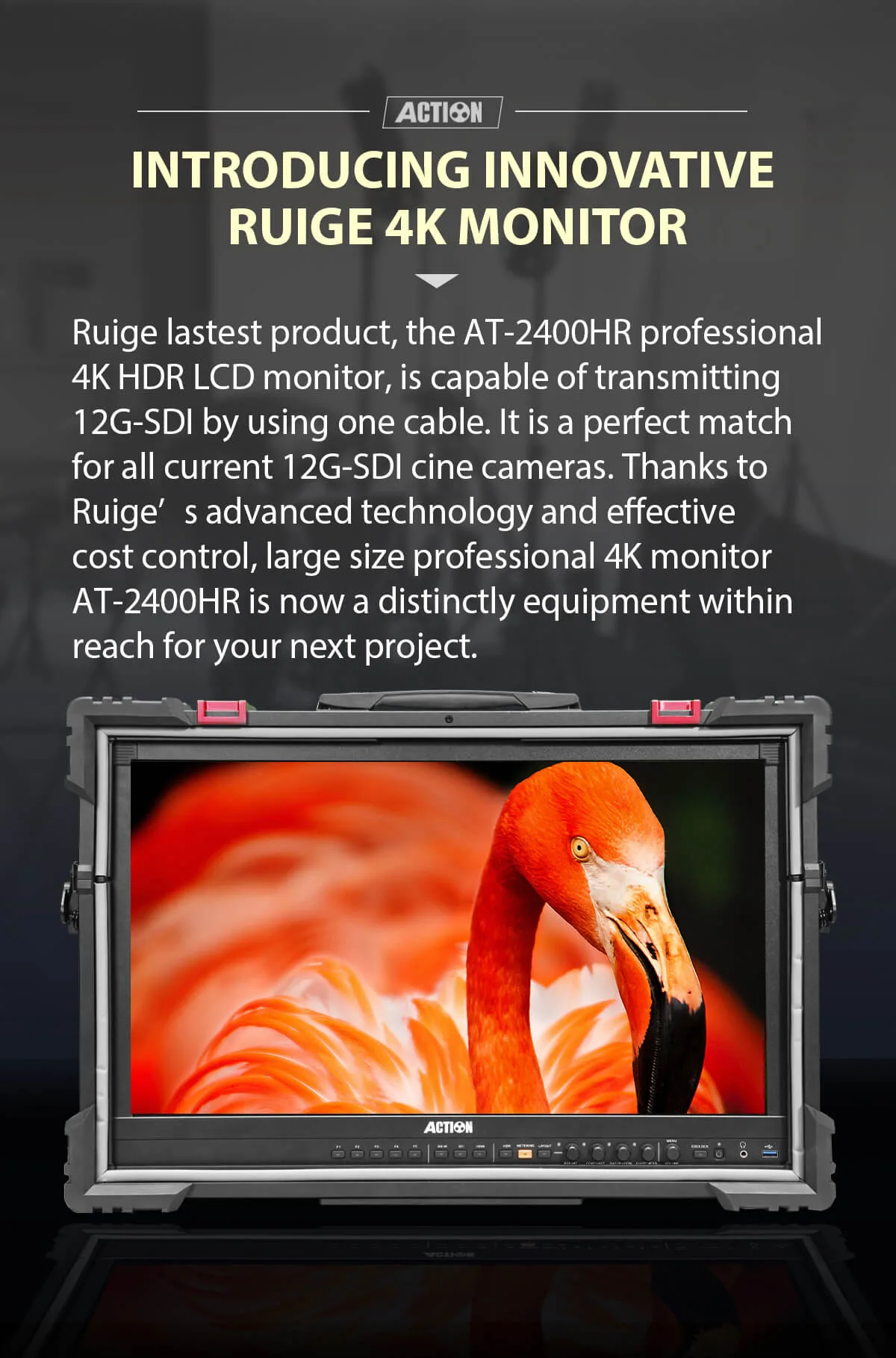

Ruige lastest product, the AT-2400HR professional 4K HDR LCD monitor, is capable of transmitting 12G-SDI by using one cable. It is a perfect match for all current 12G-SDI cine cameras.；
Support 3840*2160 4K UHD resolution；

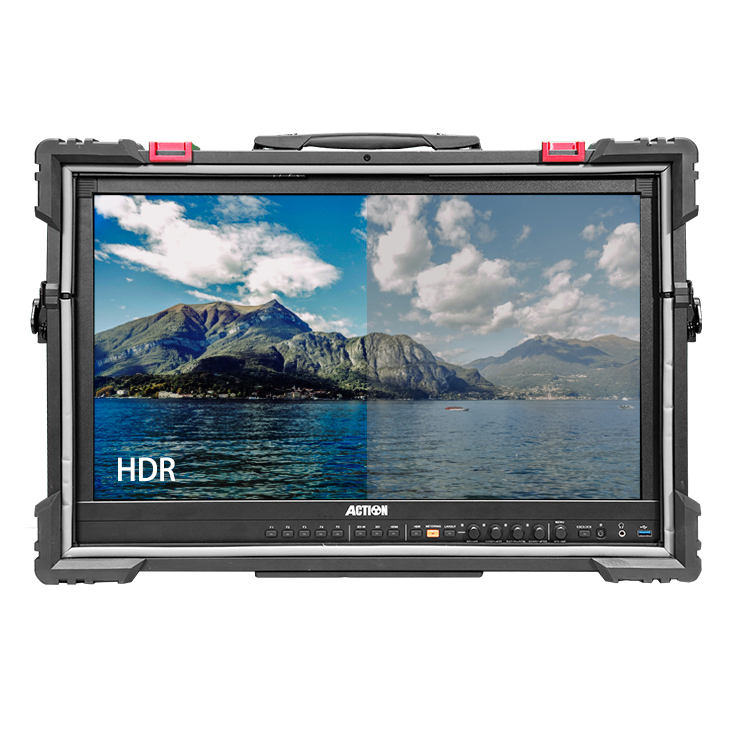

Supports display of HDR, which provides a broader spectrum of colors and contrasts, and allows the showing of more details . Allowing the monitor to be the ultimate choice for both on-set capture and post-production of movie, TV shows, and commercials.
Cover DCI-P3 and Support ITU-R BT.2020
Support quad view, dual view, and single full view. AT-2400HR can receive up to four input signals, and simultaneously display all sources on one screen in real time.
We added Ruige exclusive technology “closed detecting” into AT-2400HR.Easily realizingone-key metering.
AT-2400HR allows users to load customized 3D LUT cude into the monitor by using a flash drive.
Inspired by our highly appraised Armor No. 1 protective case, the Armor No. 2 makes AT-2200HR the rugged and reliable choice for camera crews live on the scene.

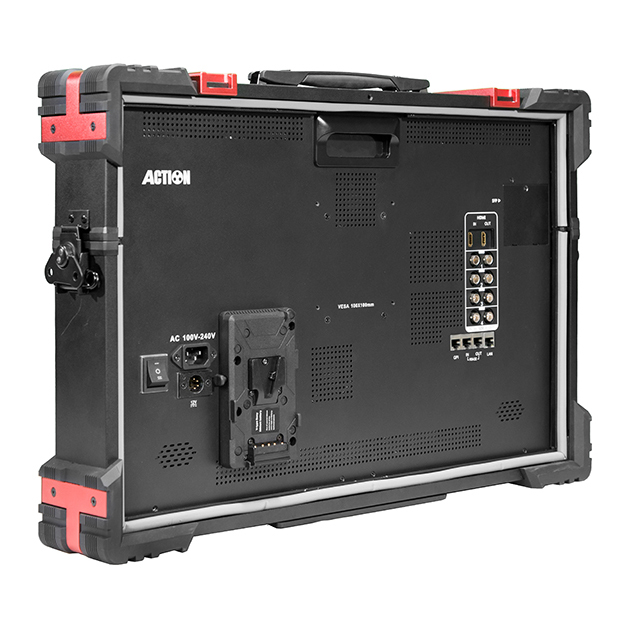

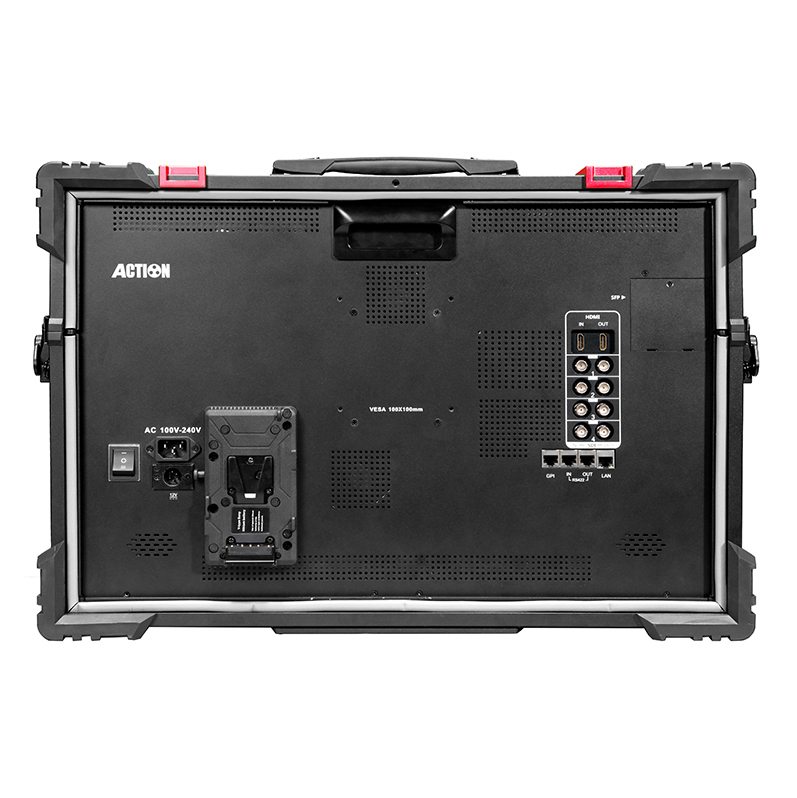

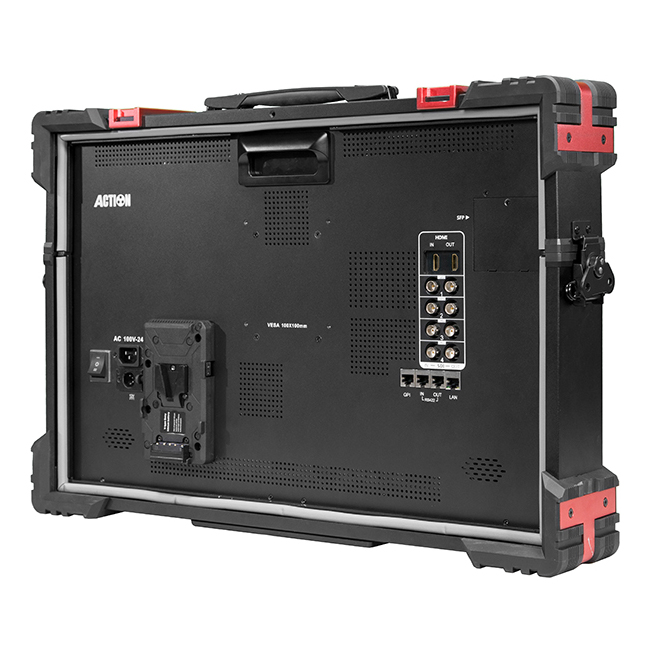

Video In: 12G-SDI/3G-SDI BNC x 4
(2 channels x 12G-SDI 4 channels x3G-SDI)
HDMI 2.0 Type A x 1
SFP+ SFP+x 1 12G Fiber input(Module Optional)
Video Out: 12G-SDI/3G-SDI BNC x 4
(2 channels x 12G-SDI 4 channels x3G-SDI)
HDMI 2.0 Type A x 1

USB Type A
Audio: Audio demultiplexing Support
Audio meter: 16 Channels, Audio Vector
Speakers: 2 channels x8Ω/2W
Headphone: 3.5mm supportResolution: 3840×2160
Dot pitch: 0.13725 (H)×0.13725 (V) mm
Aspect ratio: 16:9 / 4:3 switchable
Back Light: WHITE LED
Brightness(MAX): 1000cd/m2 (Max)
Contrast (MAX): 1000:1

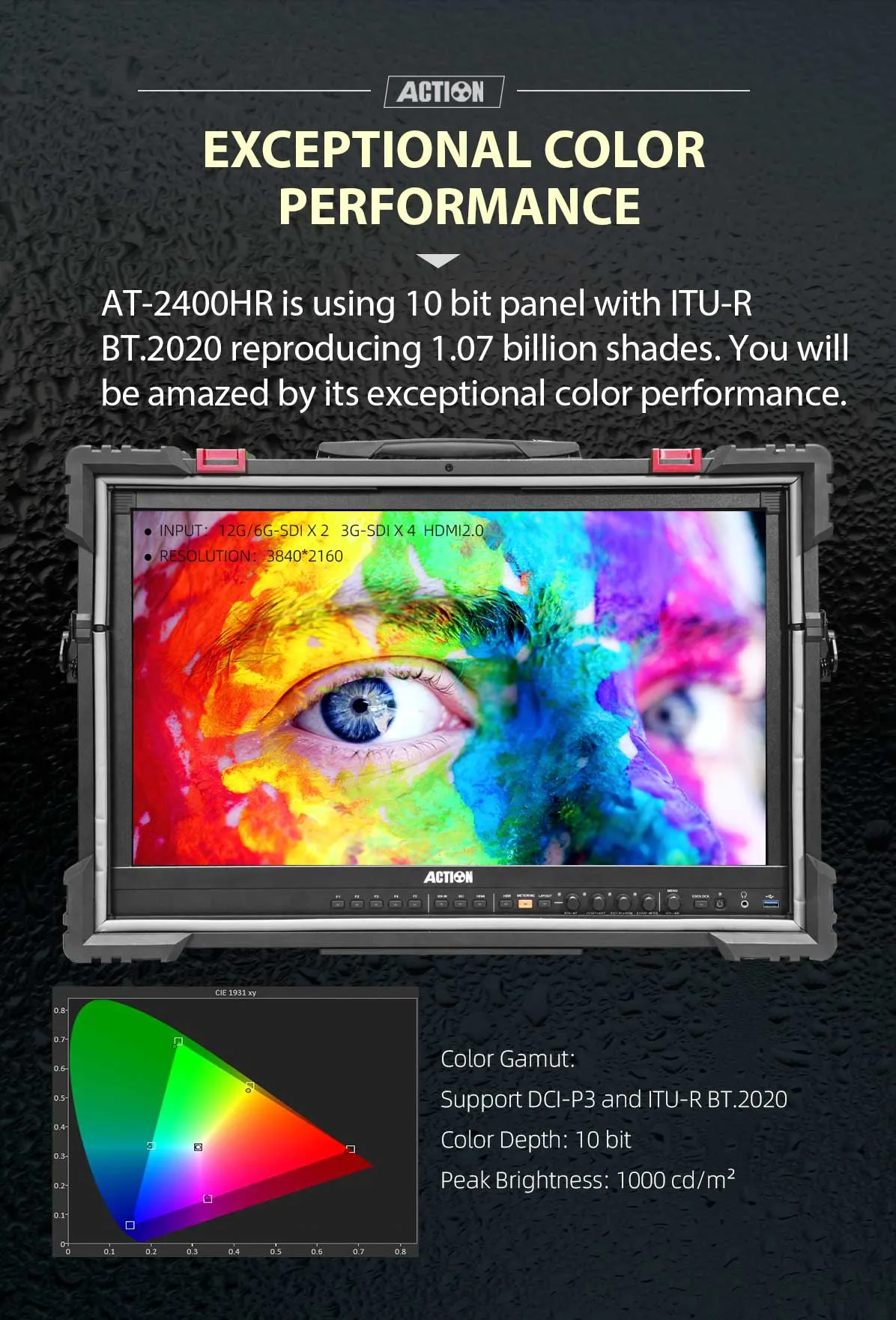

Color depth: 10Bits (1.073G color)
Image processing: 12Bits
Response time: 7ms
Viewing angle: L89°R89°U89°D89°
Color Mode: ITU-R BT.709, DCI-P3, ITU-R BT.2020, Original Color Gamut
HDR（High Dynamic Range）: HLG (ITU-R BT.2100), PQ (SMPTE ST.PQ2048), 2.4HDR, S-log3，V-log
EOTF: 2.2，2.4，2.6, ITU-R BT.2100 (HLG), SMPTE ST.PQ2048(PQ), S-log3，V-log

Features: Metering function, Built in 3D LUT, Luminance wavefrom (HDR/SDR), Vector scope, Histogram, Peaking focus, Zebra, False color, Rapid Positioning of out of Luminance, Audio meters(16 channels), Audio Vector, Safety Marks, Aspect ratio, Mono-chrom switch, GPI, USB (LUT Loading), USB (Firmware upgrades),UMD, IP interface, Built in Multiple LUTS ( Slog2/Slog3/Clog/Nlog/Arrilog/Jlog and User LUTS)，Piture by Piture, Square pictures
