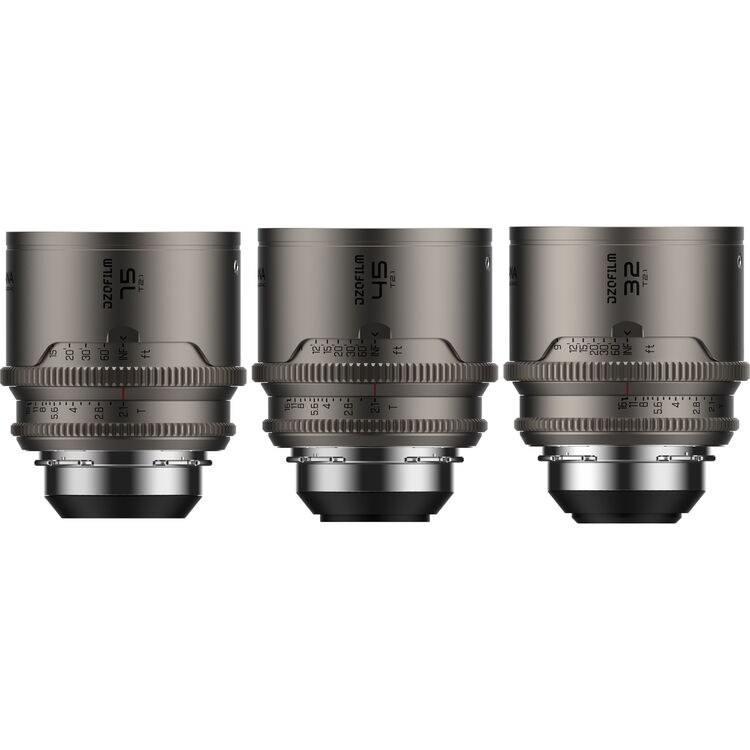

DZO FILM Arcana 32/45/75mm PL Titanium Case Metric Hybrid Anamorphic Prime Lens DZO DZO-ARBUN3PLM

Brand: DZO
Product Code: DZO-ARBUN3PLM
Availability: In Stock

$4,299.00

Description
Reviews (0)

Key Features

Full Frame | T2.1-T16 Aperture Range
32, 45, and 75mm Anamorphic Primes
Neutral Flare, Dramatic Oval Bokeh
1.5x Anamorphic Squeeze
0.8 MOD Gears / 270° Focus Rotation
80mm Front Outside Diameter
High-Resolution Center, Sharp Edges
Refined Titanium Finish
77mm Filter Thread, Includes Hard Case
Compact Form, Consistent Series Design

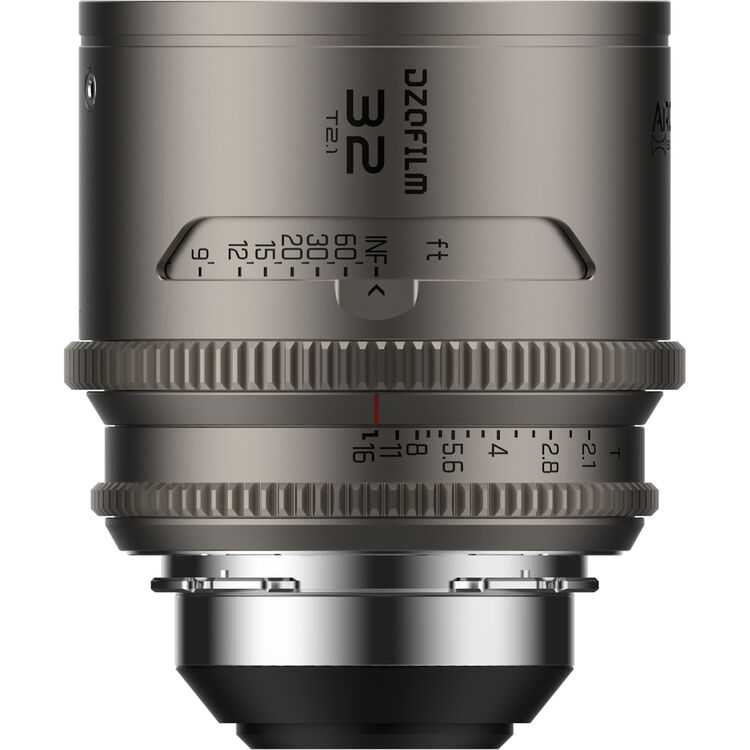

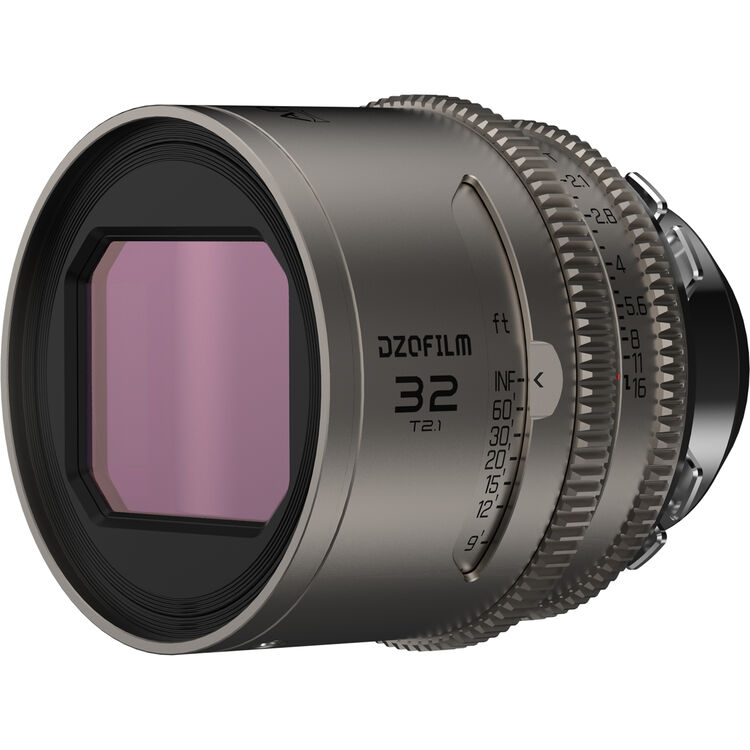

DZOFilm Arcana 32mm Anamorphic Prime Lens (ARRI PL, Titanium)

Sharp 1.5x Anamorphic Coverage

The ARRI PL-mount Arcana 32mm Anamorphic Prime Lens from DZOFilm captures a widescreen look with dramatic oval bokeh and anamorphic flares that take on the color of your lighting source. This compact and lightweight cine-style lens provides a 1.5x anamorphic squeeze for full-frame cameras.

This is Arcana — The New 1.5X Full-frame Hybrid Anamorphic Series From DZOFILM.

Impressive Image Quality

Each lens in the Arcana series uses cylinder, ED (extra-low dispersion), and high-refraction elements to produce an ideal balance between ultrahigh center resolution and edge-to-edge image sharpness.

Oval Bokeh and Flexible Flares

A special white coating enables the Arcana lenses to create flares that transmit the color of your lighting setup. Their 1.5x anamorphic squeeze produces oval bokeh with a more dramatic look than a 2.0x anamorphic lens.

Compact Form with Titanium Finish

Arcana 1.5x lenses are lightweight and compact, sharing near identical weights and lengths, letting you quickly and easily swap lenses on your camera or gimbal rig. Each lens has an 80mm front outside diameter and a 77mm filter thread, and it offers 270° focus rotation for precise focus pulls. A titanium finish lends a refined look to the Arcana lens series.

ARRI PL Mount

This lens comes with an ARRI PL mount, enabling you to use it with a variety of cine-style cameras.

UPC: 842463106475

Sharp 1.5x Anamorphic Coverage

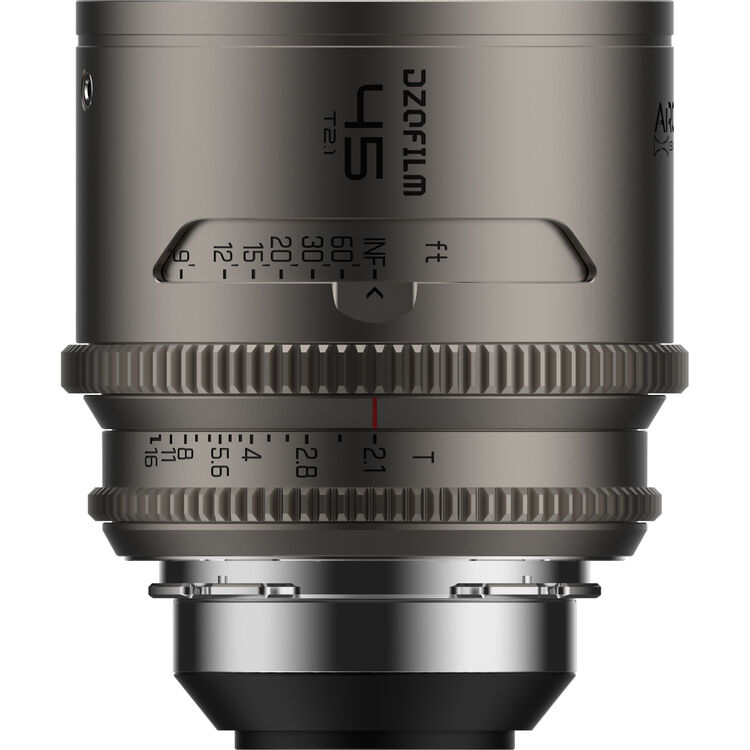

The ARRI PL-mount Arcana 45mm Anamorphic Prime Lens from DZOFilm captures a widescreen look with dramatic oval bokeh and anamorphic flares that take on the color of your lighting source. This compact and lightweight cine-style lens provides a 1.5x anamorphic squeeze for full-frame cameras.

Impressive Image Quality

Each lens in the Arcana series uses cylinder, ED (extra-low dispersion), and high-refraction elements to produce an ideal balance between ultrahigh center resolution and edge-to-edge image sharpness.

Oval Bokeh and Flexible Flares

Compact Form with Titanium Finish

ARRI PL Mount

This lens comes with an ARRI PL mount, enabling you to use it with a variety of cine-style cameras.

UPC: 842463106482

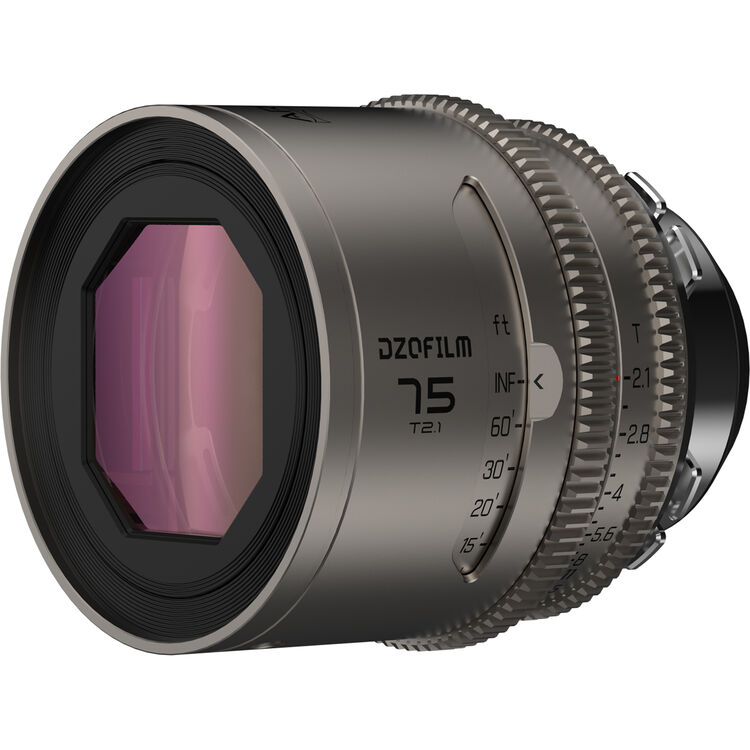

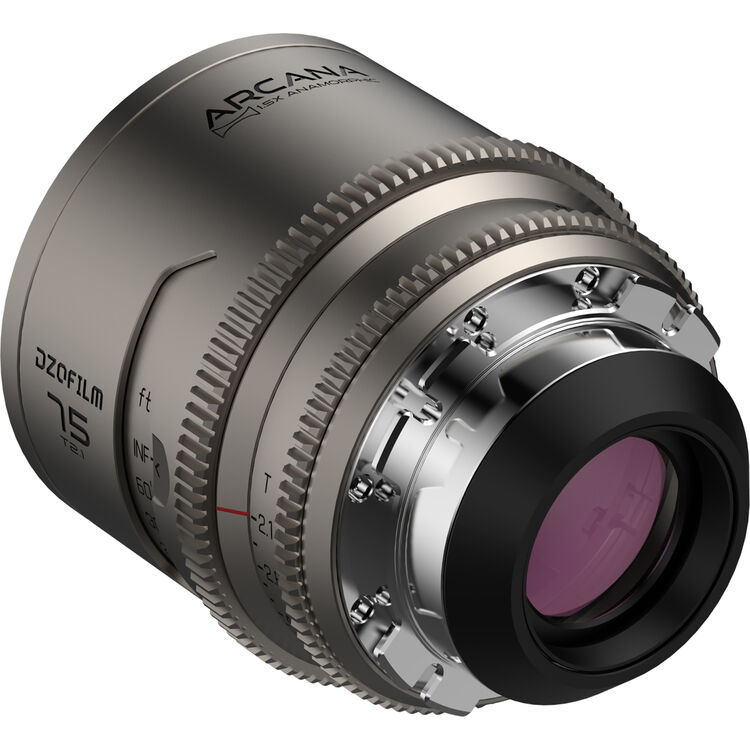

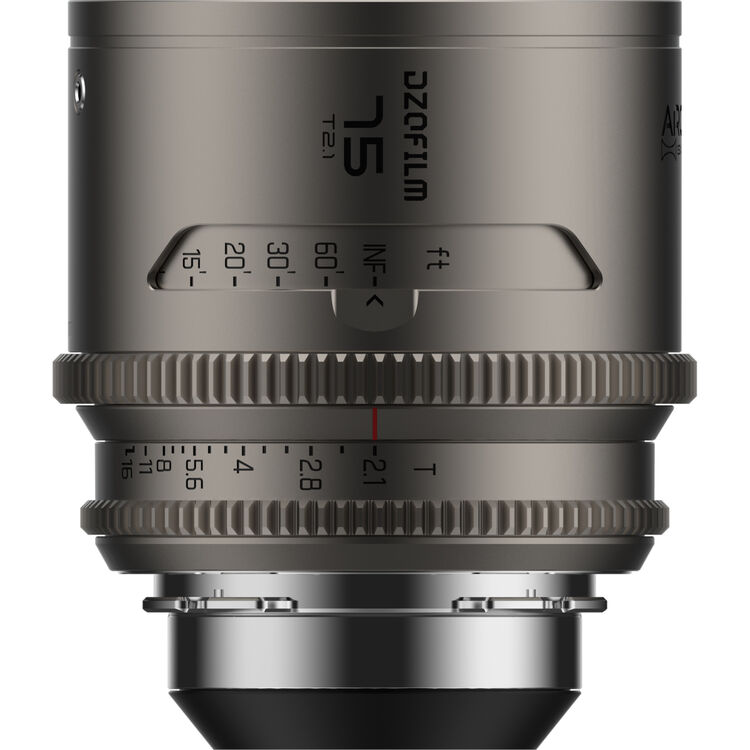

DZOFilm Arcana 75mm Anamorphic Prime Lens (ARRI PL, Titanium)

Sharp 1.5x Anamorphic Coverage

The ARRI PL-mount Arcana 75mm Anamorphic Prime Lens from DZOFilm captures a widescreen look with dramatic oval bokeh and anamorphic flares that take on the color of your lighting source. This compact and lightweight cine-style lens provides a 1.5x anamorphic squeeze for full-frame cameras.

Impressive Image Quality

Each lens in the Arcana series uses cylinder, ED (extra-low dispersion), and high-refraction elements to produce an ideal balance between ultrahigh center resolution and edge-to-edge image sharpness.

Oval Bokeh and Flexible Flares

Compact Form with Titanium Finish

ARRI PL Mount

This lens comes with an ARRI PL mount, enabling you to use it with a variety of cine-style cameras.

UPC: 842463106499

Items Included

Front Cap
Rear Cap
Shim Set
Screw Set
T6 Screwdriver
Focal Length Sticker
Logo Sticker
Limited 1-Year Manufacturer Warranty

Front Cap
Rear Cap
Shim Set
Screw Set
T6 Screwdriver
Focal Length Sticker
Logo Sticker
Limited 1-Year Manufacturer Warranty

Front Cap
Rear Cap
Shim Set
Screw Set
T6 Screwdriver
Focal Length Sticker
Logo Sticker
Limited 1-Year Manufacturer Warranty

Hard Case

Trace the Light, Master the Flare

The mysterious world of "Arcana" offers a brand new way to look at anamorphic lenses. The DZOFILM ARCANA series Hybrid Anamorphic lens perfectly balances wide cinematic images with a small, lightweight design. By mixing great optics with smart engineering, these lenses help you discover new ways to tell your story.

Hybrid Anamorphic For
Ultimate Visual Quality

By pairing a cylindrical lens with an oval aperture, the Arcana series overcomes the size and image quality constraints of traditional full-frame anamorphic lenses. Our 700g lightweight design delivers exceptional resolution and ultra-low dispersion, while the rendering maintains the iconic bokeh and lens flare of high-end 2X anamorphic glass. It is the perfect balance of portability and elite image quality.

2X Bokeh, The Soul of Cinema

The entire series features a dynamic oval aperture design, ensuring a consistent oval bokeh at every T-stop. When paired with our 1.5x anamorphic front cylindrical elements, it effortlessly produces the 'waterfall' bokeh of 2x anamorphic lenses. The T2.1 aperture delivers a high-end cinematic look across the line, easily isolating the subject to create the immersive, three-dimensional depth typical of larger formats.

1.5X

Squeeze

Signature Optics

T2.1

Large Aperture

Front-facing cylindrical,
Neutral Flare

Featuring a classic front-cylindrical design, these lenses embrace signature barrel distortion and a constant squeeze ratio, effectively eliminating the 'mumps' effect. This consistency reduces the burden on post-production while allowing the iconic anamorphic horizontal flares to dance with the light, rendering infinite colors from different light source.

Compact Size,
Ultimate Light

A robust all-aluminum alloy housing finished with an all-new titanium-tone anodization. The entire series features a lightweight design of approximately 700g, more portable than any previous DZOFILM optics.

With a class-leading minimum focus distance of 0.48-0.78m, it allows for effortless control during solo handheld, gimbal-mounted setups, or when integrated with the DJI Ronin 4D.

Versatile Compatibility,
Infinite Expansion

80mm front diameter with 77mm thread; compatible with standard circular filters and matte box mounting. The 21mm rare lens element design ensures compatibility with VND filter adapters and auto-focus adapters. Furthermore, the PL mount features a multi-point positioning design for vertical shooting, allowing for easy adaptation to seamless integration with a wide range of cinema cameras and mirrorless systems.

Specification

Focal Length	32 mm	45 mm	75 mm
Colour	Titanium
Mount	PL
Aperture	T2.1-16
Image Circle	φ43.3mm (36nmx24mn)
Construction of Optics	15 Elements in 13 Groups	15 Elements in 13 Groups	15 Elements in 11 Groups
Angle of view(horizontal,vertical	97.0(H) X 41.4(V)	70.0(H) X 30.2(V)	42.6.0(H) X 18.8(V)
Close Focus(from sensor plane)	0.48m / 1ft7in	0.53m / 1ft9in	0.78m / 2ft7in
Max.Mag.Ratio	0.092	0.111	0.116
Squeeze Factor	1.5X
Iris Control	Manual (52.26°)	Manual (51.96°)	Manual (59.53°)
Focus Control	Manual 270°
Front Dia.	φ80mm
Length(from lens front to flange plane)	80mm
Iris Blade	14
Filter Size	M77
Gear Pitch	0.8 Mod
Material	Aluminum Alloy
Weight (Product)	709g	695g	709g
