DZO Film Pictor Zoom 2-lens kit 20-55 & 50-125 T2.8 Cine Zoom Lens PL & EF ARRI

Brand: DZO
Product Code: DZO-7220001B/ 2B-BUNDLE
Availability: In Stock

$3,589.67

Qty

Description
Reviews (0)

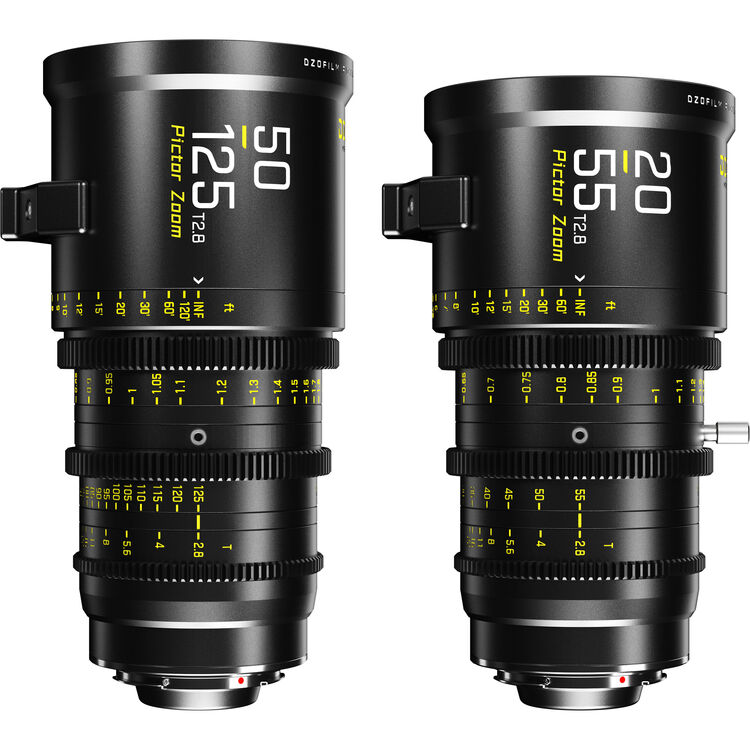

This bundle of the Pictor 20-55mm and 50-125mm T2.8 Super35 Zoom Lens from DZO consists of two lenses with a standard black finish, making them less likely to be seen in on-set reflections. The lenses provide coverage of an extended zoom range with a relatively fast maximum aperture. Both cover Super35 sensors and have similar lengths, weight, lens gear positions, and front outer diameter, making for fast lens swaps.

Each lens comes standard with a PL mount and includes a Canon EF Mount, for compatibility with a wide range of digital cinema cameras. The lenses hold focus throughout the focal length range and feature matching 16-blade irises for producing round out-of-focus highlights. This bundle includes a durable protective case for transport and storage.

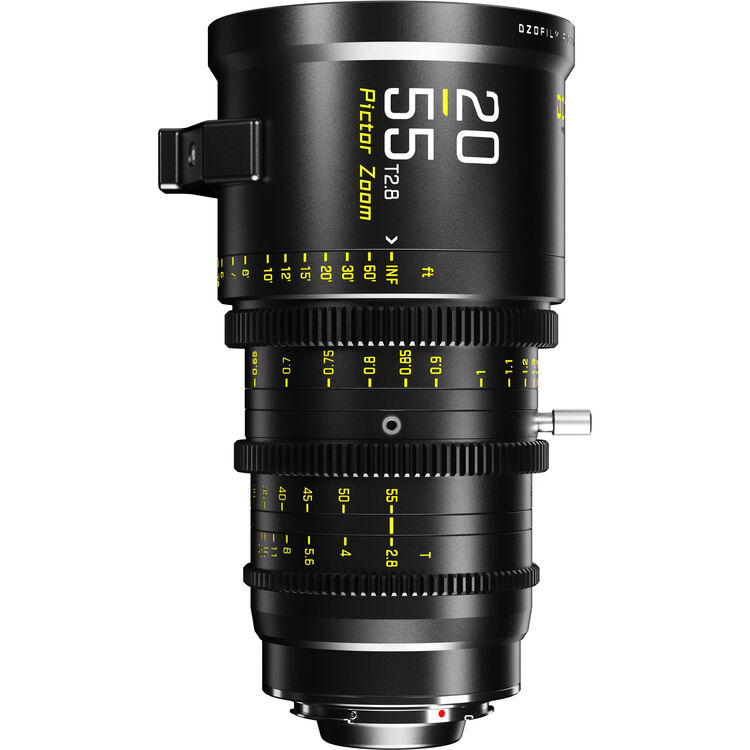

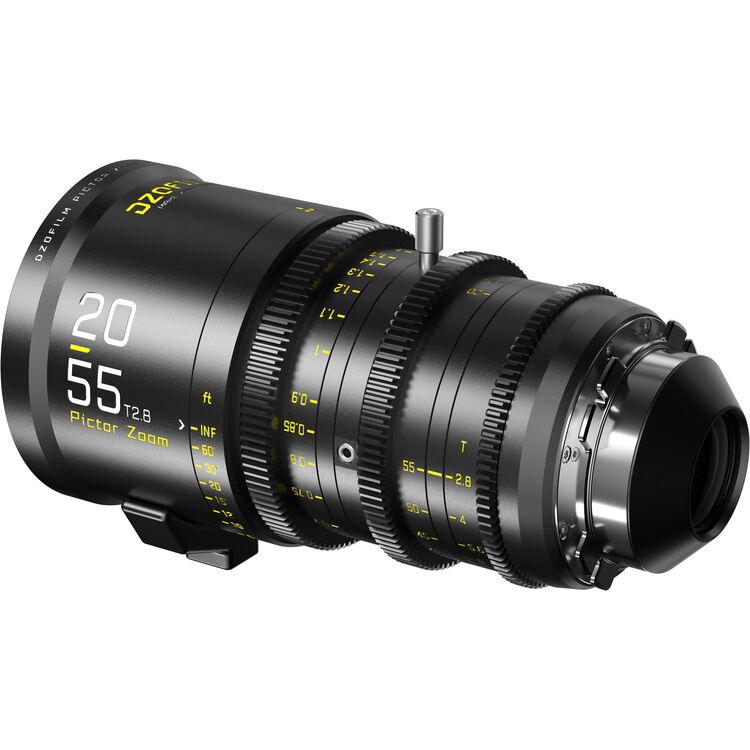

DZOFilm Pictor 20-55mm T2.8 Super35 Parfocal Zoom Lens (PL Mount and EF Mount)

A parfocal cine lens, the DZO Pictor 20 to 55mm T2.8 Super35 Parfocal Zoom Lens features a relatively fast maximum aperture of T2.8 with an aperture range of T2.8 to T22. As you would expect from a cinema-style zoom, the lens is parfocal, meaning it holds focus throughout the zoom range. The internal focus design with floating elements virtually eliminates focus breathing. It covers a Super35 image circle, comes standard with an interchangeable PL mount, and includes an EF mount.

The 16-blade iris creates round out-of-focus highlights, which have a more natural appearance and contribute to the lens's natural-looking bokeh. The lens features cine-style gear rings on the focus, iris, and zoom lens rings, making it compatible with cine-style lens accessories such as follow focus units, lens motors, and lens control systems. The 95mm outer front diameter allows you to use a variety of compatible third-party matte boxes, and the lens has an 86mm filter thread. A lens support foot allows you to support the lens on rods to help reduce strain on your camera's lens port.

Note:

Please Note: According to the manufacturer, when converted to EF mount this lens is not compatible with DSLR cameras that have an EF mount. However, it is compatible with mirrorless cameras that have an EF mount, including Blackmagic Design cameras.

Key Features

Maintains focus throughout the zoom range
Minimal breathing
16-blade iris produces round out-of-focus highlights
T2.8 to T22 aperture
95mm front diameter
Compatible with standard cine-style lens accessories

UPC: 842463102019

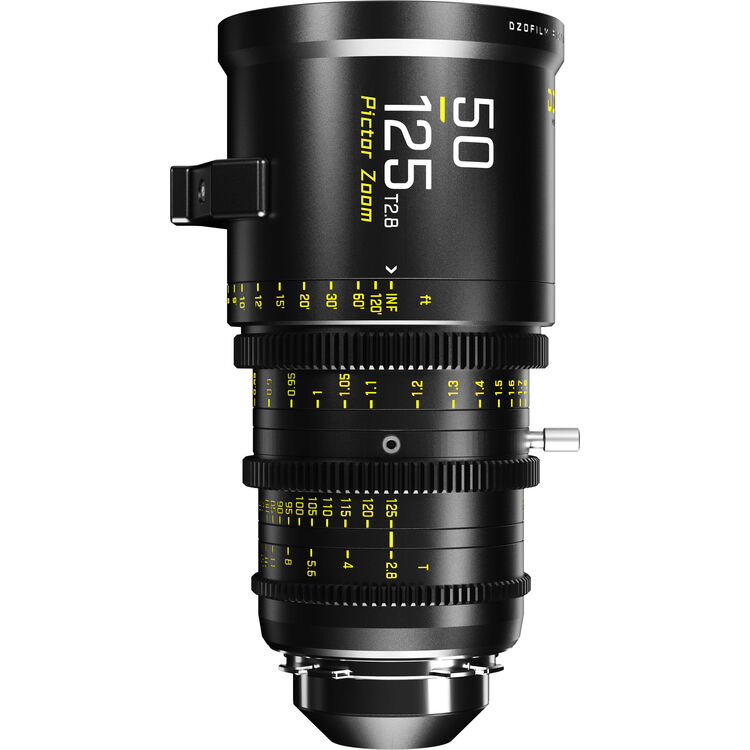

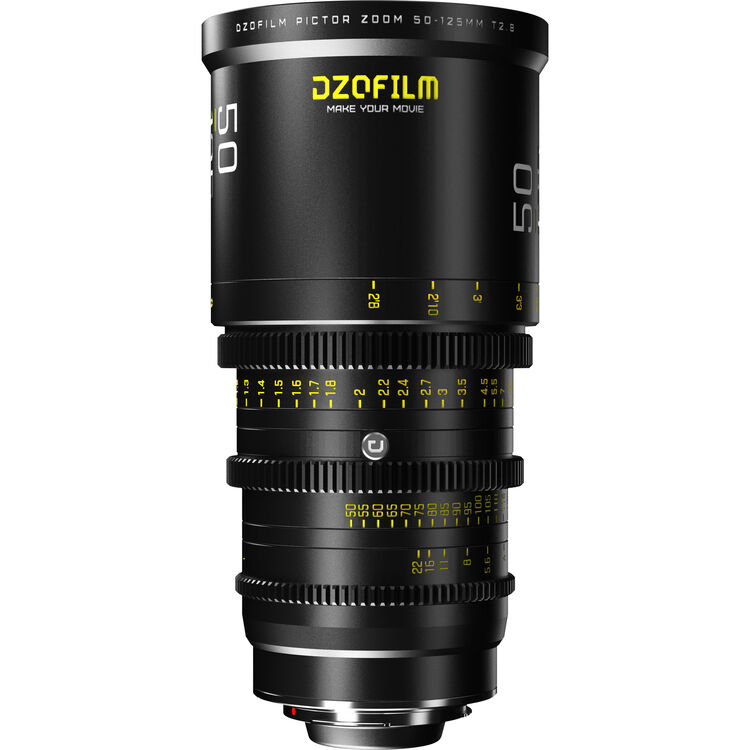

DZOFilm Pictor 50-125mm T2.8 Super35 Parfocal Zoom Lens (PL Mount and EF Mount)

A parfocal cine lens, the DZO Pictor 50 to 125mm T2.8 Super35 Parfocal Zoom Lens features a relatively fast maximum aperture of T2.8 with an aperture range of T2.8 to T22. As you would expect from a cinema-style zoom, the lens is parfocal, meaning it holds focus throughout the zoom range. The internal focus design with floating elements virtually eliminates focus breathing. It covers a Super35 image circle, comes standard with an interchangeable PL mount, and includes an EF mount.

Note:

Key Features

Maintains focus throughout the zoom range
Minimal breathing
16-blade iris produces round out-of-focus highlights
T2.8 to T22 aperture
95mm front diameter
Compatible with standard cine-style lens accessories

UPC: 842463102026

Items Included

Pictor 20-55mm

Front Lens Cap
Rear Lens Cap
Zoom Stick
Canon EF-Mount with Cap
Limited 1-Year Manufacturer Warranty

50-125mm

Front Lens Cap
Rear Lens Cap
Zoom Stick
Canon EF-Mount with Cap
Limited 1-Year Manufacturer Warranty

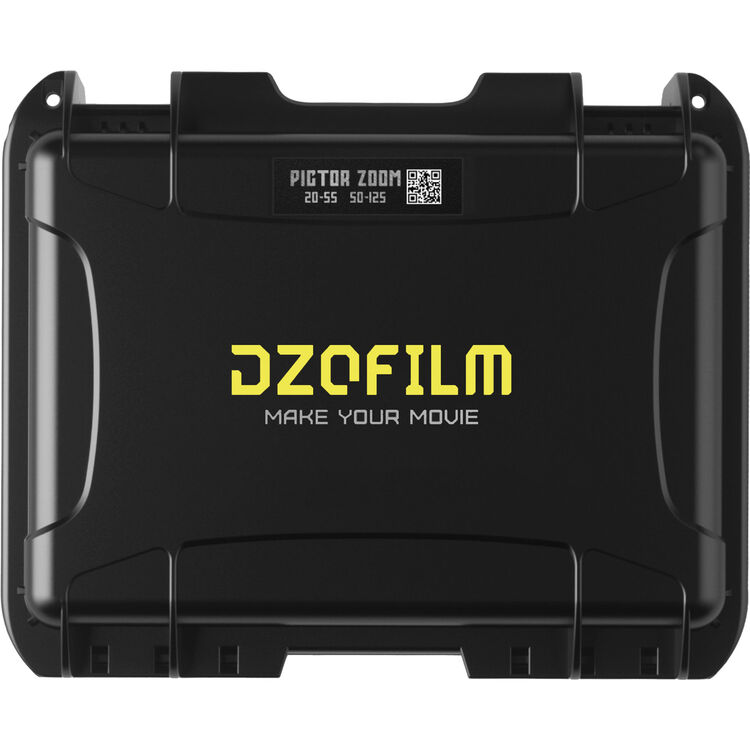

Lens Case

Wider, Closer For Deeper Image Immersion

Get as close as 0.4m (15.74’’) - closer than your arm can reach. This cine zoom lens is perfect for those tight shooting spaces. It delivers exceptional close-up performance with precisely controlled field curvature, allowing cinematographers to create intimate framing that pulls audiences deeper into the narrative.

A Creative Vision
Inspires Brilliant Ideas

See beyond human vision - the 12-25mm opens up a world wider than your eyes can take in. The perspective effect of ultra–wide angle draws attention to the foreground while enhancing the depth of field and tension. Even shooting at maximum wide-open aperture, you’ll find the distortion stays remarkably in check - ideal for creating majestic and surreal images in film production.

Explore
Wider Horizon

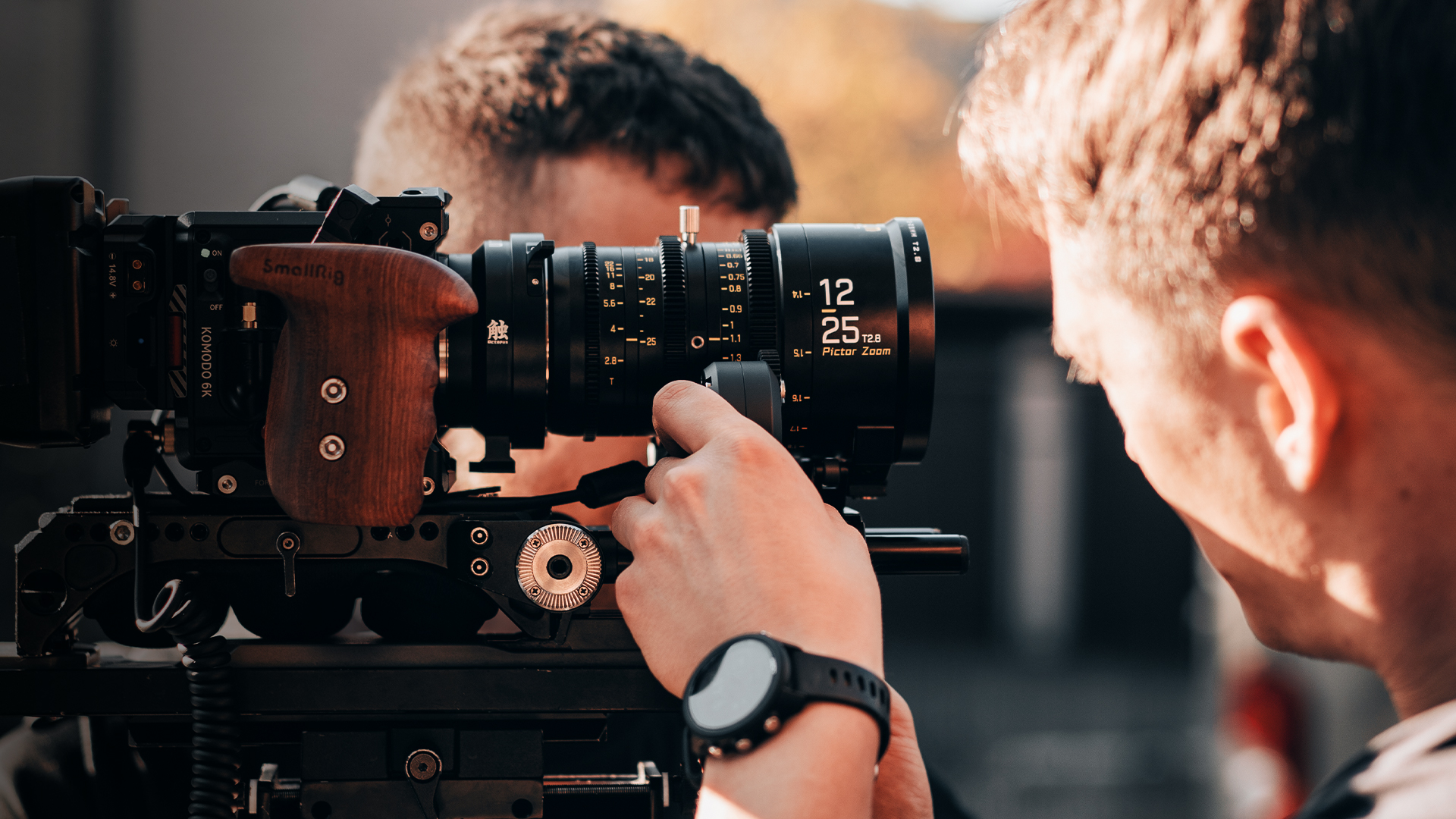

DZOFILM Pictor 12-25mm T2.8, the latest Super 35 wide-angle lens, captures wide shots with ease. Team it up with the Pictor 14-30mm, 20-55mm & 50-125mm, and you’ve got a complete arsenal ready for any shot your story demands.

Correlated and
Sense of Space

Deeper DOF and wider FOV captures broaderwider background. Each frame of this wide-angle cinema zoom lens becomes a living canvas where characters breathe with their environment, while the zoom lens’s unique characteristics create compelling separation between foreground and background elements. It’s not just about capturing space - it’s about mastering it for maximum dramatic impact.

Capturing

Turn perspective into power. When you need your shots to speak louder than words, The distortion of the wide angle lens exaggerates emotion of characters and highlights the dramatic expression, turning fleeting moments into powerful visual statements.

Visual Effect

Capturing exaggerating movement, aggrandizes the rhythm of image and enhances the
visual impact in the story.

Professional Cine Lenses with Concrete Build

DZOFILM is devoted to exploring the aesthetic of film and design of optics. Both mechanics and optics are
designed to be compact and versatile, allowing users to enjoy the smooth and precise operation and
every shooting moment with Pictor Zoom.

every shooting moment with Pictor Zoom.

Standard M0.8 Gear Pitch
Focus Rotation Angle
All-metal Mechanical Parts

Parfocal Design

Center image stay sharp during zooming in or out.

True parfocal performance of a zoom lens means your focus stays locked from close-up to wide, and everything in between, essential for fast-paced documentary shoots. It’s the kind of reliability that lets you focus on storytelling, not focus pulling.

Minimal Breathing

Thanks to the floating structure, the breathing of Pictor Zoom lenses are negligible during focusing.

Versatile in Ultra compact

At just 1.6kg (3.5 lbs), Pictor zoom can be easily mounted on a crane, jib, tripod, ROV and other moving platforms - Less weight means more creative freedom and safer operation.

Be a better run-and-gun filmmaker with no fear of complicated scenes or quick shooting. When every second counts, one versatile zoom lens for film-making keeps you in the action - no missed moments, no lens swaps. Use Pictor zoom, and never miss an inspiring moment.

Gentle Sharpness & Vivid Look

From feature film, commercial, to documentary, Pictor Zoom captures crisp details
while expressing organic look and cinematic texture.

[Spot Effect]
Increases Sense of
Separation

Dreamatic Bokeh & Esthetic Transition

During the focus fall-off, 16 blades T2.8 iris generated soft bokeh. The natural transition from focus to de-focus conveys the ambiance and highlights the subject.

Speed up Your Shooting!

Consistent Design & Higher Efficiency

Delivering consistent color reproduction and mechanical precision to meet rigorous production demands. Standard M0.8 gear rings ensure integration with your existing follow focus system, while multiple mounting options enhance operational flexibility. Every detail is engineered for efficient, professional workflow on set.

Seek for More Possibility

This cinema zoom lens offers interchangeable PL and EF mounting design. With Octopus adapters, this lens maximize compatibility with cinema cameras featuring X, L, RF, E, and DX mounts, provides more shooting possibilities.

PARAMETER

FOCAL LENGTH	12-25 mm	14-30 mm	20-55 mm	50-125 mm
colour	Black / White
MOUNT	PL / EF
T-STOP	T2.8-22
Image Circle	φ31.5mm(S35)
optical construction	21 Elements in 15 Groups	21 Elements in 17 Groups	18 Elements in 15 Groups	18 Elements in 13 Groups
Flange Distance	52mm(PL) / 44mm(EF)
CLOSE FOCUS (from sensor plane)	0.4m/1ft4in	0.6m/2ft		0.8m/2ft8in
ZOOM Ratio	2.08X	2.14X	2.75X	2.5X
Iris control	64.4°	61°	65°	72°
FOCUS control	270°
ZOOM control	100°
FRONT DIA.	φ95mm/3.74"
LENGTH	150mm(PL)5.9"/ 159mm(EF)6.26"	173mm(PL)6.81"/ 181mm(EF)7.13"	164mm(PL)6.46"/ 171.9mm(EF)6.77"	175mm(PL)6.89"/ 182.9mm(EF)7.20"
Iris blade	16
FILTER SIZE	M86*0.75
Gear Pitch	0.8 Mod
material	Aluminum Alloy
WEIGHT	≈1600g	≈1880g	≈1520g	≈1700g
