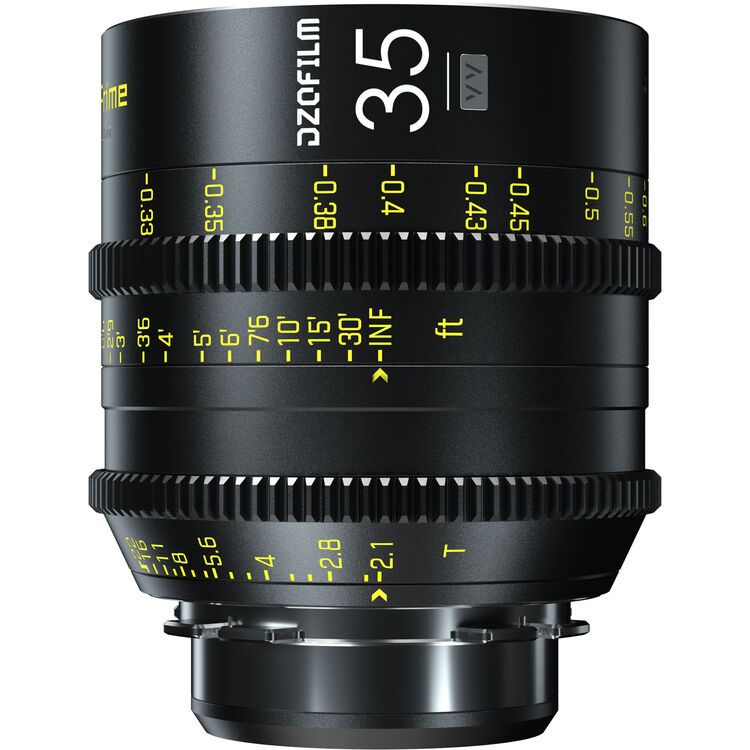

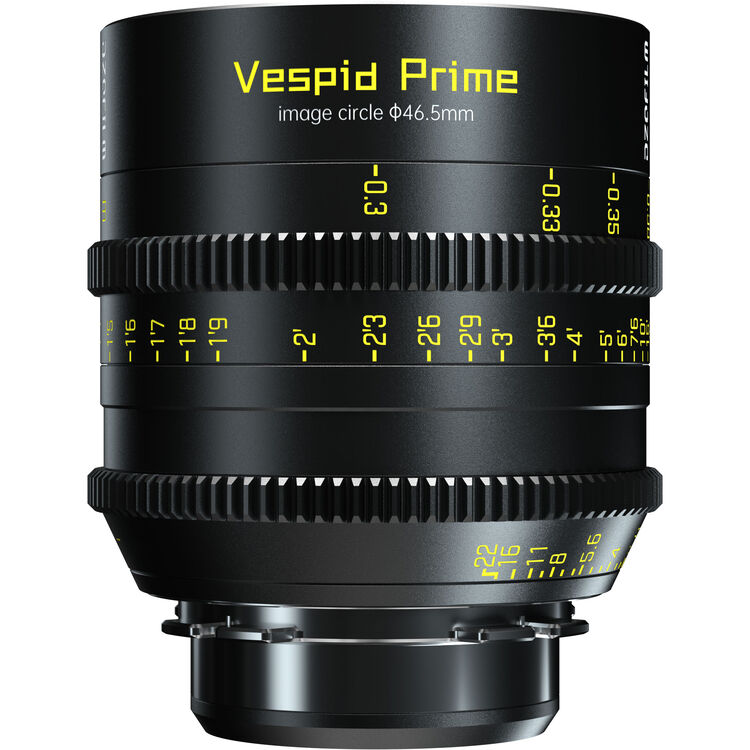

DZO FILM Vespid Prime FF 35mm T2.1 Cine Lens ARRI PL & Canon EF SONY RED Camera

Brand: DZO
Product Code: DZO-V03521PL
Availability: In Stock

$1,062.67

Qty

0 reviews / Write a review

Description
Reviews (0)

Key Features

Covers Full-Frame Sensors
T2.1 to T22 Aperture Range
80mm Front Diameter
16-Blade Iris
Cinema Gearing for Focus and Iris
270° Focus Rotation
Magnetic Rear Clear/ND Filter

Relatively small and lightweight, the DZOFilm VESPID 35mm T2.1 Lens is part of the VESPID series of lenses from DZOFilm and is well suited for independent and high-end full-frame cinematography. The lens has an 80mm front diameter, allowing it to work with virtually any cine-style matte box. The small size makes this lens an attractive option when working with drones and gimbals, as well as when shooting handheld or run-and-gun. The interchangeable PL mount and included EF mount allow you to use the fully manual lens on a variety of modern and vintage cine cameras, while the full-frame coverage supports sensors that have an image circle up to 46.5mm for use on cameras with sensors up to full-frame without vignetting..

The 16-blade iris, which is consistent throughout the VESPID prime lens lineup, creates round out-of-focus highlights that have a more natural appearance and contribute to the lens's natural-looking bokeh. The focus ring features 270° of rotation for precise focus pulls, and the iris ring has a generous 63° of rotation. Cine-style gear rings on the focus and iris rings make the lens compatible with cine-style lens accessories such as follow focus units, lens motors, and lens control systems.

This 35mm lens has an image circle that covers a full-frame sensor. When mounted on a camera with a Super35 sensor, it provides you with a tighter shot than if mounted on a camera with a full-frame sensor.

The lens features metal construction to withstand the rigors of daily production.

The common 80mm front diameter allows for quick lens changes as you don't have to swap out antireflection donuts or adapters to use the same matte box.

A minimum focusing distance of 12" allows you to get up close to your subject.

UPC: 842463104020

Gorgeous Bokeh, Aesthetic Appeal

Designed for professional cinematography, Vespid primes excel in optical precision, effectively controlling aberrations for remarkable resolution and true-to-life colors. They create soft and natural bokeh for organic and emotional images with smooth focus transitions, while their internal design minimizes focus breathing. This makes them ideal for everything from subtle focus transitions in dialogue scenes to dynamic documentary work.

Precise Mechanism, Smooth Operation

As professional cine prime lenses, the lenses are fully manual with 270°of focus rotation, giving you smooth and accurate focus control. The shared position of the focus and iris gears across the lens set allows for fast lens changes with minimal adjustment of lens accessories. The focus and iris rings are smooth to operate, allowing for precise adjustments to focus and exposure.

Broad Perspectives
Infinite Creativity

Vespid 12mm offers a diagonal field of view of 126° on Vista Vision format, with a horizontal view of 119° and a vertical view of 81°. While the ultra-wide-angle composition boosts cinematic and dramatic effects, the extremely expansive visual field offers stunningly rich details. This opens up more opportunities for visual storytelling.

Cine-standard Design for
Versatile Applications

Comprising 11 focal lengths from ultra-wide to standard and telephoto, the Vespid cine prime series adapts to diverse shooting scenarios. A comprehensive design adhering to industry standards ensures a consistent visual style.

Compatible with Vista Vision large-format sensors, these primes meet the varied demands of independent filmmaking and large-scale productions - Remember, nearly every movie you’ve ever seen is mainly shot with primes.

Compact and Solid Build

These lenses housing are crafted from a durable aluminum alloy, making them robust and reliable in various environments. Their compact, lightweight design makes them ideal for handheld, gimbal, and drone work.

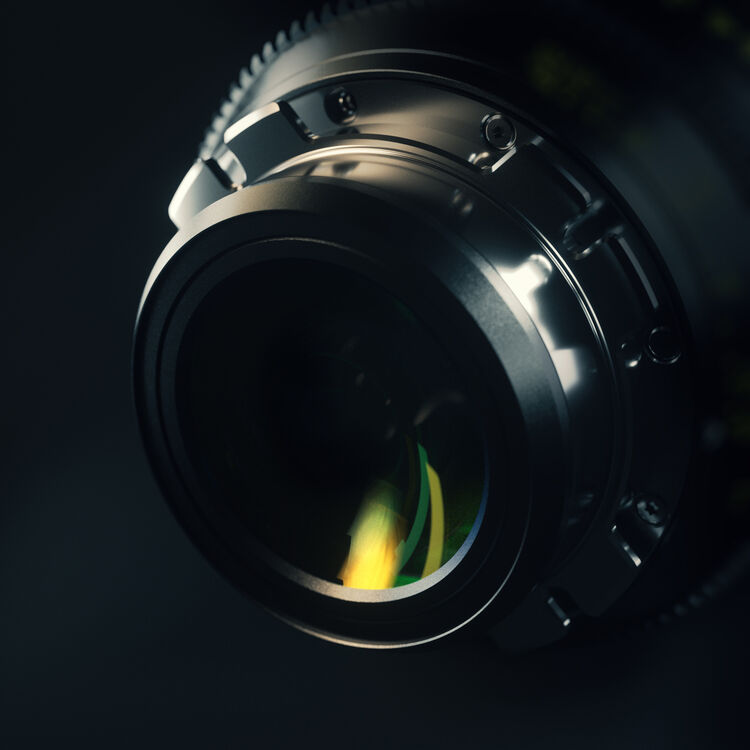

Inclusive Compatibility, Unlocking Potential

Vespid Prime lenses come with a versatile interchangeable PL and EF mounting system, compatible with Octopus adapters. Additionally, with a 77mm filter thread, they accommodate various filtration options. Including a prime or two in any camera bag ensures you’re ready for any shooting scenario.

PARAMETER

Focal Length	12 mm	16 mm	21 mm	25 mm	35 mm	40 mm	50 mm	75 mm	90 mm	100 mm	125 mm
colour	Black
Mount	PL / EF
Aperture	T2.8-T22		T2.1-T22						T2.8-T22	T2.1-T22
image circle	φ46.5mm(VV/FF)
Construction of Optics	15 Elements in 10 Groups	14 Elements in 10 Groups	13 Elements in 9 Groups	12 Elements in 11 Groups	11 Elements in 9 Groups	10 Elements in 9 Groups	9 Elements in 7 Groups		11 Elements in 9 Groups	9 Elements in 7 Groups	10 Elements in 8 Groups
Flange Distance	52mm(PL)/44mm(EF)
Close Focus (from sensor plane)	0.2m/8in	0.25m/10in	0.28m/11in	0.3m/1ft			0.46m/1.6ft6in	0.6m/2ft	0.258m/10.2in	0.7m/2ft4in	0.79m/2ft7in
Max.Mag. Ratio	/								1.5X	/
Iris control	Manual (75°)	Manual (50°)	Manual (68°)		Manual (63°)	Manual (68°)	Manual (58°)	Manual (68°)		Manual (83°)	Manual (84°)
Focus control	Manual (270°)								Manual (300°)	Manual (270°)
front Dia.	∮80mm/3.15"
Length (from lens front to ﬂange plane)	72mm/2.83"	87mm/3.43"		100mm/3.94"	87mm/3.43"				112mm/4.41"	100mm/3.94"
Iris Blade	10	16
Filter Size	M77	/	M77
Gear Pitch	0.8 Mod
material	Aluminum Alloy
Weight (Product)	≈725g	≈930g	≈880g	≈1021g	≈962g	≈905g	≈857g	≈887g	≈839g	≈945g	≈981g
