DZOFILM Pavo 6 lens Set 28/32/40/55/75/100mm 2x Anamorphic Prime Lens Neutral

Brand: DZO
Product Code: DZO-PA6PLIN
Availability: In Stock

$21,399.00

Qty

0 reviews / Write a review

Description
Reviews (0)

Key Features

28, 32, 40, 55, 75, 100mm Focal Lengths
Lenses Cover Super35 Format
Interchangeable PL/EF Mount
Focus Marks in Feet
EF Bayonet Included
2 Hard Cases Included

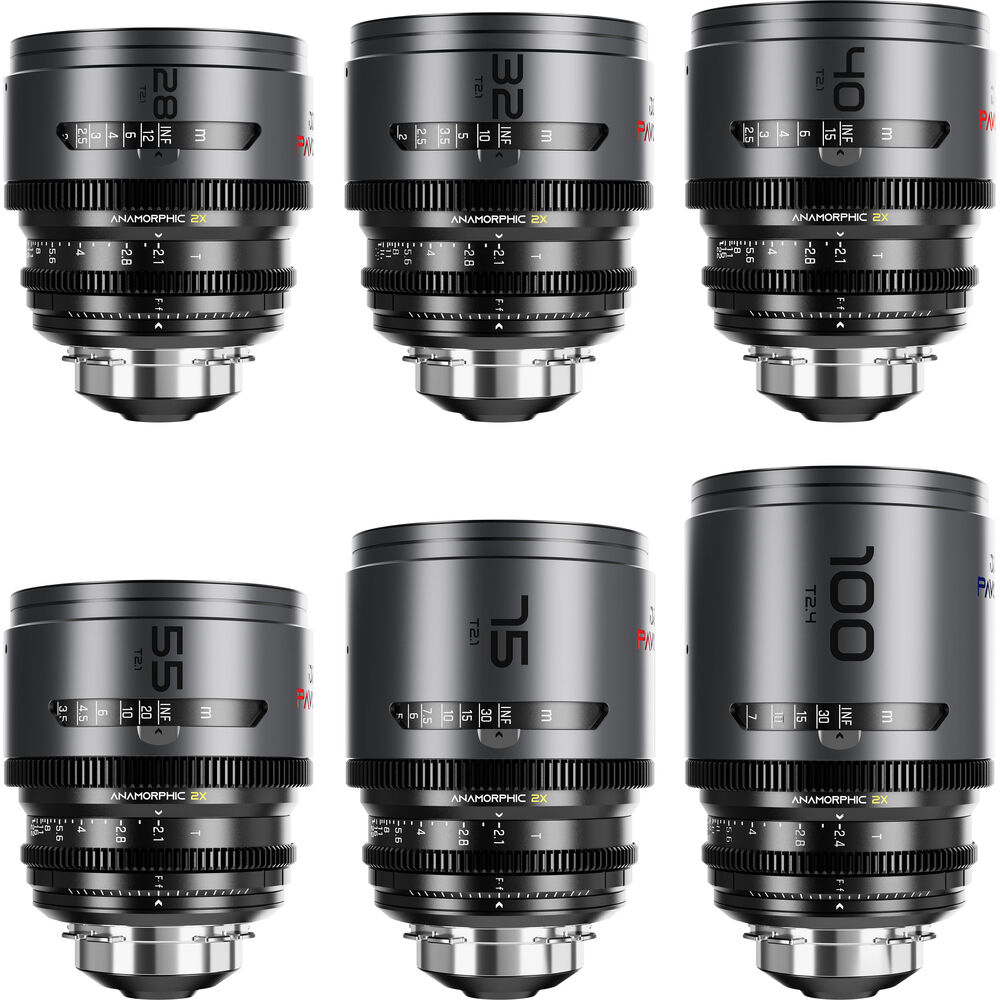

Capture stunning cinematic images with a vintage anamorphic look using this PAVO 2x Anamorphic 6-Lens Set from DZOFilm. Designed to cover the Super35 sensor of cine-style cameras, this set of neutral-coated lenses includes six focal lengths (28mm, 32mm, 40mm, 55mm, 75mm, and 100mm). The lenses come in two separate hard cases, each holding three lenses with their respective, included accessories.

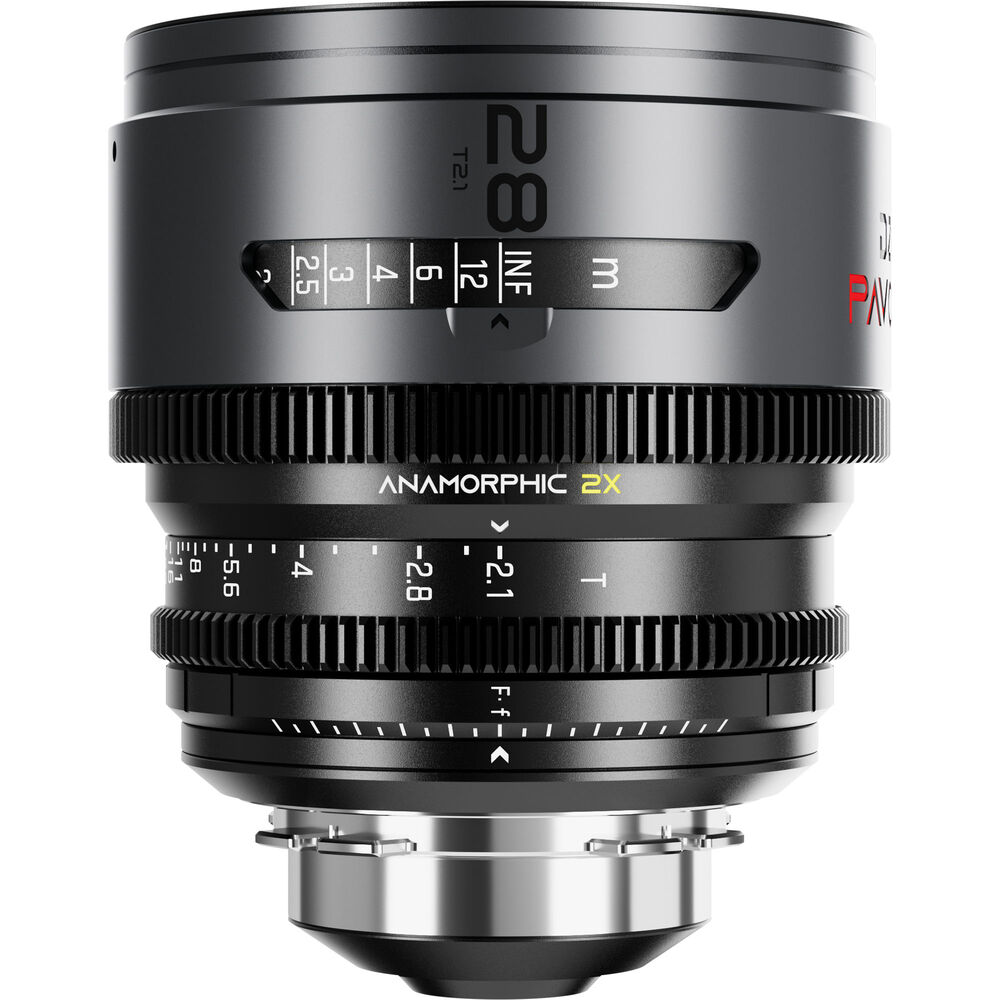

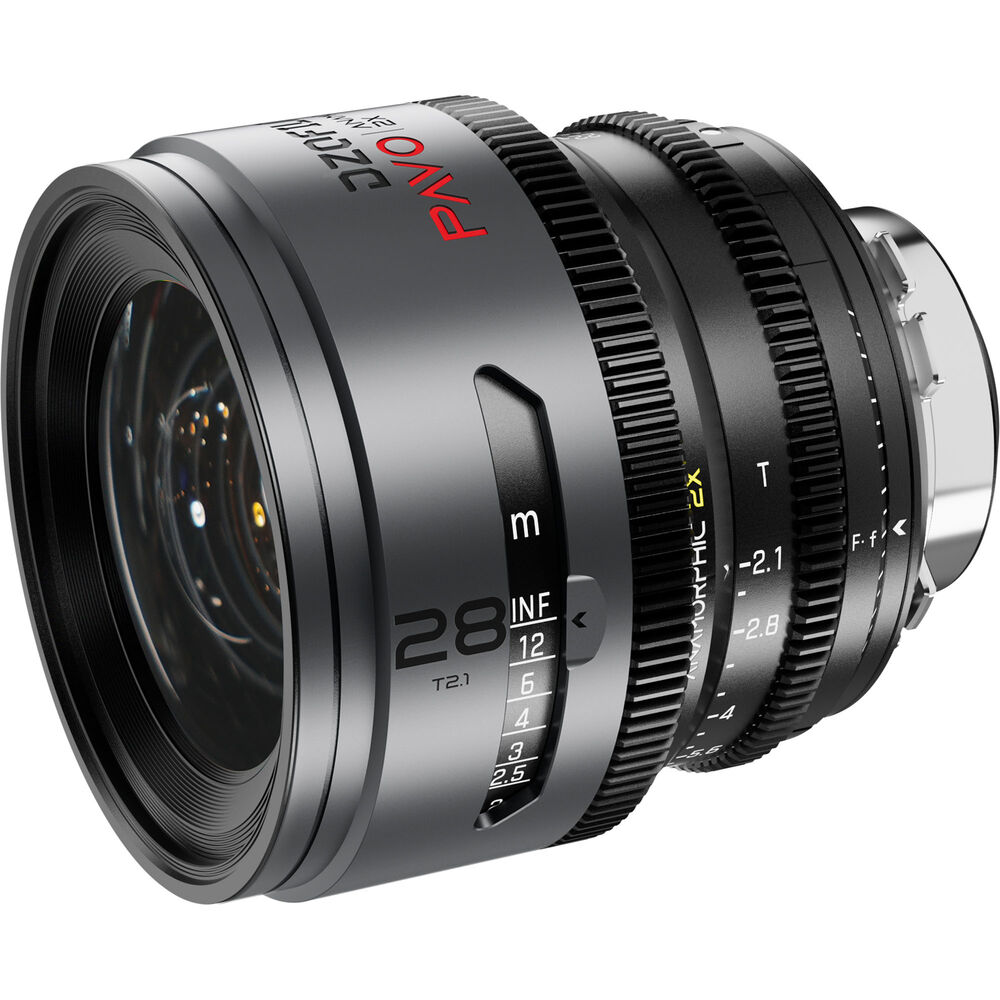

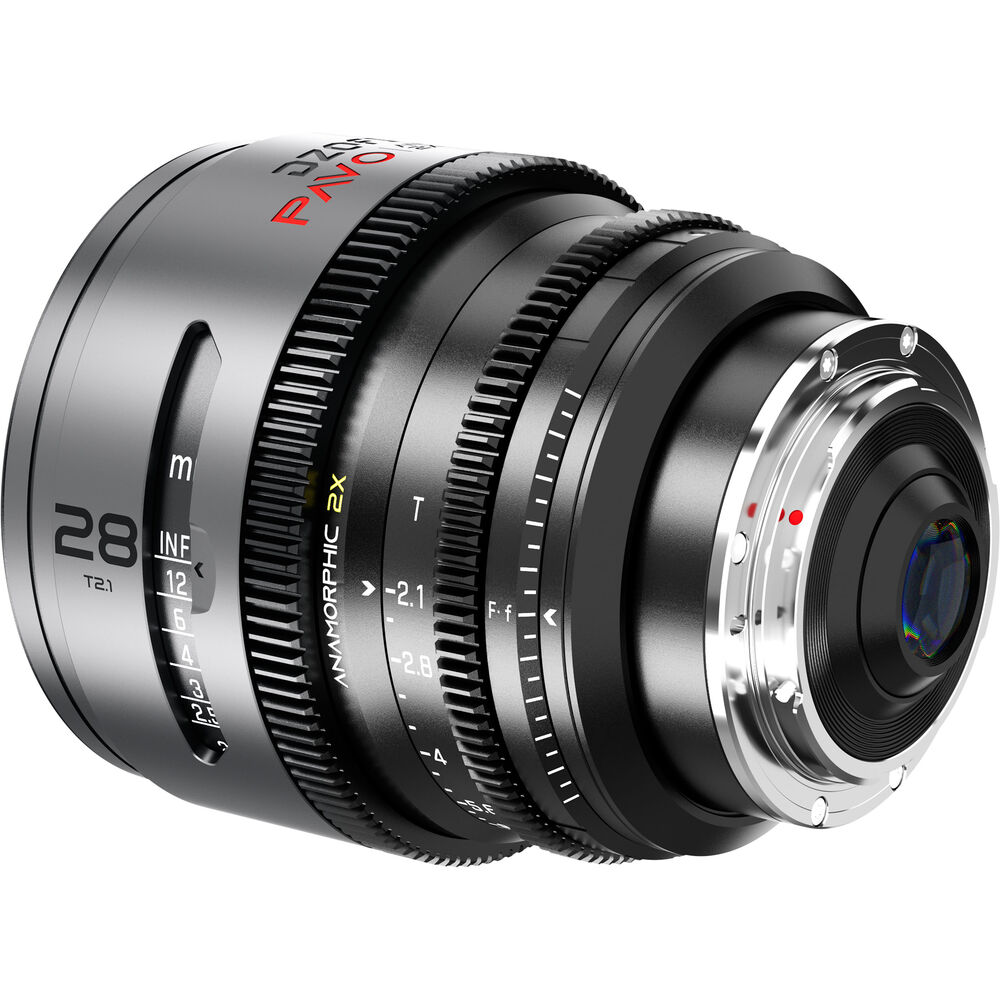

DZOFilm PAVO 28mm T2.1 2x Anamorphic Prime Lens (Neutral Coating, PL/EF Mount, Feet)

Capture stunning cinematic images with a vintage anamorphic look using this PAVO 28mm T2.1 2x Anamorphic Prime Lens from DZOFilm. Designed to cover the Super35 sensor of cine-style cameras, this neutral-coated lens has a maximum aperture of T2.1 and employs 2x magnification, thus achieving what is commonly referred to as “true” anamorphic imaging with a 2.39:1 aspect ratio and boasting exceptional “waterfall” bokeh and elegant neutral horizontal flares.

The lens can focus at a very close range, circumventing limitations often experienced with certain anamorphic lenses, and its low-distortion barrel design retains all the desirable attributes of anamorphic shooting without sacrificing image quality. The PAVO’s PL mount can quickly be switched to an EF mount using the included EF bayonet. Focus marks are defined in feet, and the compact size and lightweight design of the lens make it an ideal option for cameras mounted on drones, mechanical and electronic stabilizers, and in handheld situations where keeping weight to a minimum is critical.

UPC: 842463101500

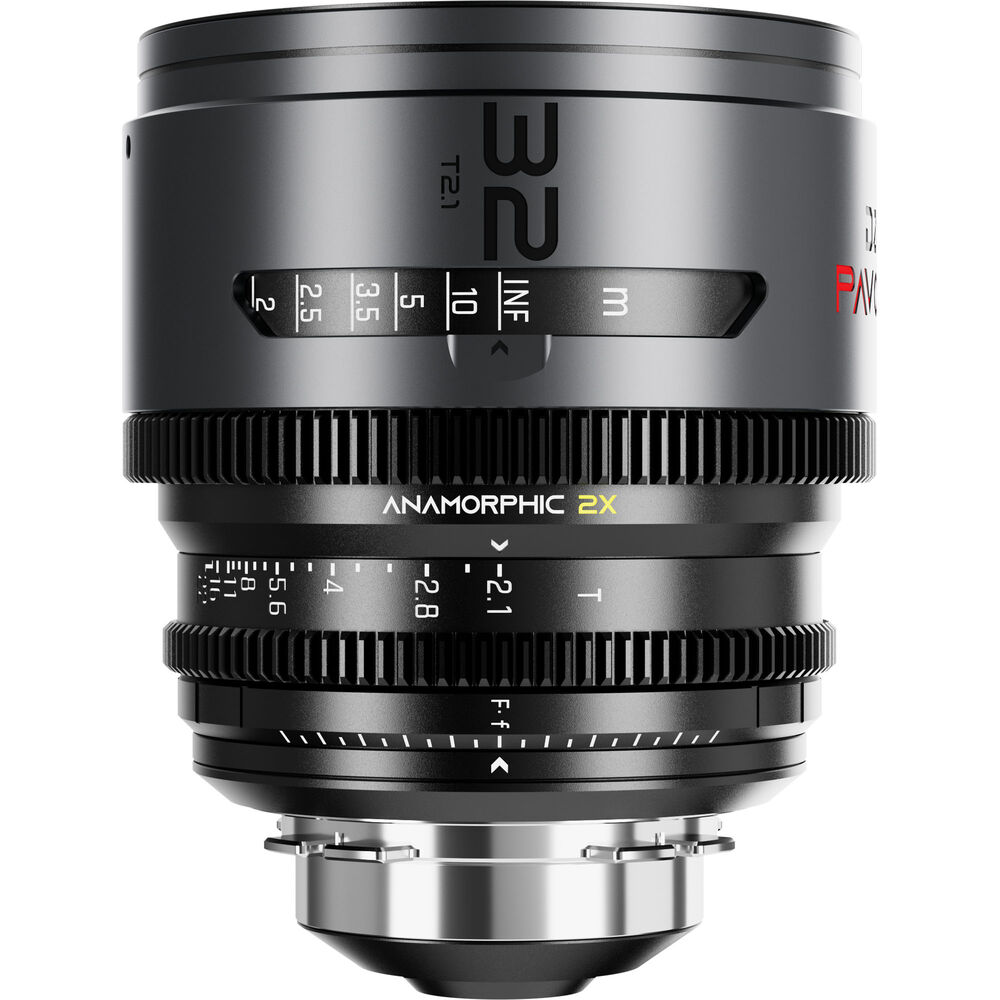

DZOFilm PAVO 32mm T2.1 2x Anamorphic Prime Lens (Neutral Coating, PL/EF Mount, Feet)

Capture stunning cinematic images with a vintage anamorphic look using this PAVO 32mm T2.1 2x Anamorphic Prime Lens from DZOFilm. Designed to cover the Super35 sensor of cine-style cameras, this neutral-coated lens has a maximum aperture of T2.1 and employs 2x magnification, thus achieving what is commonly referred to as “true” anamorphic imaging with a 2.39:1 aspect ratio and boasting exceptional “waterfall” bokeh and elegant neutral horizontal flares.

UPC: 842463101517

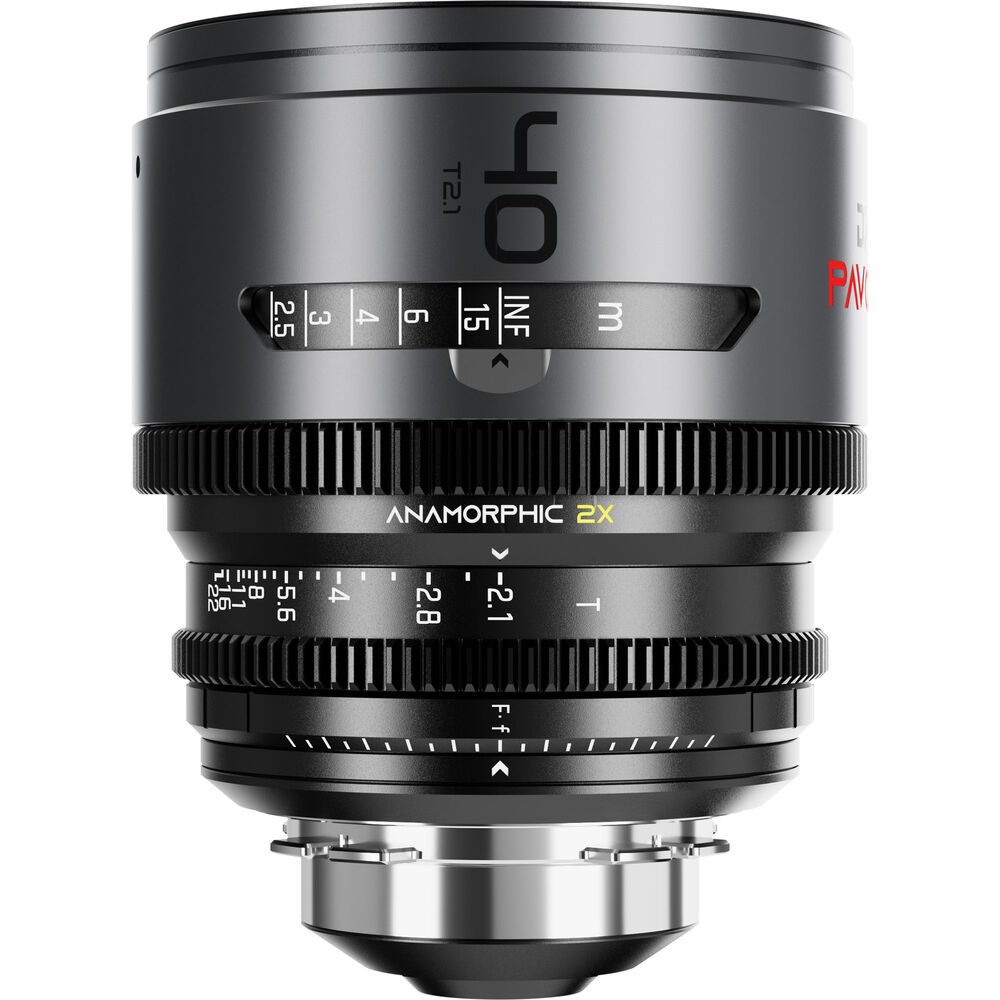

DZOFilm PAVO 40mm T2.1 2x Anamorphic Prime Lens (Neutral Coating, PL/EF Mount, Feet)

Capture stunning cinematic images with a vintage anamorphic look using this PAVO 40mm T2.1 2x Anamorphic Prime Lens from DZOFilm. Designed to cover the Super35 sensor of cine-style cameras, this neutral-coated lens has a maximum aperture of T2.1 and employs 2x magnification, thus achieving what is commonly referred to as “true” anamorphic imaging with a 2.39:1 aspect ratio and boasting exceptional “waterfall” bokeh and elegant neutral horizontal flares.

DZOFilm PAVO 55mm T2.1 2x Anamorphic Prime Lens (Neutral Coating, PL/EF Mount, Feet)

Capture stunning cinematic images with a vintage anamorphic look using this PAVO 55mm T2.1 2x Anamorphic Prime Lens from DZOFilm. Designed to cover the Super35 sensor of cine-style cameras, this neutral-coated lens has a maximum aperture of T2.1 and employs 2x magnification, thus achieving what is commonly referred to as “true” anamorphic imaging with a 2.39:1 aspect ratio and boasting exceptional “waterfall” bokeh and elegant neutral horizontal flares.

UPC: 842463101531

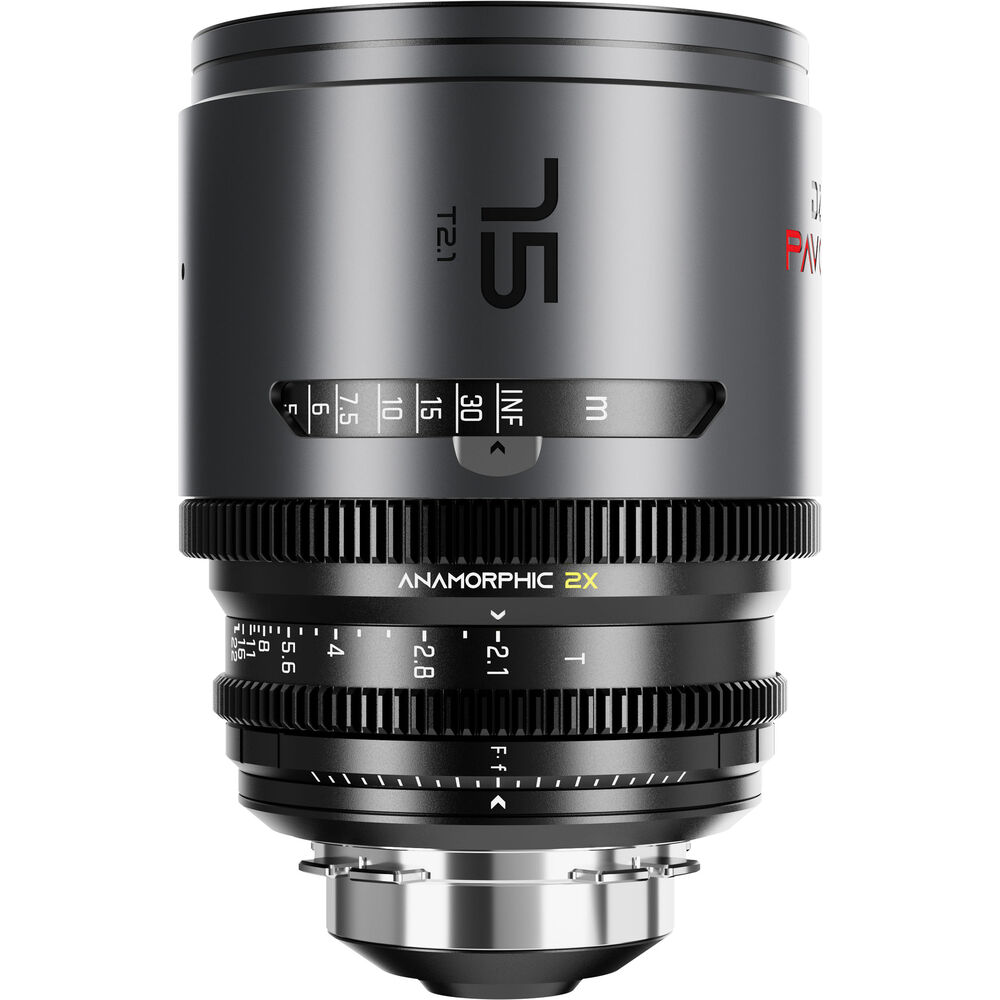

DZOFilm PAVO 75mm T2.1 2x Anamorphic Prime Lens (Neutral Coating, PL/EF Mount, Feet)

Capture stunning cinematic images with a vintage anamorphic look using this PAVO 75mm T2.1 2x Anamorphic Prime Lens from DZOFilm. Designed to cover the Super35 sensor of cine-style cameras, this neutral-coated lens has a maximum aperture of T2.1 and employs 2x magnification, thus achieving what is commonly referred to as “true” anamorphic imaging with a 2.39:1 aspect ratio and boasting exceptional “waterfall” bokeh and elegant neutral horizontal flares.

UPC: 842463101548

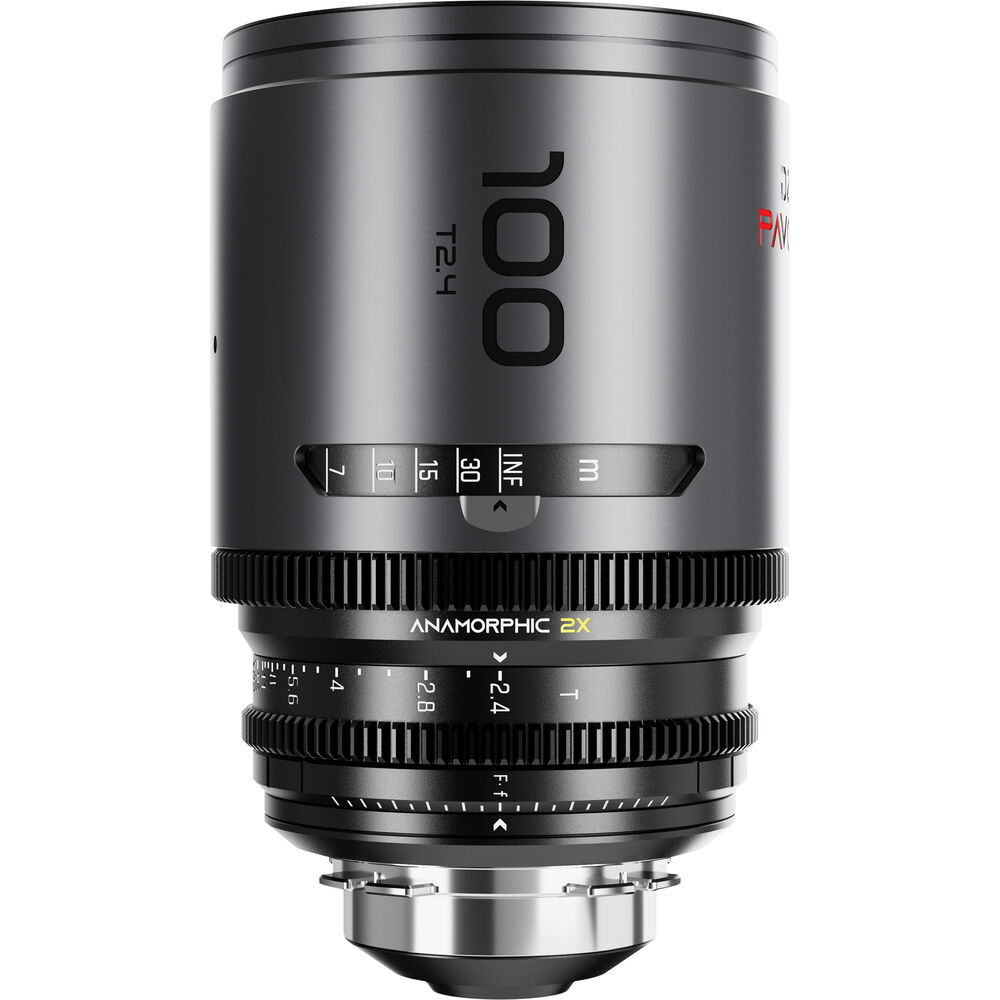

DZOFilm PAVO 100mm T2.4 2x Anamorphic Prime Lens (Neutral Coating, PL/EF Mount, Feet)

Capture stunning cinematic images with a vintage anamorphic look using this PAVO 100mm T2.4 2x Anamorphic Prime Lens from DZOFilm. Designed to cover the Super35 sensor of cine-style cameras, this neutral-coated lens has a maximum aperture of T2.4 and employs 2x magnification, thus achieving what is commonly referred to as “true” anamorphic imaging with a 2.39:1 aspect ratio and boasting exceptional “waterfall” bokeh and elegant neutral horizontal flares.

UPC: 842463101555

Anamorphic Marvels
in Macrovision

The Pavo 65mm macro lens features an impressive close focus distance of only 0.366m and a 1:2 magnification ratio, allowing you to capture the exquisite details of the macro world from a natural viewpoint. The close-up capacity, reminiscent of spherical lenses, combined with the 2X anamorphic effect, produces remarkably dramatic close-up shots, opening up new creative possibilities and artistic expression for filmmakers.

All-inclusive Coverage for Cinematic Depth

The Pavo series now includes two more telephoto lenses at 135mm and 180mm, offering more creative freedom and efficient filming on set.

Longer focal lengths lead to a shallower depth of field, compressing environmental space and isolating characters against a creamy background. This intensifies the tension and emotional effect of the images, creating a more immersive visual experience.

Modern Ergonomics, Cinematic Artistry

The entire Pavo lineup features a 16-blade aperture (28mm with 14 blades), effortlessly delivering the classic oval-shaped bokeh of anamorphic imagery. Advanced optical design ensures precise control over chromatic aberration and distortion, guaranteeing sharp and clear resolution from center to corner with vibrant and natural color rendition. The soft elliptical bokeh, along with smooth background blur, adds an artistic touch to the visuals, enhancing their cinematic appeal

Unparalleled
Compact Anamorphic

While providing comprehensive coverage of practical focal lengths, the Pavo series remains lightweight and compact, with weights ranging from 1.2 to 2 kg.

These lenses are compatible with gimbals, steadicams and drones, allowing for a wide range of shooting settings, from handheld to aerial, catering to both indie filmmakers and large-scale productions.

2X Compression Factor
for Authentic Anamorphic

The PAVO series comprises 28mm to 180mm focal lengths with a 2X compression ratio. This expansion of the cinematic scope allows for the inclusion of additional details, resulting in a more dramatic depth of field.

It achieves a genuine anamorphic look that immerses viewers in a visually spectacular world, while maintaining a harmonious and unified visual style across the entire series, making it the ideal choice for professional film production.

Futuristic Design, Dual Flare

PAVO offers two different horizontal flare colors, Blue and Neutral, to cater to a wide range of movie genres and visual styles. The dark gray exterior design takes inspiration from the futuristic aesthetics of iconic sci-fi spaceships and blends the essence of modern design into its construction.
The Blue version is adorned with cobalt ink, while the Neutral version is elegantly embellished with vermilion ink.

Superb Visuals for
Immersive Brilliance

PAVO provides exceptional resolution with precise control, ensuring negligible breathing effects even at longer focal lengths. The innovative design minimizes chromatic aberration, resulting in sharp, crisp images with accurate color rendering. PAVO provides a smooth transition between in-focus and out-of-focus images with a characteristic anamorphic look.

Versatile Design,
Flex Adaptation

PAVO lenses feature a built-in back-focus adjustment, enabling precise adjustments while the lens is mounted, streamlining operational processes. Additionally, these lenses can adapt to full-frame cinema cameras using the Marlin 1.6X Expander, broadening compatibility across various shooting scenarios and meeting the demands of professional film production.

DZOFilm PAVO 28mm T2.1 2x Anamorphic Prime Lens (Neutral Coating, PL/EF Mount, Feet)

Key Specs

Focal Length	28mm
Maximum Aperture	T2.1
Lens Mount	Interchangeable Mount with Included ARRI PL/Canon EF
Lens Format Coverage	Super35/APS-C
Filter Thread	No
Image Stabilization	No
Electronic Communication	No

Focal Length	28mm
Maximum Aperture	T2.1
Minimum Aperture	T22
Lens Mount	Interchangeable Mount with Included ARRI PL/Canon EF
Horizontal Squeeze (Anamorphic)	2x
Flare Color	Neutral
Lens Format Coverage	Super35/APS-C
Angle of View	Super 35 Horizontal: 103° Vertical: 36°
Focus Scales	Imperial
Optical Design	15 Elements in 13 Groups
Filter Thread	No
Minimum Focus Distance	1.3' / 0.4 m
Aperture/Iris Blades	14
Image Stabilization	No
Gear Standard	0.8 MOD
Electronic Communication	No
Diameter	Front: 3.74" / 95 mm
Length	4.19" / 106.43 mm
Weight	2.6 lb / 1.2 kg
