Kinefinity EAGLE SDI e-Viewfinder Pro KIT (Cyber) for Cinema Camera ARRI RED SONY CANON kinefinity K911-004-02

Brand: kinefinity
Product Code: K911-004-02
Availability: In Stock

$2,450.00

Description
Reviews (0)

Description

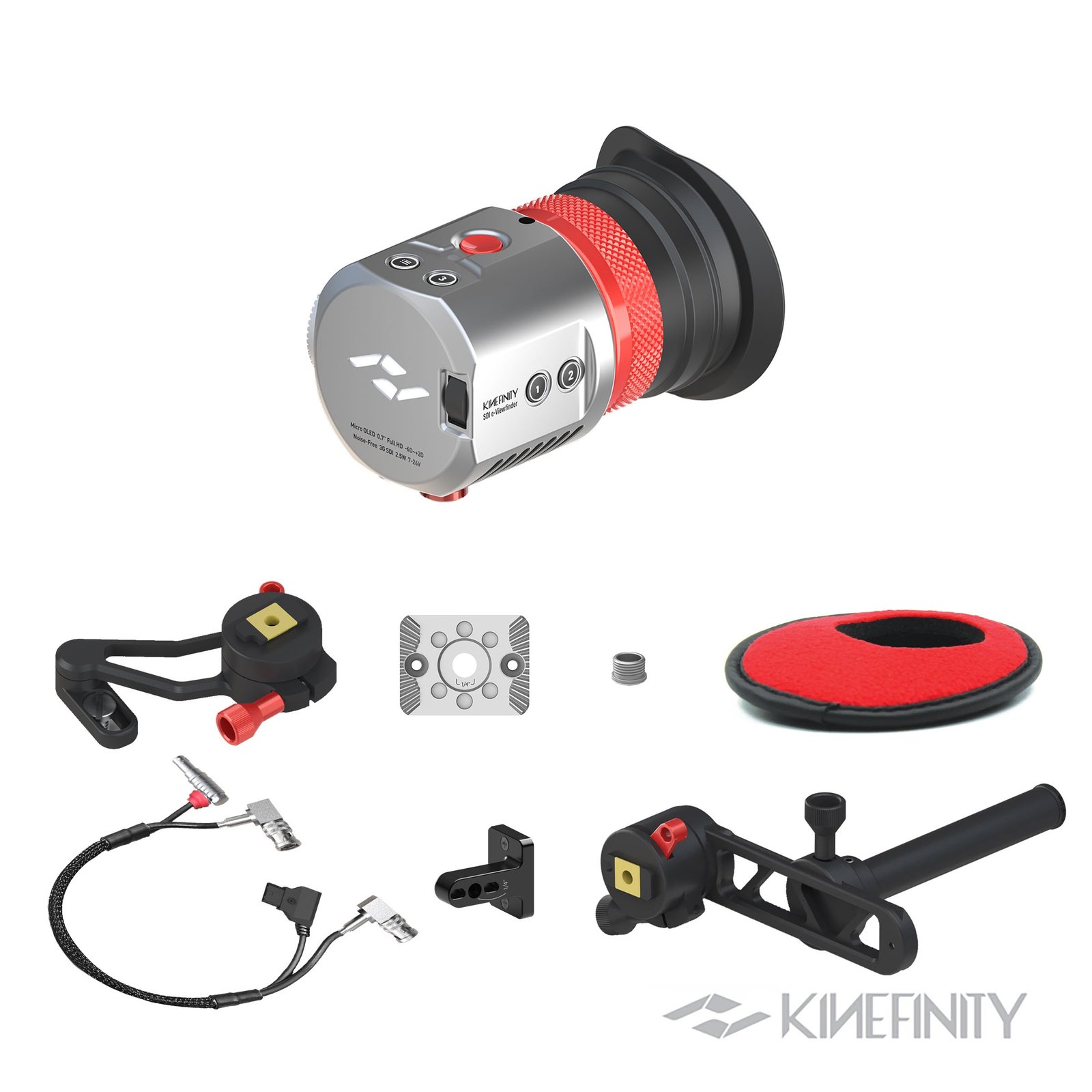

The EAGLE SDI e-Viewfinder Pro KIT builds upon the Core KIT by including an additional E-Viewfinder Rod Mount and an E-Viewfinder Extension Adapter. These added components enable mounting through 15mm rod systems as well as cold-shoe with third-party mounts, offering greater flexibility and more versatile rigging options. Suitable for all cine cameras, the Pro KIT provides a complete and adaptable solution to expand your camera’s viewing setup.

This advanced EAGLE SDI e-Viewfinder features SDI functionality, a Micro-OLED 1080P display, premium optics, noise-free and zero-delay performance, all within an ultra-lightweight and user-friendly design, empowering filmmakers with professional precision and creative freedom.

Experience the future of visual storytelling with the Kinefinity SDI EAGLE e-Viewfinder – a tool designed to meet the demands of the most discerning filmmakers, ensuring unparalleled performance and ease of use.

Key Features

EXTENSIVE COMPATIBILITY

Whether the camera outputs video signals in 3G or 1.5G SDI formats, such as 1080p, 1080i, or 1080psf, the EAGLE SDI e-Viewfinder can work instantly and smoothly with the e-viewfinder, which has extensive compatibility.

PREMIUM OPTICS & MICRO-OLED

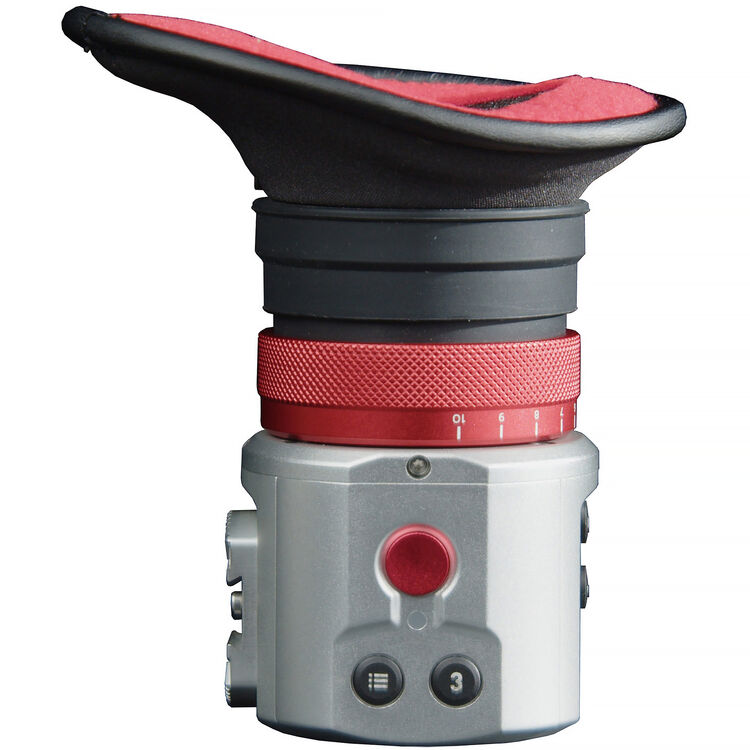

The EAGLE features a Full-HD 0.7” Micro-OLED display with premium optical eyepiece. It notably includes a built-in diopter that can be adjusted from -6D to +2D, tailored to meet stringent specifications.

NOISE-FREE & ZERO DELAY

With ultra-low power consumptions and no fan inside, the EAGLE operates silently. It utilizes an innovative FPGA-based hybrid processing architecture, achieving rapid boot-up, quick responsiveness, and virtually no monitoring delay.

SUPER SMALL & EASY TO USE

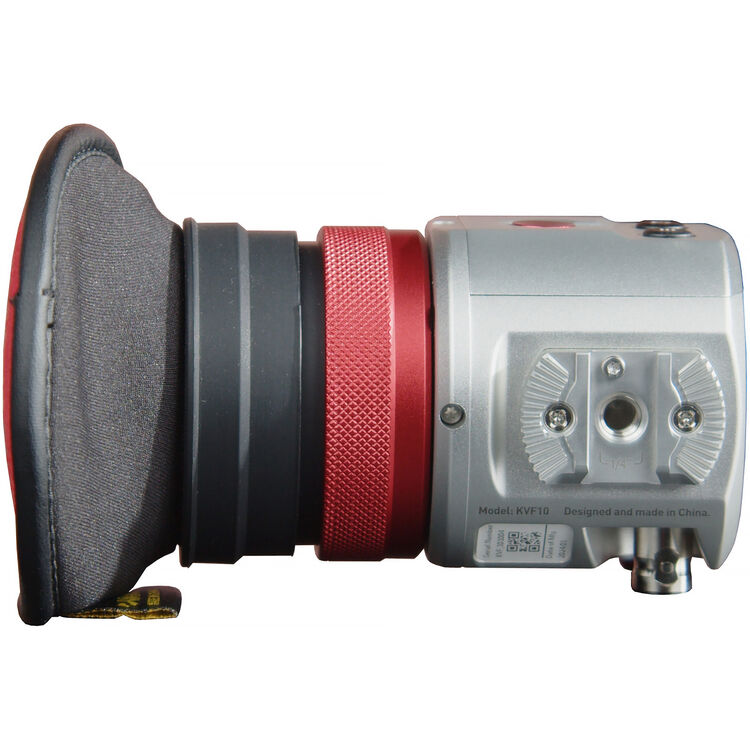

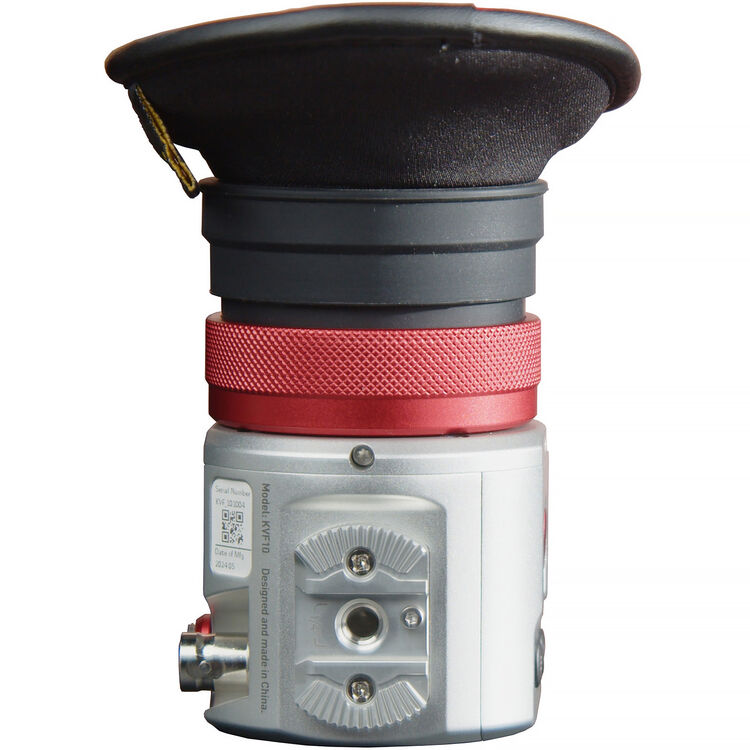

The EAGLE stands out as the most compact and light-weight, 40% less than its counterparts on the market. It features a new mounting design, offering two ways to mount it on cameras, enabling convenient, flexible, and reliable operation with cameras.

Compatible with All Cine Cameras

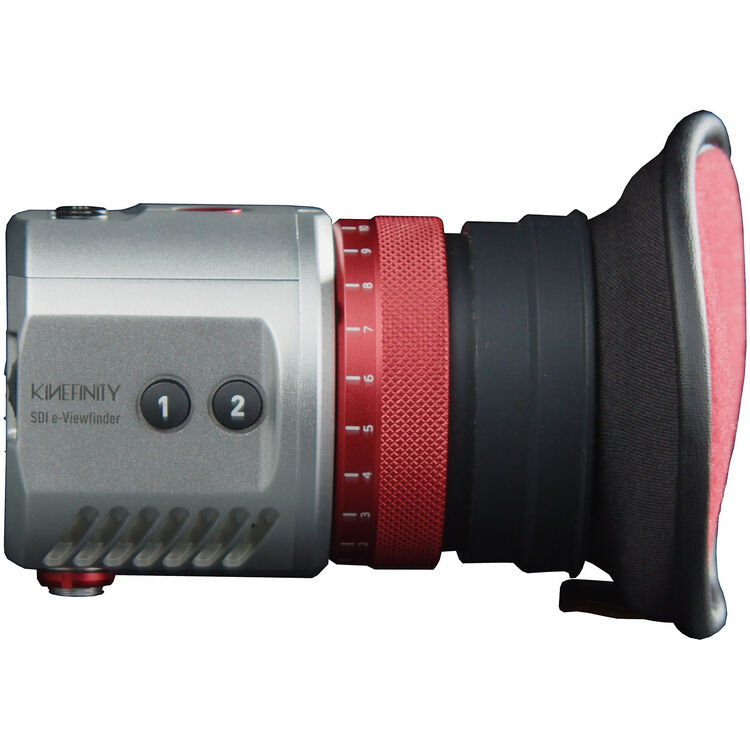

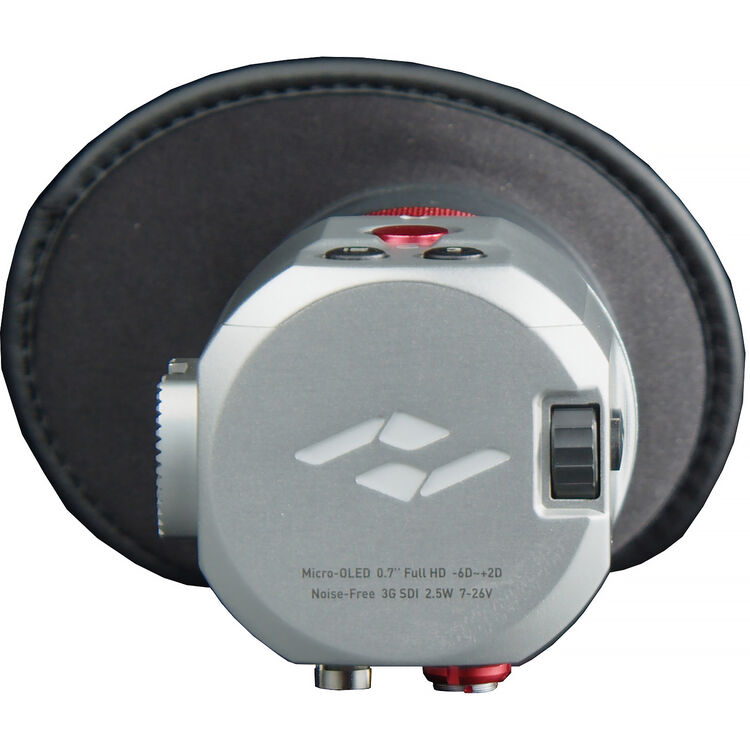

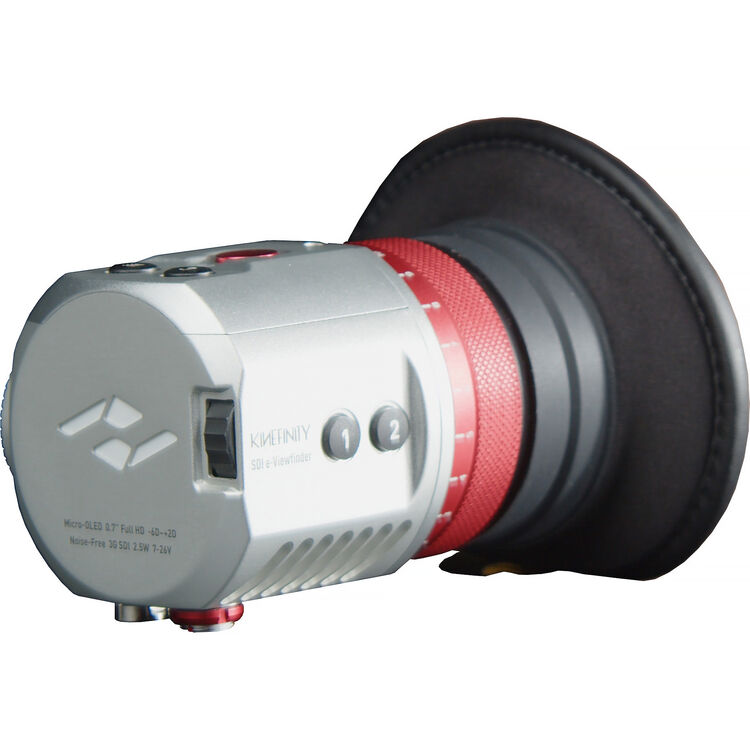

Ultralight and streamlined, the cyber (silver) EAGLE SDI e-Viewfinder from Kinefinity features an SDI video input compatible with cine-style cameras. It features a 0.7" 1080p Micro-OLED screen, zero-delay viewing, multiple imaging tools, and 10-bit processing for optimal image output.

3G/HD-SDI Support

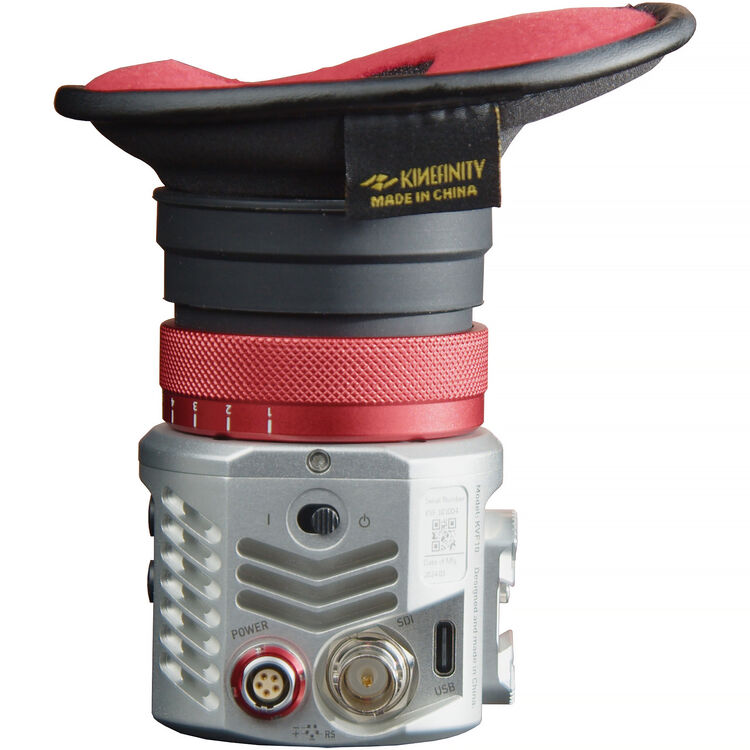

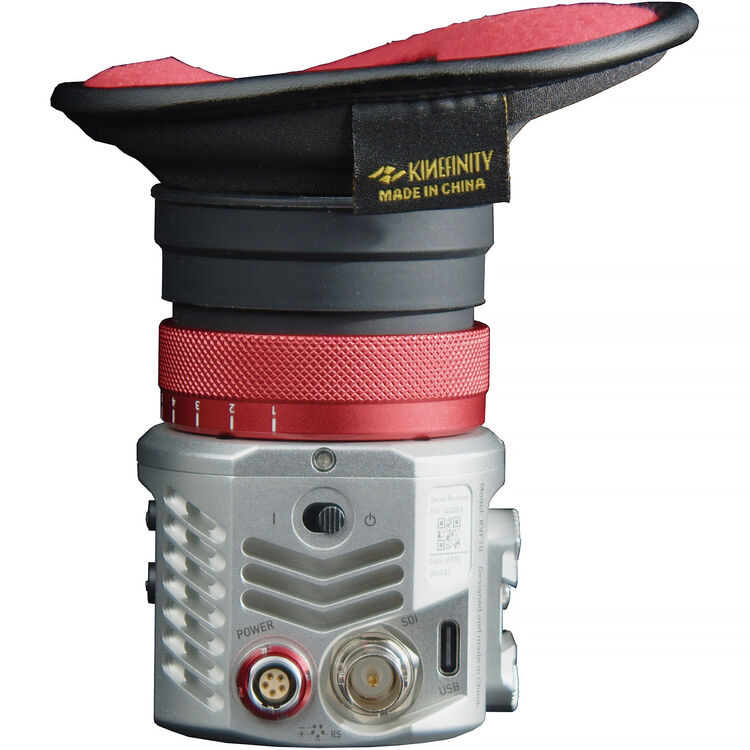

The EAGLE SDI e-Viewfinder's BNC input supports 3G- and HD-SDI video signals, offering compatibility with cine-style cameras in 1080p and 1080i at frame rates ranging from 23.97 to 60 fps.

Micro-OLED Screen

The 1080p resolution micro-OLED screen produces exceptional imagery using 10-bit color and 10,000:1 contrast in a 16:9 aspect ratio.

Imaging Tools

Multiple imaging tools include focus peaking, magnification, waveform, histogram, false color, anamorphic de-squeeze, frame markers, overlay clear, and image flip and rotation.

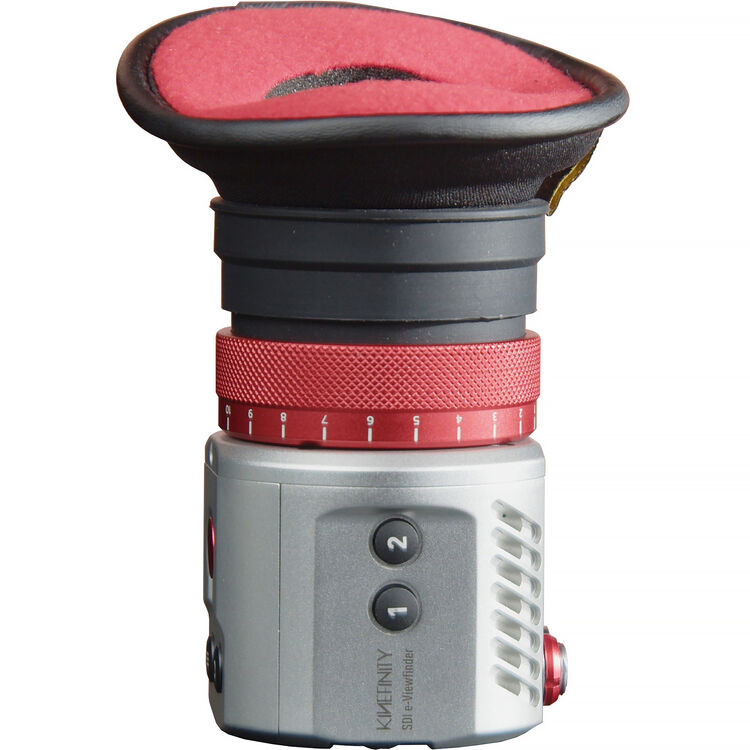

Adjustable Diopter

The adjustable diopter has a range of -6 to +2, providing eyeglass users with correct eyesight correction.

Kinefinity Mini Mount for EAGLE SDI e-Viewfinder

The Mini Mount for EAGLE SDI e-Viewfinder from Kinefinity mounts easily on your camera using a standard 1/4"-20 screw. This aluminum alloy support attaches to the EAGLE EVF via its quick-lock system. It features 360° rotation for optimal viewing and a red, knurled thumbscrew.

Compatibility

Kinefinity EAGLE SDI e-Viewfinder

Kinefinity D-Tap Cable for EAGLE SDI e-Viewfinder (15.7")

The 15.7" D-Tap Cable for EAGLE SDI e-Viewfinder from Kinefinity combines two cables in one with a sheath that binds them neatly together. Designed to provide both power and video signals to the EAGLE SDI EVF, this cable has BNC and 5-pin LEMO-type connectors on one end and BNC and D-Tap connectors on the other, with all connectors having right angles.
