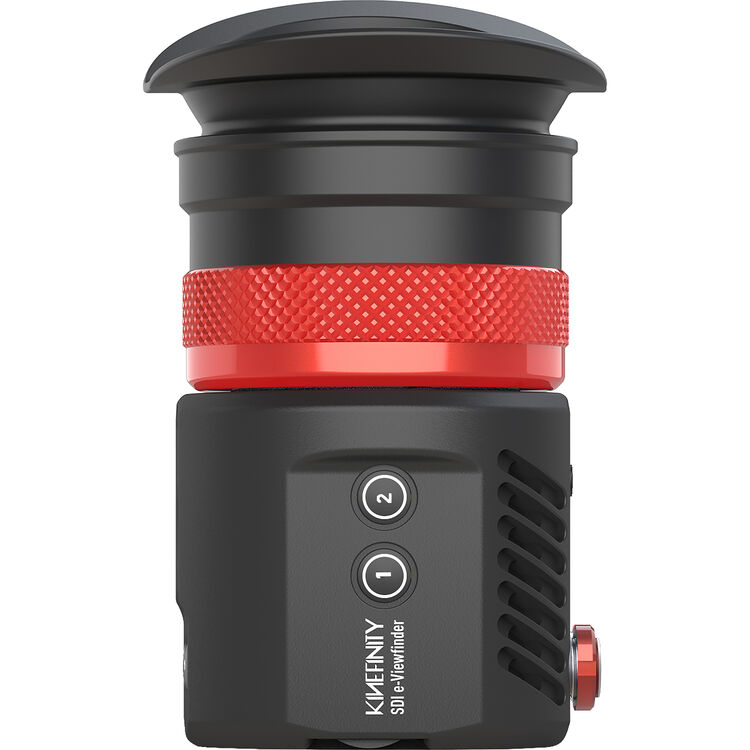

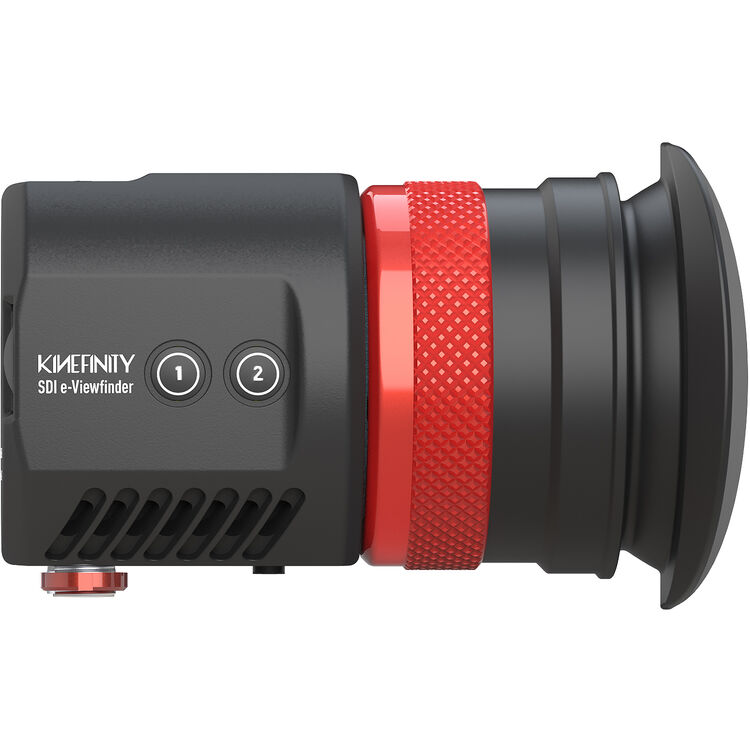

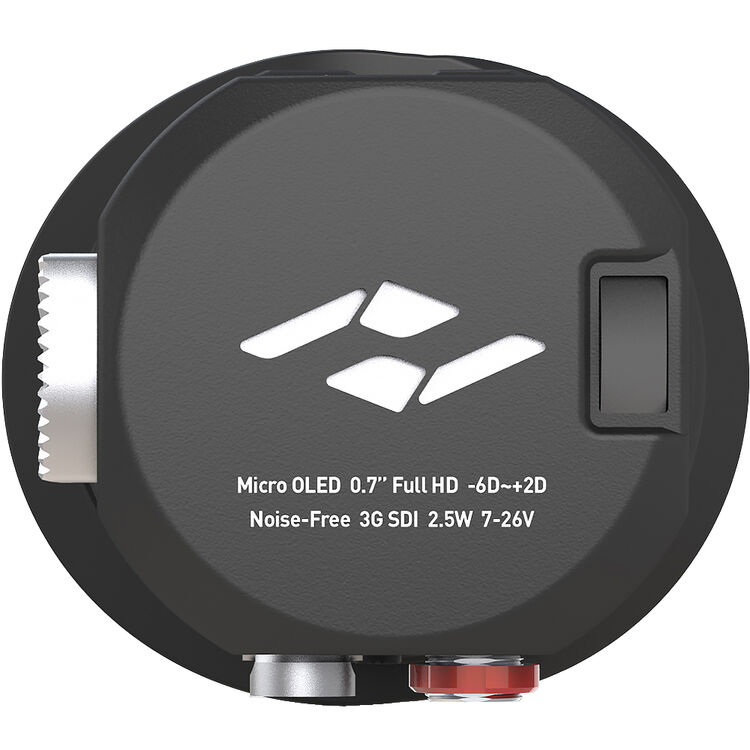

Kinefinity EAGLE SDI e-Viewfinder (Black) for Cinema Camera ARRI RED SONY CANON
Key Features
0.7" Micro-OLED EVF with 3G-SDI Input
Up to 1080p60 SDI Input, Zero Delay
1920 x 1080 Resolution Screen
Run/Stop Trigger, D-Tap Power Cable
10,000:1 Contrast, 5 x Function Buttons
-2 to +6 Diopter, 15.7" D-Tap Cable
Waveform, Vectorscope, and Histogram
Focus Peaking, False Color, Zebra
Firmware Update via USB-C Port

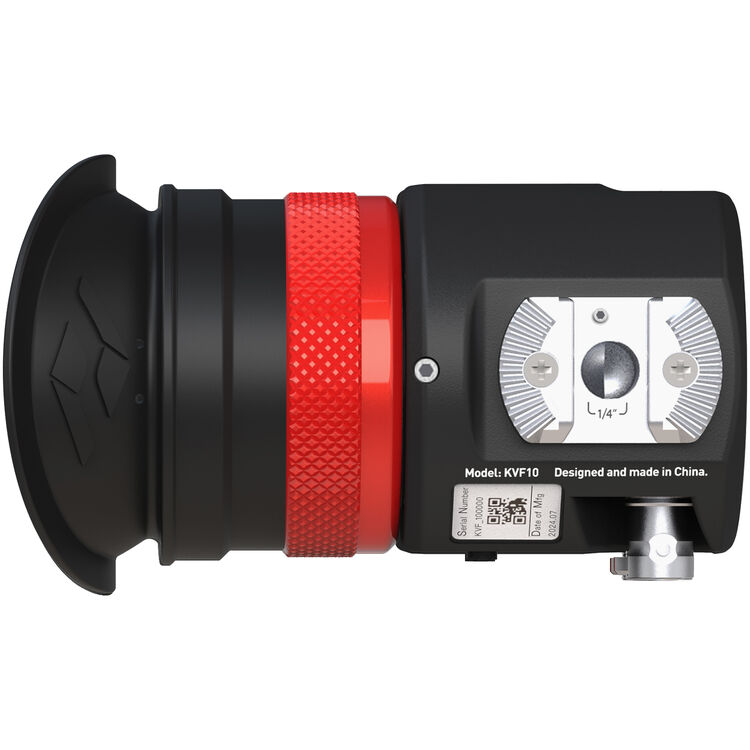

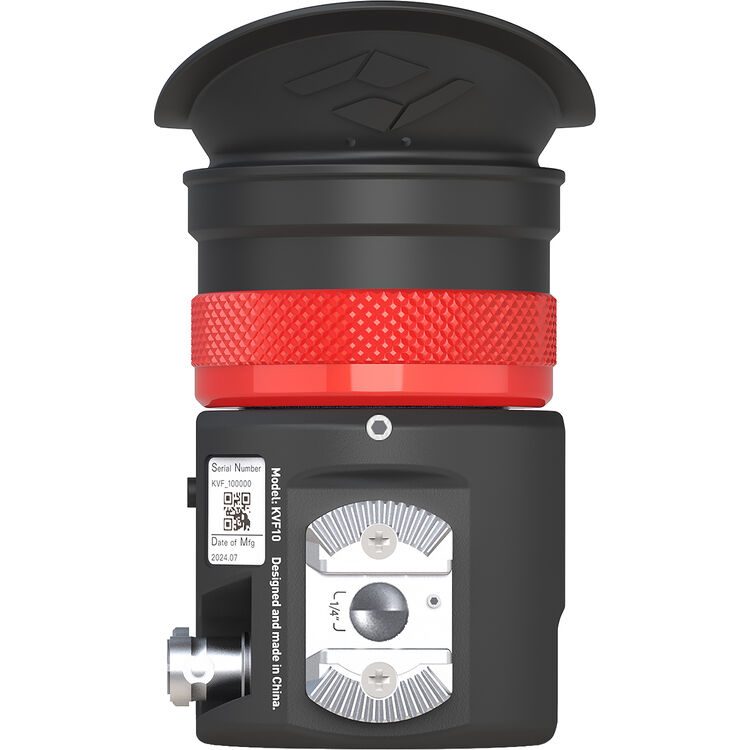

Rosette Mount with 1/4"-20 Thread
Kinefinity EAGLE SDI Overview
Compatible with All Cine Cameras
Ultralight and streamlined, the black EAGLE SDI e-Viewfinder from Kinefinity features an SDI video input compatible with cine-style cameras. It features a 0.7" 1080p Micro-OLED screen, zero-delay viewing, multiple imaging tools, and 10-bit processing for optimal image output.
3G/HD-SDI Support
The EAGLE SDI e-Viewfinder's BNC input supports 3G- and HD-SDI video signals, offering compatibility with cine-style cameras in 1080p and 1080i at frame rates ranging from 23.97 to 60 fps.
Micro-OLED Screen
The 1080p resolution micro-OLED screen produces exceptional imagery using 10-bit color and 10,000:1 contrast in a 16:9 aspect ratio.
Imaging Tools
Multiple imaging tools include focus peaking, magnification, waveform, histogram, false color, anamorphic de-squeeze, frame markers, overlay clear, and image flip and rotation.
Adjustable Diopter
The adjustable diopter has a range of -6 to +2, providing eyeglass users with correct eyesight correction.
Kinefinity EAGLE SDI Specs
Key Specs
Panel Type
Micro-OLED
Screen Resolution
1920 x 1080
Diopter Correction
-6.0 to +2.0
Inputs/Outputs
1x BNC (3G-SDI) Video Input 1x LEMO 5-Pin Power Input
