Key Features

6K 3:2 Full-Frame CMOS Sensor
FF Open Gate 6016 x 3984 up to 48 fps
Record In-Camera up to 6K ProRes 4444 XQ
Dual Native 800/5120 ISO
High-Speed S35 4K150/S16 2K290/MFT 3K195
14+ Stops Dynamic Range
e-ND Darkens by 2 to 8 Stops
2 x BNC & 2 x Kinefinity Video Outputs
Native KineMOUNT Lens Mount
Adapts to PL, LPL, Active EF & Passive E

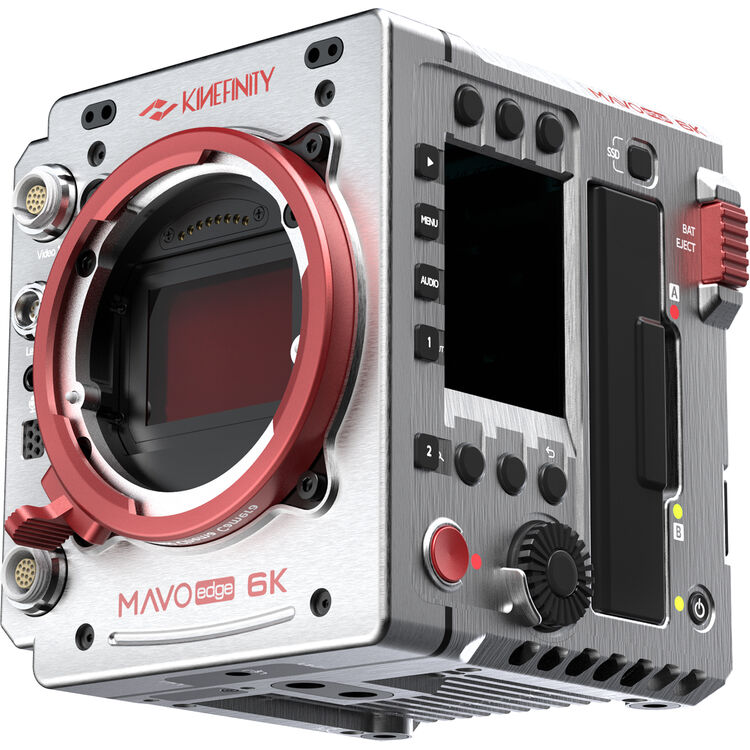

Kinefinity MAVO Edge 6K KineMount Overview

Capture amazing detail in a variety of resolutions and frame rates to suit all your project needs with the full-frame Deep Gray MAVO Edge 6K Cinema Camera from Kinefinity. This kin to the MAVO Edge 8K camera offers multiple resolutions, formats, and frame rates ranging from S16 2K up to cinematic full-frame 6K, 3:2 open gate. Widely used codec options for internal recording range from ProRes Proxy up to ProRes 4444 XQ for 6K workflows. Dual native ISO of 800 and 5120 enable you to shape its 14 stops of dynamic range around either the highlights or lowlights, and its proprietary color science supports KineLOG3, Rec 709, and custom 3D LUTs.

Oversampled 3K or 4K

Choose oversampled 3K or 4K settings to preserve the framing and depth of field of a given lens, or digitally crop to boost its magnification.

Sharp, Multiformat 6K Sensor

Use the full 6016 x 3984, 23.97MP sensor for outstanding detail in full-frame 6K 3:2 open gate at rates up to 48 fps, crop to 6K 17:9 to overcrank up to 60 fps, or choose between multiple S16, S35, and full-frame aspect ratios and frame rates. For breathtaking slow motion, S16 2K up to 290 fps offers mesmerizing action, sport, or wildlife imaging.

Impressive Image Quality

The MAVO 6K Edge's in-camera recording of ProRes 4444 XQ enables maximum flexibility in color grading. KineLOG3, its proprietary color science, is primed for applying a custom 3D LUT for attaining a specific aesthetic.

Universal KineMOUNT

The proprietary KineMOUNT is designed to be used with separately available PL, LPL, active EF, and passive E-mount adapters. This versatility enables you to take advantage of a wide selection of both cine-style and still photo lenses in PL, LPL, active EF, and passive E-mounts.

Dual Native ISO

Dual Native ISOs of 800 and 5120 span the range of daylight exteriors to night exteriors, enabling you to shape your exposure to match an ambient light source using a smaller number of lighting fixtures or none at all.

Electronic ND Filter

The motorized e-ND enables precise control over the exposure without affecting the depth of field or motion smoothness in your footage. Continuous tuning of the density from 0.6 to 2.4 translates to the ability to make detailed reductions in exposure between 2 and 8 stops.

Dual Media Slots

Dual SSD slots for recording to fast NVMe M.2-based KineMAG Nano SSD cards.

Power Options

This aluminum-body camera is compatible with numerous power options, including KineBAT, V-mount, and Sony L-Series batteries.

XLR Audio Inputs

Capture professional sound using the MAVO Edge 6K's dual XLR audio inputs.

Monitoring

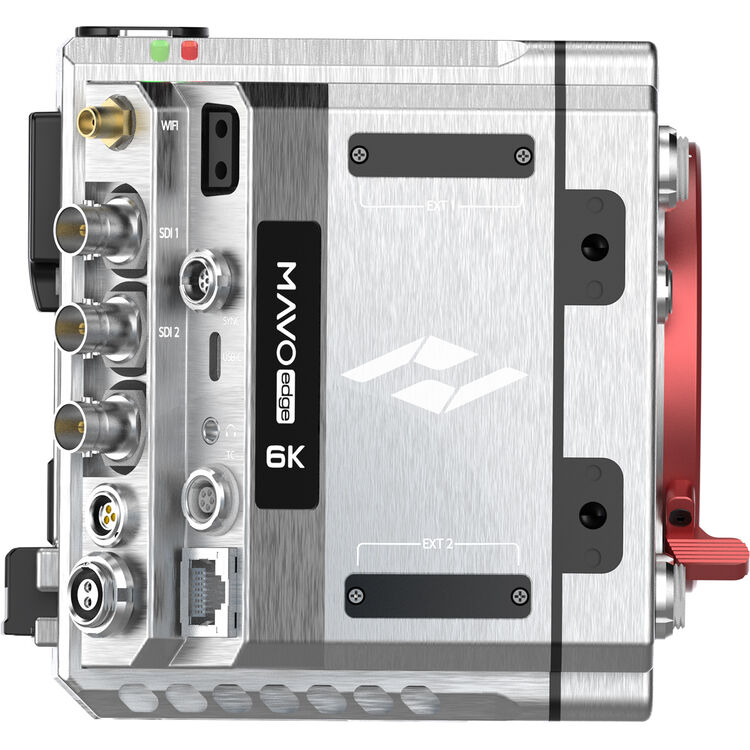

Dual 1.5G-/3G-SDI outputs for monitoring with embedded metadata and audio plus dual proprietary Kinefinity Video ports for KineMon and OLED EVF use.

Connectivity

Connectivity features include timecode input and output, RS-232 and Kinefinity syncing, and a 3-pin Fischer run/stop port. Touchscreen control is available using the Kinefinity app or the separately available Kinefinity app.

Description

MAVO Edge 6K, a powerful new full-frame cinema camera, is equipped with a 6K full-frame 3:2 CMOS imaging sensor and is based on the high-performance computing platform of the MAVO Edge.The new camera features dual native ISO (800/5120) and excellent highlights under various sensitivity settings.

MAVO Edge 6K has an internal motorized full-spectrum e-ND filter(0.6-2.4), and integrates industry-standard ports and dual SSD media slots, capable of recording Apple ProRes4444/XQ and uncompressed RAW onto recording media based on NVMe M.2 2280 SSD. Weighing at only 3.6lbs, this compact and lightweight camera boasts powerful performance and versatility as it adapts to various demanding shooting scenarios.

Outstanding Highlight Performance with Stunning Image Quality MAVO Edge 6K employs a full-frame 3:2 CMOS imaging sensor which not only shows cleaner images but provides wider viewing angles, shallower depth of field, and more immersive presence. And MAVO Edge 6K is equipped with dual native ISO, rated at 800 and 5120, as the second native ISO up to 5120 is perfect for low light scenes to obtain a clean image with high latitude and low noise, ideal for documentary filmmakers or those who favor available light during night shoots.

MAVO Edge 6K outperforms its predecessor of MAVO LF a lot when it comes to highlight performance. At the industry standard ISO 800, the default highlight of the Edge 6K is 6.0 stops, capturing more highlight details to get a more cinematic look. Switch to Cine EI mode for more of a traditional cinema camera experience and highlight stops will adjust automatically as the EI changes. While using Cine EI mode, the second base native ISO 5120 is still activated when you go past 1600 EI.

Apple ProRes Recording Codec and Uncompressed RAW From Apple ProRes422 LT to ProRes4444 XQ and uncompressed RAW codec, the MAVO Edge 6K is capable of recording high-resolution images with high dynamic range and with low to zero compression artifacts.

Compact Camera Body with Internal e-ND filter MAVO Edge 6K inherits the integrated body design of Kinefinity’s flagship product, MAVO Edge 8K which won the prestigious iF DESIGN AWARD 2021. The compact camera body of the MAVO Edge 6K only weighs 1.6kg(3.6lbs), and it is equipped with a full-spectrum e-ND filter, dual SDI ports, multiple control ports, and multi-channel audio tracks, as well as powerful wired and wireless functions.

Big leap on recording media MAVO Edge 6K is equipped with a dual SSD slot based on PCIe-3.0 and its recording media, blazing-fast KineMAG Nano 1TB, is based on NVMe M.2 2280 SSD with writing speed up to 10Gbps. Recording 6K ProRes4444XQ, even 6K uncompressed RAW is stable with KineMAG Nano 1TB.

Kinefinity also provides a KineMAG Nano Body allowing users to install third-party NVMe M.2 2280 SSDs, which provides more storage possibilities. The body of the KineMAG Nano is equipped with a robust camera port as well as a universal USB-C port, so it allows users to offload data to the workstation at a speed of up to 10Gbps by connecting a USB-C cable to the SSD, without a specific SSD reader.

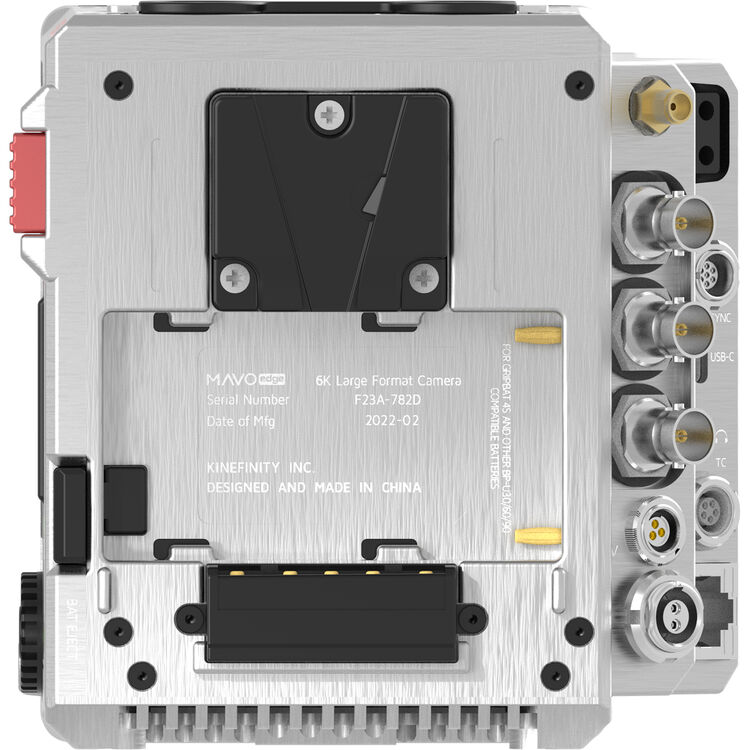

Comprehensive Power Solution

An innovative hybrid battery plate: The hybrid battery plate supports standard 14.8V V-mount batteries such as KineBAT PD 99/200.
A standard D-Tap port, 12V RS port, and Lens port (12V) to power the third-party accessories such as wireless video transmitters and wireless follow focus systems.
Specialized UPS power contacts at the bottom of MAVO Edge 6K: Movcam brings dedicated KineKIT for MAVO Edge, especially the innovative 15mm baseplate with UPS function powered by two NP-F550 type batteries. The contacts can also work as UPS power source to supply uninterrupted power to the camera when replacing V-mount batteries or BP-U30 type batteries.

MAVO Edge 6K is the latest full-frame 6K cinema camera in the MAVO Edge lineup from Kinefinity. It captures stunning images in extremely high resolution and dynamic range, no matter 6K Wide at 75fps or 4K Wide at 160fps. The new camera is equipped with an internal motorized full-spectrum e-ND filter (0.6-2.4), integrated with wireless and industry-standard ports and dual SSD media slots, capable of recording Apple ProRes4444/XQ and uncompressed RAW onto recording media based on NVMe M.2 2280 SSD. MAVO Edge 6K with the latest firmware KineOS 7.0 not only helps video-content creators to capture incredibly pleasing images but also frees filmmakers from the burden of the traditional cine camera equipment to keep creating, keep moving forward.

Kinefinity MAVO Edge 6K KineMount Specs

Key Specs

Lens Mount	KineMOUNT
Image Sensor	Full-Frame CMOS
Sensor Resolution	Effective: 24 Megapixel (6016 x 3984)
Image Stabilization	No
ISO/Gain Sensitivity	Native: 800 to 5120
Internal Recording	ProRes 4444/MOV/ProRes 422LT/ProRes 422 Proxy/ProRes 422 HQ/ProRes 4444XQ 6016 x 3984 from 0.2 to 48.00 fps 5760 x 3700 from 0.2 to 50 fps 5120 x 3700 from 0.2 to 50 fps 4608 x 3700 from 0.2 to 50 fps 5760 x 3240 from 0.2 to 58 fps 6016 x 3172 from 0.2 to 60.00 fps 5120 x 2700 from 0.2 to 70 fps 4096 x 2700 from 0.2 to 70 fps 3712 x 2700 from 0.2 to 70 fps 3328 x 2700 from 0.2 to 70 fps 2688 x 2688 from 0.2 to 70 fps 6016 x 2520 from 0.2 to 75 fps 3840 x 2460 from 0.2 to 50 fps 3456 x 2460 from 0.2 to 50 fps 3072 x 2460 from 0.2 to 50 fps 5760 x 2400 from 0.2 to 75 fps 5120 x 2160 from 0.2 to 86 fps 4096 x 2160 from 0.2 to 112 fps 3840 x 2160 from 0.2 to 112 fps 4096 x 1720 from 0.2 to 140 fps 3072 x 1620 from 0.2 to 144 fps 2944 x 1620 from 0.2 to 145 fps 3840 x 1600 from 0.2 to 150 fps 3072 x 1200 from 0.2 to 195 fps 2944 x 1200 from 0.2 to 195 fps 2048 x 1080 from 0.2 to 200 fps 1920 x 1080 from 0.2 to 220 fps 2048 x 860 from 0.2 to 270 fps 1920 x 800 from 0.2 to 290 fps *Sensor Crops Video
Video Output	SDI/BNC / Proprietary Module 1920 x 720
Media/Memory Card Slot	Dual Slot: KineMAG Nano SSD
Video I/O	2x Proprietary Output 2x BNC (3G-SDI) Output
Mobile App Compatible	Yes: Android & iOS
Battery	V-Mount

Imaging

Lens Mount	KineMOUNT
Lens Communication	Yes
Image Sensor	Full-Frame CMOS
Sensor Resolution	Effective: 24 Megapixel (6016 x 3984)
Image Stabilization	No
Built-In ND Filter	0.6 to 2.4 Stop Electronic ND Filter
Internal Filter Holder	Yes
Capture Type	Video Only

Exposure Control

Shutter Type	Electronic Rolling Shutter
Shutter Speed	.7 to 358 Second
Shutter Angle	0.7 to 358°
ISO/Gain Sensitivity	Native: 800 to 5120
Advertised Dynamic Range	14 Stops

Focus

Focus Mode

Manual Focus Only

Video Capture

Internal Recording	ProRes 4444/MOV/ProRes 422LT/ProRes 422 Proxy/ProRes 422 HQ/ProRes 4444XQ 6016 x 3984 from 0.2 to 48.00 fps 5760 x 3700 from 0.2 to 50 fps 5120 x 3700 from 0.2 to 50 fps 4608 x 3700 from 0.2 to 50 fps 5760 x 3240 from 0.2 to 58 fps 6016 x 3172 from 0.2 to 60.00 fps 5120 x 2700 from 0.2 to 70 fps 4096 x 2700 from 0.2 to 70 fps 3712 x 2700 from 0.2 to 70 fps 3328 x 2700 from 0.2 to 70 fps 2688 x 2688 from 0.2 to 70 fps 6016 x 2520 from 0.2 to 75 fps 3840 x 2460 from 0.2 to 50 fps 3456 x 2460 from 0.2 to 50 fps 3072 x 2460 from 0.2 to 50 fps 5760 x 2400 from 0.2 to 75 fps 5120 x 2160 from 0.2 to 86 fps 4096 x 2160 from 0.2 to 112 fps 3840 x 2160 from 0.2 to 112 fps 4096 x 1720 from 0.2 to 140 fps 3072 x 1620 from 0.2 to 144 fps 2944 x 1620 from 0.2 to 145 fps 3840 x 1600 from 0.2 to 150 fps 3072 x 1200 from 0.2 to 195 fps 2944 x 1200 from 0.2 to 195 fps 2048 x 1080 from 0.2 to 200 fps 1920 x 1080 from 0.2 to 220 fps 2048 x 860 from 0.2 to 270 fps 1920 x 800 from 0.2 to 290 fps *Sensor Crops Video
Video Output	SDI/BNC / Proprietary Module 1920 x 720
Fast-/Slow-Motion Support	Yes
Gamma Curve	KineLOG3, Rec709
Built-In Microphone	Stereo
Audio Recording	4-Channel

Interface

Media/Memory Card Slot	Dual Slot: KineMAG Nano SSD
Internal Storage	No
Video I/O	2x Proprietary Output 2x BNC (3G-SDI) Output
Audio I/O	2x XLR 3-Pin Input (+48 V Phantom Power) 1x 1/8" / 3.5 mm TRRS Headphone/Mic Microphone Input 1x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone Output
Power I/O	1x LEMO 2-Pin Input
Other I/O	1x USB-C 1x RJ45 (Gigabit Ethernet) Control 1x LEMO 5-Pin (Timecode) Control Input/Output 1x LEMO 6-Pin Control 1x LEMO 7-Pin (RS-232) Control 1x Fischer 3-Pin Control 2x Pogo 10-Pin Control Input/Output
Wireless	Wi-Fi
Mobile App Compatible	Yes: Android & iOS App Name: Kinefinity
Global Positioning (GPS, GLONASS, etc.)	No

Viewfinder

Type	Optional, Not Included

Power

Battery	V-Mount
Power Consumption	32 W

Environmental

Operating Conditions

32 to 104°F / 0 to 40°C

General

Tripod Mount	1/4"-20 Female 3/8"-16 Female
Accessory Mounting Thread	2x 1/4"-20
Materials	Aluminum
Dimensions (W x H x D)	4.9 x 4.3 x 4.2" / 124 x 109 x 106 mm
Weight	3.6 lb / 1.6 kg (Body Only)

Packaging Info

Package Weight	7 lb
Box Dimensions (LxWxH)	10.75 x 8.75 x 6.7"
