Description

MAVO Edge 8K, a brand-new large-format 8K cine camera, 8K 70P CMOS imaging sensor and cutting-edge image processing engine with whole-new carbon fiber body, allowing cinematographers to create without boundaries. It features 640/2560 dual native ISO, and shoots 8K Wide at up to 70fps and latitude up to 14+ stops. Even at open gate 3:2, surprisingly this beast can still deliver a gorgeous image of 45 million pixels at up to 45 frames per second. Not just getting highest resolution for motion pictures, MAVO Edge 8K also ensures natural color, pleasing skin tones, low noise, high dynamic range and stunning details in organic and delicate way, cinematically.

Featuring internal motorized full-spectrum e-ND, more industry-standard ports and dual SSD media slots, Kinefinity brings Apple ProRes4444/XQ to the MAVO Edge as an in-camera codec to make the workflow easier. MAVO Edge 8K also provides dual 1.5G/3G SDI outputs with metadata and audio transmission, to enhance the compatibility with third-party accessories like external recorders and 1.5G monitors. To fully get to know MAVO Edge 8K’s performance, features and specification, please visit MAVO Edge 8K.

Native mount as KineMOUNT: please choose the mounting adapters for your lenses (No adapter is included in MAVO Edge 8K package).

Considerations when choosing your MAVO Edge

Configure yours on the next step.

Mount

EF/E/PL/LPL

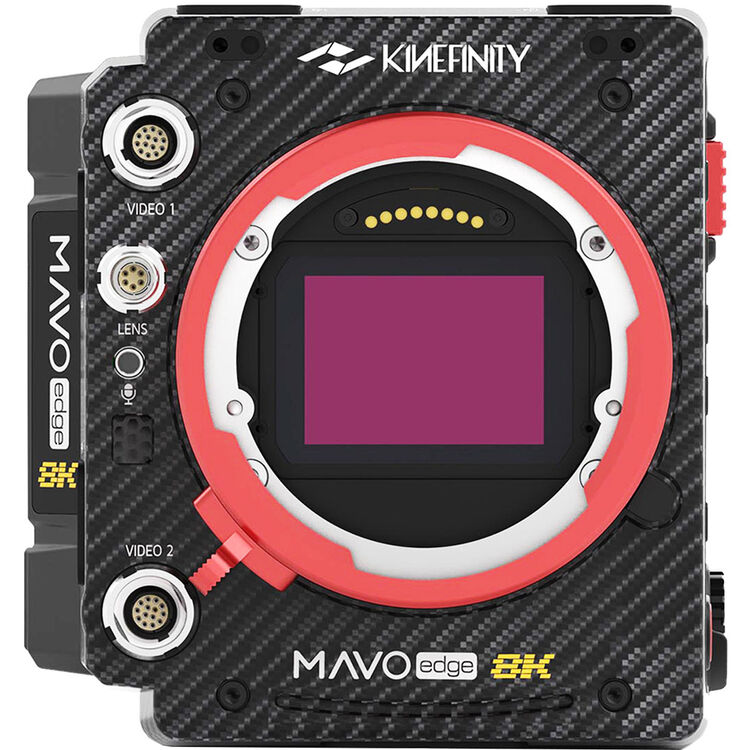

The camera’s native KineMOUNT needs to be installed with an adapter mount, such as EF, passive E, PL and the latest LPL mount, before the lens can be mounted for shooting.

Thanks to the innovative KineMOUNT, these adapter mounts do not require screws and can be quickly and reliably attached to the KineMOUNT. This enables almost all cine lenses and EF-mount photographic lenses to be seamlessly paired with MAVO Edge.

SSD

KineMAG Nano 1TB SSD/ KineMAG Nano Body

KineMAG Nano 1TB is based on NVMe M.2 2280 SSD with writing speed up to 10Gbps.

Kinefinity also provides a KineMAG Nano Body allowing users to install third-party NVMe M.2 2280 SSDs, which provides more storage possibilities.

Both KineMAG Nano 1TB and the body is equipped with a robust camera port as well as a universal USB-C port.

Monitor

KineMON 5U2/7U2 touch screen Monitor

MAVO Edge features two dedicated video ports, matching Kinefinity’s native Micro OLED full HD viewfinder and 2000 nit 5” and 7” monitors that support touch.

The native monitor/EVF based on the DirectClear efficient platform not only brings ultra-low latency, accurate color and fast response monitoring experience, but the ultra-bright 5-inch and 7-inch monitors also bring touch screen to directly adjust parameters.

Power

KineBAT V-mount battery, GripBAT 2S/4S

The MAVO Edge 6K offers an innovative hybrid battery plate, supports standard 14.8V V-mount and BP-U type batteries such as KineBAT PD 99w/200w and GripBAT 4S to meet the setups that require handheld or gimbal shots.

Moreover, with UPS Baseplate from KineKit-Edge designed by Movcam and NP-F550 type batteries such as GripBAT 2S can provide UPS to the camera.

Key Features

8K 3:2 Full-Frame CMOS Sensor
8192 x 3384 Recording up to 70 fps
In-Camera Recording of 8K ProRes 4444 XQ
High-Speed Recording up to 280 fps in 2K
14+ Stops Dynamic Range
e-ND Darkens by 2 to 7 Stops
Camera Compensates for e-ND Color Shift
12 ms Low Rolling Shutter Effect
Wireless Control & Monitoring Options
Adapts to PL, LPL, Active EF & Passive E

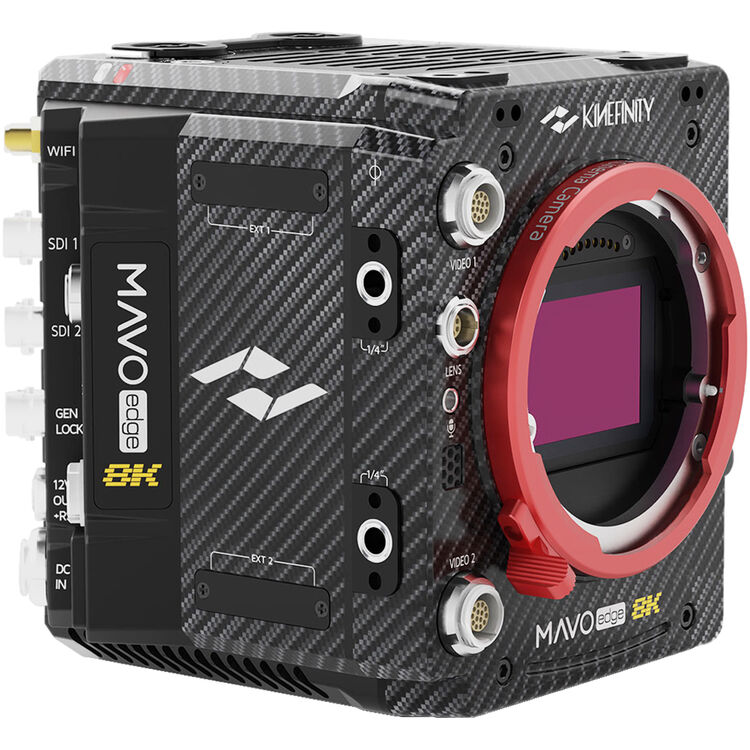

Kinefinity MAVO Edge 8K KineMount Overview

Illuminate the big screen in mesmerizing detail and color depth with the MAVO Edge 8K from Kinefinity, a carbon fiber full-frame cinema camera capable of industry-leading ProRes 4444 XQ internal recording. Capture 45-megapixel images at 45 fps to maximize resolution or freeze time with 2K/280 fps slow motion. Dual native ISO enables you to shape its 14 stops of dynamic range around either the highlights or lowlights, and its proprietary color science is ready for your 3D LUT.

The rolling shutter scans the sensor in only 12 ms, protecting even the quickest motions from distortion. Choose the oversampled 4K setting to preserve the framing and depth of field of a given lens or digitally crop to boost its magnification. A broad selection of glass is at your disposal using the manufacturer's lens adapters (available separately). The MAVO Edge 8K features a full complement of connections and power options for optimal integration with professional equipment and workflows.

Spectacular 8K Sensor

Shooting open gate in 3:2, you'll utilize the full 8192 x 5288, 44.7-megapixel sensor for outstanding detail. Cropping to 8K 16:9 will allow you to overcrank up to 70 fps. For breathtaking slow motion, 2K/280 fps opens the door for incredible macro shots, flames that dance under a chef's pan, or wildlife documentary images.

Image Quality

The MAVO 8K Edge's in-camera recording of ProRes 4444 XQ enables maximum flexibility in color grading. KineLOG3, its proprietary color science, is primed for applying a 3D LUT to attain a specific aesthetic.

Dual Native ISO

In darker scenes, the cleanest blacks may well come from the lower end of the 2560 high base ISO. When shooting a waterfall's mist or sculptural clouds, consider using the higher ISOs in the 640 low base to attain the maximum dynamic range in the highlights.

Electronic ND Filter

The motorized e-ND enables precise control over the exposure without affecting the depth of field or motion smoothness in your footage. Continuous tuning of the density from 0.6 to 2.1 translates to the ability to make detailed reductions in exposure between 2 and 7 stops. Color adjustments are automatically applied to the footage to compensate for the subtle spectrum shift caused by the e-ND.

Lens Mount

The proprietary KineMOUNT is designed to be used with a wide range of adapters (available separately). Choose from a wide selection of lenses with these PL, LPL, active EF, and passive E mount adapters.

Power

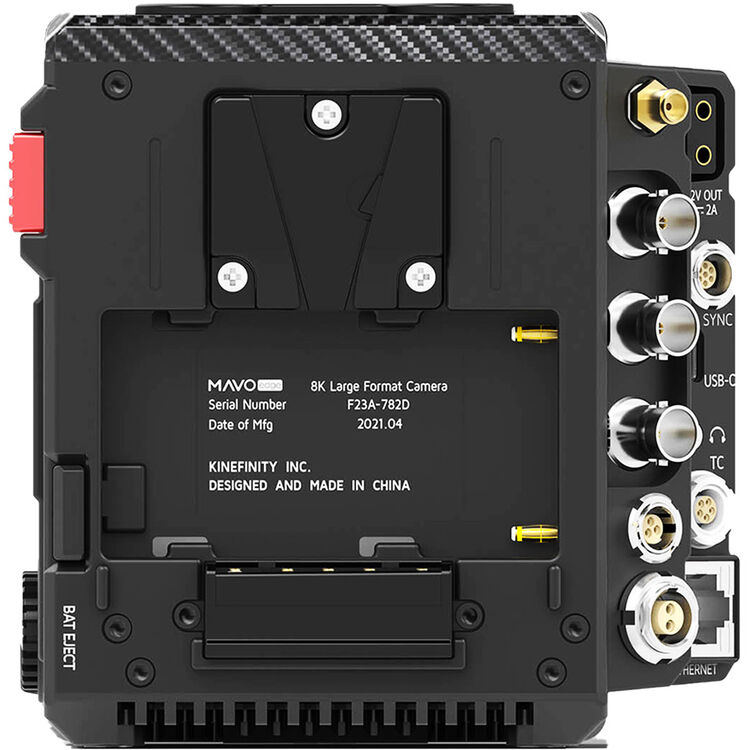

This body accepts plenty of power options, with mounts for V-mount or BP-U batteries, as well as a DC input and a baseplate option for UPS power from two NP-F550 via the KineKIT for MAVO Edge (available separately).

Wireless and Remote Interfaces

Control the camera remotely from the Kinefinity App, accessible via local Wi-Fi or the RJ45 Gigabit Ethernet port. Stream to the web with its built-in 5G connectivity.

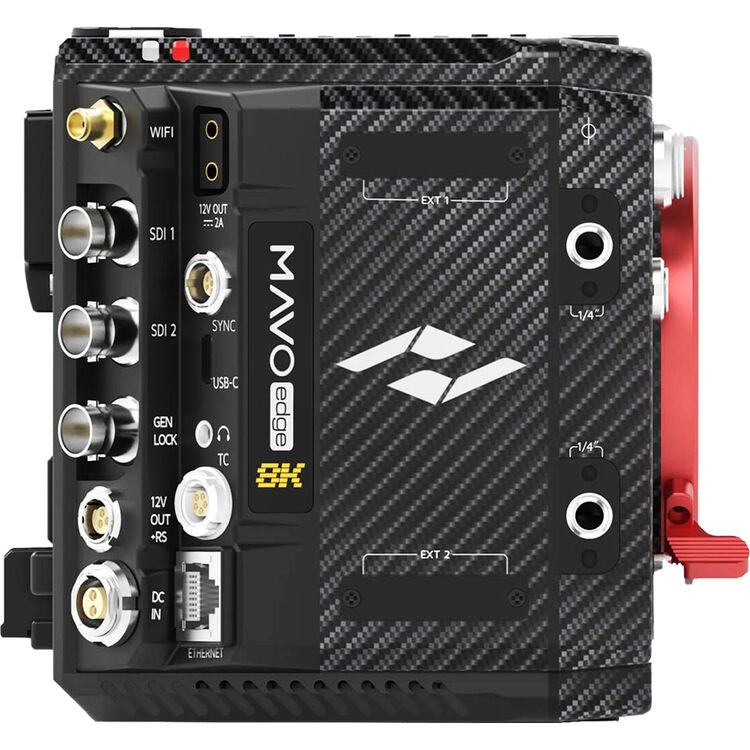

Monitoring and Connectivity

Utilize the camera's extensive connectivity for uncompromising synchronization, control, audio integration, storage, and more.

Dual SSD slots with fast NVMe M.2-based KineMAG Nano
Two XLR ports with 48V phantom power for pro external microphones
3.5mm mic input and headphone output
Dual 1.5G-/3G-SDI monitoring outputs with metadata and audio embedded
Timecode input and output
Genlock sync via BNC
Sync with RS-232 and Kinefinity camera sync
Record-trigger input with power output

UPC: 850037719006

Kinefinity MAVO Edge 8K KineMount Specs

Key Specs

Lens Mount	KineMOUNT
Image Sensor	36 x 24 mm (Full-Frame) CMOS
Sensor Resolution	Effective: 44.7 Megapixel (8192 x 5288)
Image Stabilization	No
ISO/Gain Sensitivity	Native: 250 to 800 (800 to 16,000 Extended)
Internal Recording	ProRes 4444/MOV/ProRes 422LT/ProRes 422 HQ/ProRes 422/ProRes 4444XQ 8192 x 5288 from 2 to 45 fps 7168 x 4760 from 2 to 50 fps 6400 x 4760 from 2 to 50 fps 5760 x 4760 from 2 to 50 fps 8192 x 4320 from 2 to 55 fps 7680 x 4320 from 2 to 55 fps 6144 x 3840 from 2 to 59.94 fps 5120 x 3840 from 2 to 59.94 fps 4864 x 3840 from 2 to 59.94 fps 8192 x 3384 from 2 to 70 fps 6144 x 3240 from 2 to 72 fps 5760 x 3240 from 2 to 72 fps 7680 x 3200 from 2 to 72 fps 4864 x 3176 from 2 to 50 fps 4224 x 3176 from 2 to 50 fps 3840 x 3176 from 2 to 50 fps 5120 x 2700 from 2 to 85 fps 4096 x 2644 from 2 to 45 fps 6144 x 2560 from 2 to 92 fps 4096 x 2560 from 2 to 59.94 fps 3456 x 2560 from 2 to 59.94 fps 3072 x 2560 from 2 to 59.94 fps 5120 x 2160 from 2 to 108 fps 4096 x 2160 from 2 to 108 fps 3840 x 2160 from 2 to 108 fps 4096 x 1692 from 2 to 130 fps 3840 x 1600 from 2 to 145 fps 2048 x 1080p from 2 to 215 fps 1920 x 1080p from 2 to 215 fps 2048 x 800 from 2 to 268 fps 1920 x 800 from 2 to 286 fps
Video Output	SDI/BNC 8192 x 5288 7168 x 4760 6400 x 4760 5760 x 4760 8192 x 4320 7680 x 4320 6144 x 3840 5120 x 3840 4864 x 3840 8192 x 3384 6144 x 3240 5760 x 3240 7680 x 3200 4864 x 3176 4224 x 3176 3840 x 3176 5120 x 2700 4096 x 2644 6144 x 2560 4096 x 2560 3456 x 2560 3072 x 2560 5120 x 2160 4096 x 2160 3840 x 2160 3840 x 1600 2048 x 1080p 1920 x 1080p 2048 x 800 1920 x 800
Media/Memory Card Slot	Dual Slot: KineMAG Nano SSD
Mobile App Compatible	No

Imaging

Lens Mount	KineMOUNT
Lens Communication	Yes
Image Sensor	36 x 24 mm (Full-Frame) CMOS
Sensor Resolution	Effective: 44.7 Megapixel (8192 x 5288)
Image Stabilization	No
Built-In ND Filter	Mechanical Filter Wheel with Clear ND Filters and a 0.6 to 2.1 Stop Electronic ND Filter
Internal Filter Holder	Yes
Capture Type	Video Only

Exposure Control

Shutter Type	Electronic Rolling Shutter
Shutter Angle	0.7 to 358°
ISO/Gain Sensitivity	Native: 250 to 800 (800 to 16,000 Extended)
Advertised Dynamic Range	14 Stops

Focus

Focus Mode

Automatic, Manual Focus

Video Capture

Internal Recording	ProRes 4444/MOV/ProRes 422LT/ProRes 422 HQ/ProRes 422/ProRes 4444XQ 8192 x 5288 from 2 to 45 fps 7168 x 4760 from 2 to 50 fps 6400 x 4760 from 2 to 50 fps 5760 x 4760 from 2 to 50 fps 8192 x 4320 from 2 to 55 fps 7680 x 4320 from 2 to 55 fps 6144 x 3840 from 2 to 59.94 fps 5120 x 3840 from 2 to 59.94 fps 4864 x 3840 from 2 to 59.94 fps 8192 x 3384 from 2 to 70 fps 6144 x 3240 from 2 to 72 fps 5760 x 3240 from 2 to 72 fps 7680 x 3200 from 2 to 72 fps 4864 x 3176 from 2 to 50 fps 4224 x 3176 from 2 to 50 fps 3840 x 3176 from 2 to 50 fps 5120 x 2700 from 2 to 85 fps 4096 x 2644 from 2 to 45 fps 6144 x 2560 from 2 to 92 fps 4096 x 2560 from 2 to 59.94 fps 3456 x 2560 from 2 to 59.94 fps 3072 x 2560 from 2 to 59.94 fps 5120 x 2160 from 2 to 108 fps 4096 x 2160 from 2 to 108 fps 3840 x 2160 from 2 to 108 fps 4096 x 1692 from 2 to 130 fps 3840 x 1600 from 2 to 145 fps 2048 x 1080p from 2 to 215 fps 1920 x 1080p from 2 to 215 fps 2048 x 800 from 2 to 268 fps 1920 x 800 from 2 to 286 fps
Video Output	SDI/BNC 8192 x 5288 7168 x 4760 6400 x 4760 5760 x 4760 8192 x 4320 7680 x 4320 6144 x 3840 5120 x 3840 4864 x 3840 8192 x 3384 6144 x 3240 5760 x 3240 7680 x 3200 4864 x 3176 4224 x 3176 3840 x 3176 5120 x 2700 4096 x 2644 6144 x 2560 4096 x 2560 3456 x 2560 3072 x 2560 5120 x 2160 4096 x 2160 3840 x 2160 3840 x 1600 2048 x 1080p 1920 x 1080p 2048 x 800 1920 x 800
Fast-/Slow-Motion Support	Yes
Gamma Curve	Rec709
Built-In Microphone	Mono
Audio Recording	4-Channel at 48 kHz via LPCM Audio

Interface

Media/Memory Card Slot	Dual Slot: KineMAG Nano SSD
Internal Storage	No
Audio I/O	2x XLR 3-Pin Input 1x 1/8" / 3.5 mm TRS Stereo Input 1x 1/8" / 3.5 mm TS Mono Output
Power I/O	1x Proprietary (11 to 19VDC up to 3 A) Input
Other I/O	1x RJ45 (Gigabit Ethernet) Video/Data/Control Input/Output 1x LEMO 5-Pin (Timecode) Data Input/Output 1x BNC (Genlock) Video 1x LEMO 6-Pin (RS-232) Control 1x LEMO 7-Pin (RS-232) 1x Fischer 3-Pin Input
Wireless	Wi-Fi 5 (802.11ac)
Mobile App Compatible	No
Global Positioning (GPS, GLONASS, etc.)	No

Viewfinder

Type	Optional, Not Included

Environmental

Operating Conditions

32 to 72°F / 0 to 40°C

General

Materials	Aluminum, Carbon Fiber
Dimensions (W x H x D)	4.9 x 4.3 x 4.2" / 124 x 109 x 106 mm (Without Protrusions)
Weight	3.3 lb / 1.5 kg (Body Only)

Packaging Info

Package Weight	7 lb
Box Dimensions (LxWxH)	11.9 x 10.5 x 9.8"
