Compatible with All Cine Cameras

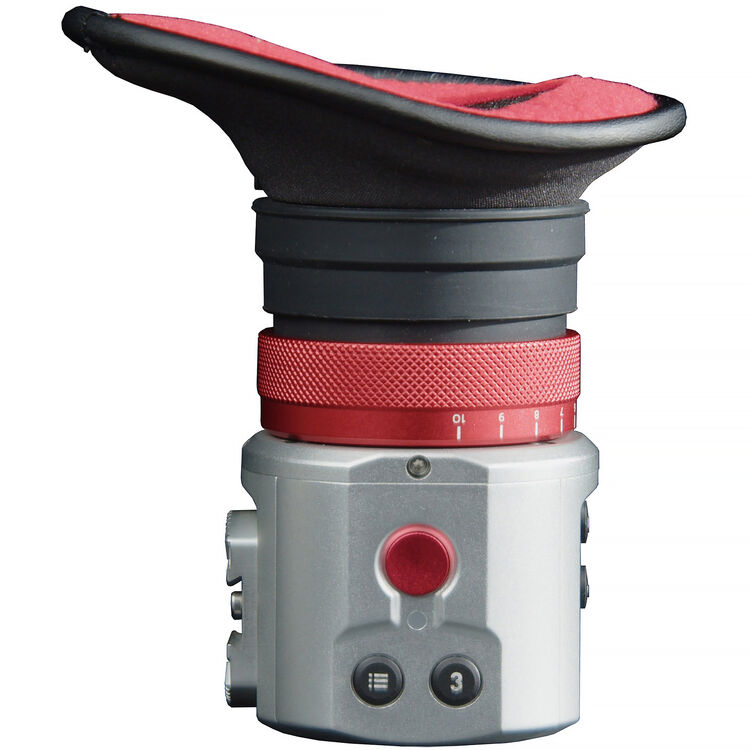

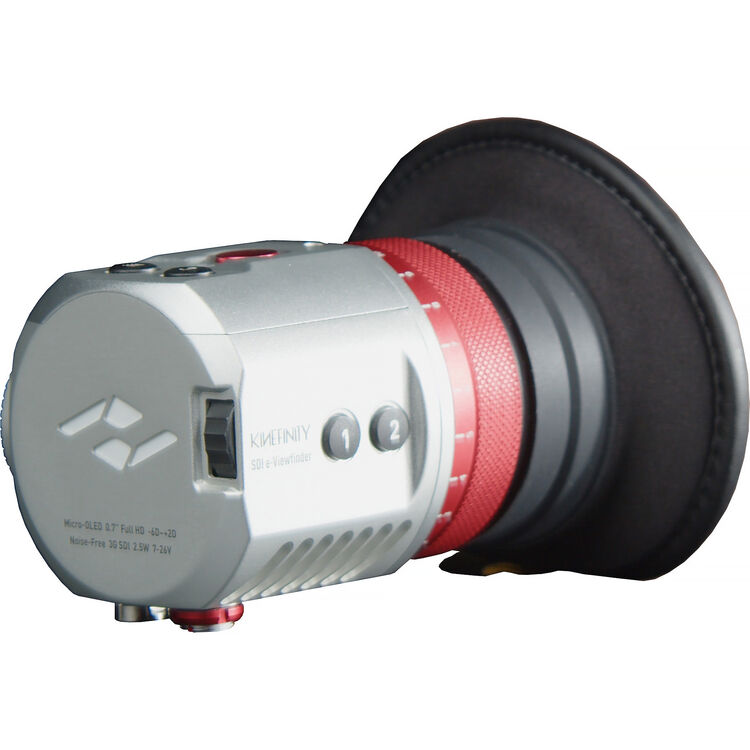

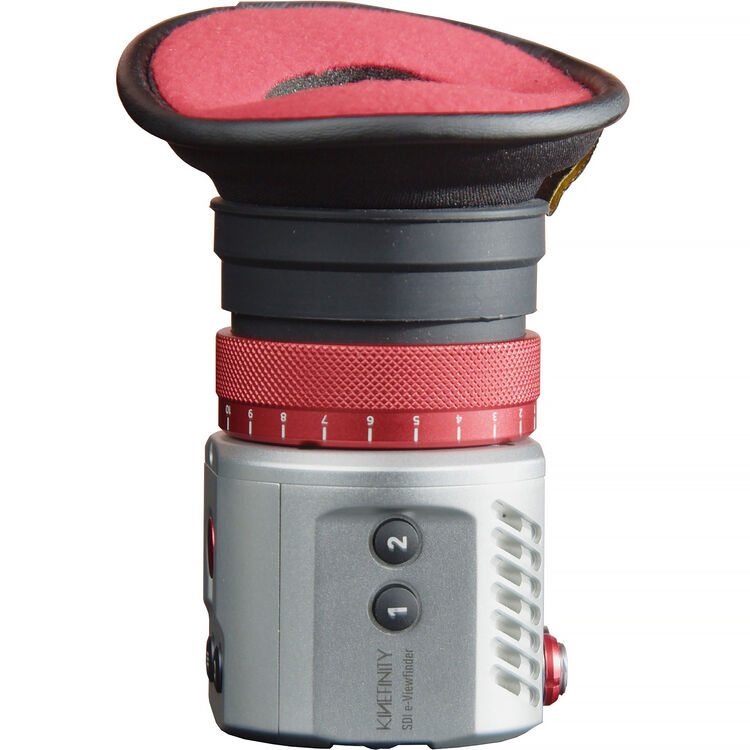

Ultralight and streamlined, the cyber (silver) EAGLE SDI e-Viewfinder from Kinefinity features an SDI video input compatible with cine-style cameras. It features a 0.7" 1080p Micro-OLED screen, zero-delay viewing, multiple imaging tools, and 10-bit processing for optimal image output.
3G/HD-SDI Support
The EAGLE SDI e-Viewfinder's BNC input supports 3G- and HD-SDI video signals, offering compatibility with cine-style cameras in 1080p and 1080i at frame rates ranging from 23.97 to 60 fps.
Micro-OLED Screen
The 1080p resolution micro-OLED screen produces exceptional imagery using 10-bit color and 10,000:1 contrast in a 16:9 aspect ratio.
Imaging Tools
Multiple imaging tools include focus peaking, magnification, waveform, histogram, false color, anamorphic de-squeeze, frame markers, overlay clear, and image flip and rotation.
Adjustable Diopter
The adjustable diopter has a range of -6 to +2, providing eyeglass users with correct eyesight correction.
Kinefinity EAGLE SDI SpecsKey Specs
| Panel Type |
Micro-OLED
|
| Screen Resolution |
1920 x 1080
|
| Diopter Correction |
-6.0 to +2.0
|
| Inputs/Outputs |
1x BNC (3G-SDI) Video Input
1x LEMO 5-Pin Power Input |
Display
| Panel Type |
Micro-OLED
|
| Display Size |
0.7" / 1.8 cm
|
| Screen Resolution |
1920 x 1080
|
| Aspect Ratio |
19:9
|
| Contrast Ratio |
10,000:1
|
| Color Support |
1.07 Billion Colors (10-Bit)
|
| Image Controls |
False Color, Focus Peaking, Histogram, Image Flip, Image Rotate, RGB Parade, Screen Markers, Waveform, Zebra
|
Optics
| Diopter Correction |
-6.0 to +2.0
|
| Field of View |
33°
|
Inputs / Outputs
| Inputs/Outputs |
1x BNC (3G-SDI) Video Input
1x LEMO 5-Pin Power Input |
| Video Format |
SDI (10-Bit)
1080p: 60/59.94/50/47.95/30/29.97/25/24/23.98 1080PsF: 29.97/25/24/23.98 1080i: 60/59.94 |
| Power Consumption |
5 W
|
General
| Tripod/Accessory Mounting |
Right
Rosette with 1/4"-20 Female |
| Material of Construction |
Aluminum, Glass, Steel
|
| Dimensions |
4.1 x 2.4 x 2.3" / 105 x 62 x 58 mm
|
| Weight |
12.28 oz / 348.00 g
|
