Kinefinity VISTA Full-Frame 6K Open Gate Digital Cinema Camera (Sony E)

Brand: kinefinity
Product Code: A011-001-02
Availability: In Stock

$3,389.00

Description
Reviews (0)

Key Features

6K Full-Frame Open Gate 3:2 CMOS Sensor
Up to 6K50 FF, UHD 4K100 Super 35 Video
ProRes 422 HQ up to 6K50, UHD 4K120
Sony E Mount, 14-Stop Dynamic Range
4" 1080p OLED Touchscreen
OLPF UV & IR Cut, 10-Bit H.265 Recording
KineLOG3, Built-In & Custom LUTs
Built-In 220GB SSD
Single CFexpress Type B Card Slot
Dual Internal & External Recording

Compact Full-Frame 6K Digital Cinema Camera

Offering full-frame performance in a compact, more affordable form, the Sony E-mount VISTA Full-Frame Open Gate 6K Digital Cinema Camera from Kinefinity supports up to 6K50 frame rates in full frame and up to UHD 4K100 in Super 35. It comes with a user-interchangeable Sony E mount and features a flip-out 4" OLED touchscreen display, assignable buttons, OLPF filter, and flexible media options.

CMOS Image Sensor

The full frame, 6K CMOS image sensor supports up to 14 stops of dynamic range for rich, nuanced imagery. An integrated OLPF (optical low-pass filter) includes UV and IR cut filters for blocking unwanted wavelengths.

Flexible Recording Media

The VISTA FF 6K camera offers flexible recording options, including a built-in 220GB SSD card.
It also provides a single CFexpress Type B card slot.
Dual recording is supported using the internal storage and the card slot.

Highlights

Full-frame 6K Open Gate — the whole sensor is your image, with native anamorphic up to 19 optical formats.
KineLOG3 color science — built-in 709 & Neutral 3D LUTs, loadable and burn-in monitoring LUTs.
Codec freedom — ProRes 422HQ plus H.265 Max / High / Normal.
220GB built in — record the moment you power up, no media to manage.
4-inch 6:5 Retina OLED — shows the full 3:2 Open Gate frame with room for status & UI.
~3 hours per charge — single NP-F550-compatible battery, just 7.5W.
Fully connected — dual full-size HDMI, dual USB-C (power + data), Wi-Fi & Bluetooth.
610g · 101×87×65mm — pocket footprint, CNC aircraft aluminum.

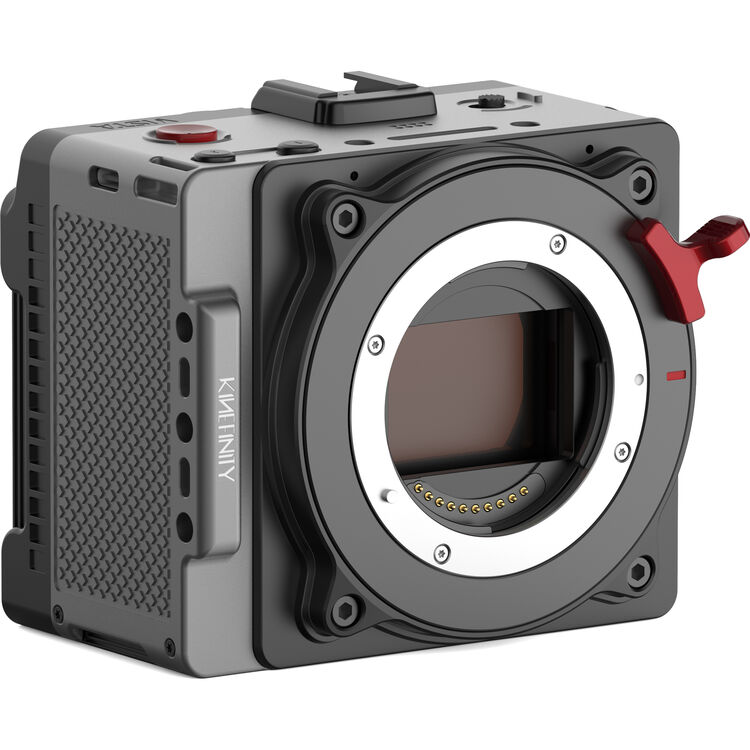

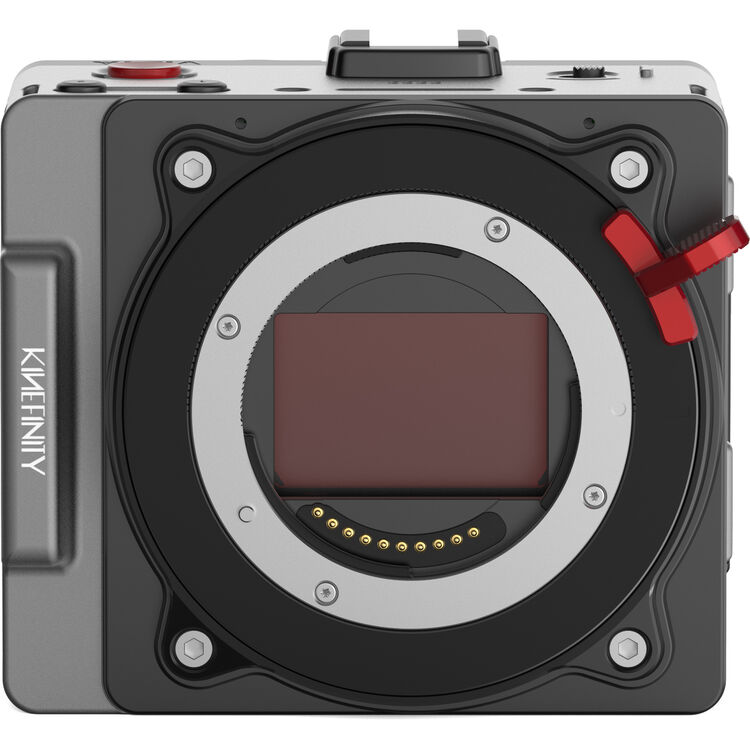

Interchangeable Lens Mount

This VISTA FF camera comes with an interchangeable Kinemount that can be swapped out by the user for separately available ARRI PL and Sony E lens mounts. The flexibility gives you the option to use a wide range of still photography and cine-style lenses.

Resolution, Frame Rates, and Color

Recording options include ProRes 422 HQ up to 6K50 and UHD 4K120 for creating beautiful slow-motion sequences. Color science features include KineLOG3, built-in Rec. 709, and neutral LUTs. Use custom LUTs for monitoring or for baking in your color palette.

Interfaces

One of the two USB-C ports provides a direct link for live streaming, monitoring, and full camera control via your iPhone and the Kine app. It can also be used for UAC wireless microphone input and firmware updates.
Use the second USB-C port to export video directly from the internal SSD or as a webcam for an iPhone, Mac, or PC host.
Use either USB-C port to provide a 5V, 2A, non-PD output for powering a Kinefinity EAGLE e-viewfinder or mobile device.
Built-in Wi-Fi 6 with an internal antenna supports dual-band 2.4/5.8 GHz for streaming and app control.
Integrated Bluetooth supports wireless remote control.

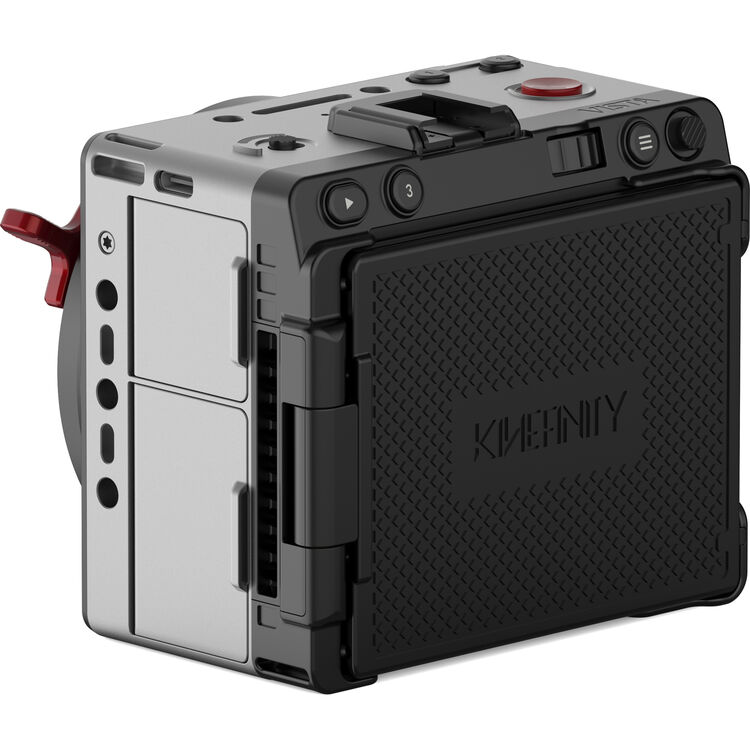

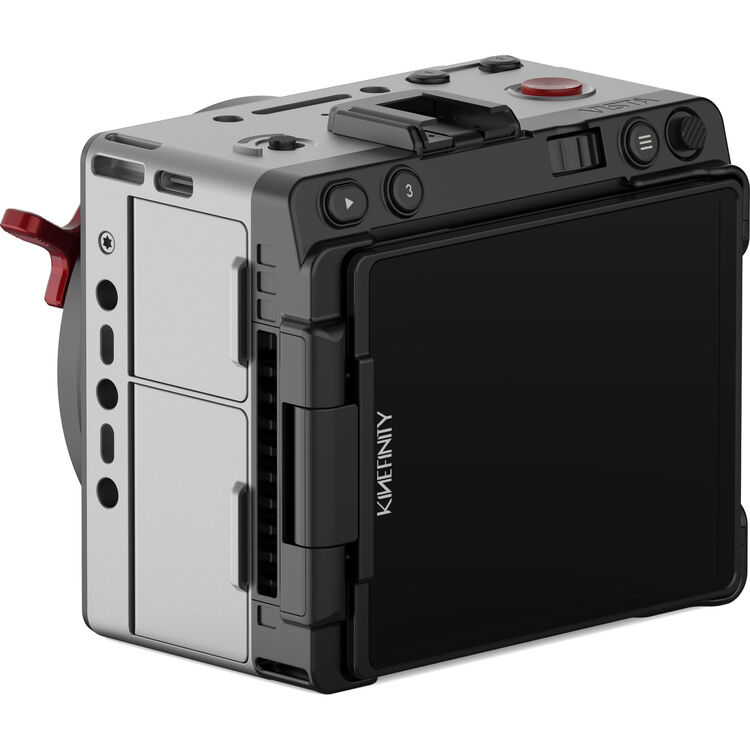

Touchscreen

Unlike earlier Kinefinity models, the VISTA FF 6K camera features an integrated 4" OLED touchscreen with 700 cd/m² brightness.
This screen flips out and rotates 360° for optimal viewing.
It offers tactile Record, Playback, and Menu buttons, 5-way navigation, and three customizable function buttons.

Package Contents

Kinefinity VISTA Full-Frame 6K Open Gate Digital Cinema Camerax1

VISTA body (choose one native mount — KineMOUNT, Active E, or Active PL)× 1

Power cable (USB-C to 2-pin push-pull locking connector)× 1

USB-C cable (USB-C to USB-C, 50cm)× 1

Kinefinity VISTA

Key Specs

Lens Mount	Interchangeable Mount
Image Sensor	Full-Frame
Effective Sensor Resolution	Not Specified by Manufacturer
Image Stabilization	No
ISO/Gain Sensitivity	Dual Base: 800 / 5120 Native: 250 to 2560 (3200 to 20,480 Extended)
Max Recording Modes	Up to UHD 4K up to 100 fps
Max Video Output	via HDMI / USB Up to 6K
Media/Memory Card Slot	Single Slot: CFexpress Type B
Mobile App Compatible	Yes: iOS Only Functionality: Remote Control, View Live Feed
Battery	Sony L-Series

Imaging

Lens Mount	Interchangeable Mount with Included ARRI PL
Lens Communication	Yes
Image Sensor	36 x 24 mm (Full-Frame) CMOS
Sensor Resolution	Not Specified by Manufacturer
Image Stabilization	No
Built-In ND Filter	No
Built-In CC Filter	No
Internal Filter Holder	No
Capture Type	Video Only

Exposure Control

Shutter Type	Electronic Rolling Shutter
Shutter Angle	0.7 to 358°
ISO/Gain Sensitivity	Dual Base: 800 / 5120 Native: 250 to 2560 (3200 to 20,480 Extended)
Signal-to-Noise Ratio	Not Specified by Manufacturer
Advertised Dynamic Range	14 Stops

Focus

Focus Mode

Automatic, Manual Focus

Video Capture

Internal Recording	H.265/ProRes 422/ProRes 422 HQ/ProRes 422LT 10-Bit 3840 x 2160 up to 100 fps 3840 x 2160 up to 120 fps *Sensor Crops During Recording
Video Output	via HDMI / USB 6016 x 3984 3840 x 2160 up to 120 fps
Fast-/Slow-Motion Support	Yes
Gamma Curve	KineLOG3, Rec709
Built-In Microphone	Stereo
Audio Recording	2-Channel, 16-Bit at 48 kHz via LPCM Audio
IP Streaming	Yes

Interface

Media/Memory Card Slot	Single Slot: CFexpress Type B
Internal Storage	220 GB
Video I/O	2x HDMI 2.0 Output 1x USB-C 2.0 Output
Audio I/O	1x 1/8" / 3.5 mm TRS Stereo Microphone Input 1x 1/8" / 3.5 mm TRS Stereo Headphone Output
Power I/O	1x LEMO 2-Pin (10 to 20VDC) Input 1x LEMO 9-Pin Output
Other I/O	1x USB-C (USB 2.0) Input (Shared with Power Input) 1x USB-C Viewfinder Output (Shared with Video Output)
Wireless	Wi-Fi 6 (802.11ax) *Built-In Bluetooth
Mobile App Compatible	Yes: iOS Only App Name: Kine Functionality: Remote Control, View Live Feed
Global Positioning (GPS, GLONASS, etc.)	No

Monitor

Display Type	Articulating 4" Touchscreen OLED
Resolution	1920 x 1080

Viewfinder

Type	Optional, Not Included

Power

Battery	Sony L-Series
Power Consumption	7.5 W

Environmental

Operating Conditions

32 to 104°F / 0 to 40°C

General

Shoe Mount	1x Cold Shoe
Tripod Mount	1/4"-20 Female 3/8"-16 Female
Accessory Mounting Thread	12x 1/4"-20
Materials	Aluminum
Dimensions (W x H x D)	4 x 3.4 x 2.6" / 101 x 87 x 65 mm (Without Protrusions)
Weight	1 lb / 600 g (Body Only)
